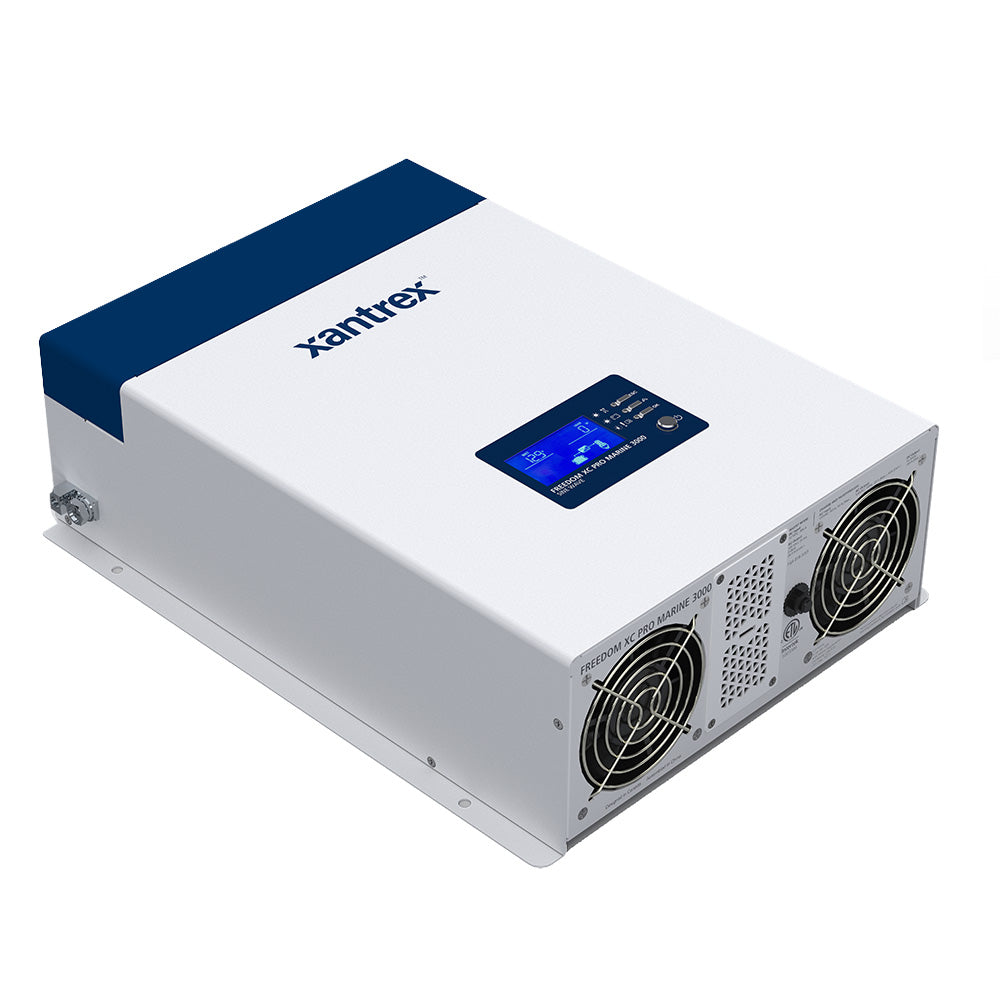

Xantrex Freedom XC Pro 3000 Inverter/Charger - 3000W - 150A - 120V - 12V
Xantrex Freedom XC Pro 3000 Inverter/Charger - 3000W - 150A - 120V - 12V

Xantrex Freedom XC Pro 3000 Inverter/Charger - 3000W - 150A - 120V - 12V MPN - 818-3010

$2,133.18
$2,346.50
$2,133.18

MPN : 818-3010

SKU: 84512
Availability: In stock
Product type: Automotive/RV | Inverters,Electrical | Charger/Inverter Combos
Please hurry! Only 14 left in stock
Subtotal: $2,133.18
10 customers are viewing this product
3000 W continuous at 40 °C, 6000 W surge true sine wave inverter
Up to 150 A battery charger with lithium-ion support and Power Share
50 A surge / 40 A continuous transfer relay; RV-C, NMEA 2000 and J1939
Xantrex Freedom XC Pro 3000 Inverter/Charger - 3000W - 150A - 120V - 12V

Xantrex Freedom XC Pro 3000 Inverter/Charger - 3000W - 150A - 120V - 12V MPN - 818-3010

$2,346.50 $2,133.18
Xantrex Freedom XC Pro 3000 Inverter/Charger - 3000W - 150A - 120V - 12V

Xantrex Freedom XC Pro 3000 Inverter/Charger - 3000W - 150A - 120V - 12V MPN - 818-3010

$2,346.50 $2,133.18

    The Xantrex Freedom XC Pro 3000, MPN 818-3010, is a combined inverter/charger for RVs, boats and work vehicles with larger 12-volt battery banks. As an inverter, it delivers 3000 watts continuous at 40 °C of true sine wave AC, with a 6000-watt surge for up to 5 seconds to start air-conditioner compressors, refrigerators and other motor loads. Output is selectable at 120, 110 or 108 V AC, and 60 or 50 Hz. On shore or generator power, it charges the batteries at up to 150 A. The charger is power-factor corrected and configurable for lithium-ion batteries, and Xantrex states it can charge batteries from as low as 0 V. The store listing also notes battery equalization for flooded batteries and a Power Share function that reduces charge current to keep total AC input within your breaker setting.

    When incoming AC power is present, the transfer relay passes it to connected loads and switches the unit into charge mode. Xantrex rates the relay at 50 A surge and 40 A continuous, with an AC pass-through range of 85–140 V AC. A built-in communications card supports RV-C, NMEA 2000 and J1939, and firmware and settings load through the USB port. Ignition control lets a 12 V DC signal switch the inverter on and off. The DC operating range is 10.1–18.0 V, with 304 A DC nominal current at full inverter load. Xantrex lists 91% peak efficiency and ≥84% at full load. The unit measures 15.4 × 10.8 × 4.9 inches without flanges and weighs 18.6 pounds. Xantrex lists ETL certification to CSA 107.1, UL 458 and the UL 458 Marine Supplement (with drip shield 808-1050), plus ABYC E-11, A-31 and A-32 compliance and FCC Part 15 Class B.

    At full inverter load the XC Pro 3000 draws over 300 A DC, so battery capacity, DC cable size and fusing must be planned from the owner's guide. Confirm that your shore or generator supply can provide up to 25 A of AC input at full charge rate, and configure the charge profile for your battery chemistry. Configuration and monitoring use the optional Bluetooth remote panel (808-0817-02) or the wired remote panel (808-0817-01). For a plug-in GFCI outlet, choose the GFCI built-in model 818-3010-11 or add GFCI option 808-9817.

    Clear Product Details

    Review the 16 oz gel format, specifications and application directions.

    Surface Guidance

    Check fiberglass, gelcoat and finish suitability before use.

    Product Support

    Ask about your surface and stain type before ordering.

    Shipping & Returns

    Review shipping information and return conditions before purchase.

    Installation & Compatibility Guides

    Identify the Charging and Inverting Functions You Need

    The Freedom XC Pro 3000 inverts, charges and transfers AC for larger 12 V systems. Check these six points before you buy.

    1. Confirm 12 V DC Input

      The 818-3010 is a 12-volt model, operating from 10.1 to 18.0 V DC.

    2. Plan for Over 300 A DC

      Full inverter load draws 304 A DC. Size the battery bank, cables and fusing from the owner's guide.

    3. Match the Charge Profile

      Configure the charger for your battery chemistry. Lithium-ion is supported; equalize only flooded batteries that allow it.

    4. Set Power Share

      At full charge rate the charger draws up to 25 A AC. Use Power Share to stay within your shore breaker.

    5. Respect the Transfer Rating

      Keep pass-through loads within the relay's 40 A continuous rating.

    6. Choose Remote, GFCI and Marine Options

      Add a wired or Bluetooth remote, choose 818-3010-11 or kit 808-9817 for a GFCI outlet, and fit drip shield 808-1050 for the marine listing.

    Freedom XC Pro 3000 or Freedom XC Pro 2000?

    Both Freedom XC Pro models combine a true sine wave inverter, a lithium-capable charger, an AC transfer relay and built-in RV-C, NMEA 2000 and J1939 communications. The XC Pro 3000 steps up to 3000 W of inverter output, a charger of up to 150 A and a 40 A continuous transfer relay. It suits larger battery banks and loads such as rooftop air conditioning within its rating. The XC Pro 2000 provides 2000 W, a 100 A charger and a 24 A continuous relay.

    If you only need inverting with transfer and already have a dedicated charger, compare the Xantrex Freedom X 3000 inverter. Choose by whether you need charging, then by inverter output, charger current and transfer capacity.

    Compare Power Options

    Use these collections to compare inverter/chargers, inverters and other RV equipment. A collection link is for browsing and does not confirm compatibility.

    1. Explore Charger/Inverter Combos

      Compare combined inverter/chargers and standalone chargers by charge current, inverter output and battery support.

      Browse Charger/Inverter Combos

    3. Explore Automotive & RV Accessories

      Return to the parent collection to find another product family for your RV, truck or boat project.

      Browse Automotive/RV

    Related Products

    Example product title
    $2,133.18
    $2,346.50
    $2,133.18
    Example product title
    $2,133.18
    $2,346.50
    $2,133.18
    Example product title
    $2,133.18
    $2,346.50
    $2,133.18
    Example product title
    $2,133.18
    $2,346.50
    $2,133.18
    Example product title
    $2,133.18
    $2,346.50
    $2,133.18
    Example product title
    $2,133.18
    $2,346.50
    $2,133.18
    Example product title
    $2,133.18
    $2,346.50
    $2,133.18
    Example product title
    $2,133.18
    $2,346.50
    $2,133.18
    Example product title
    $2,133.18
    $2,346.50
    $2,133.18
    Example product title
    $2,133.18
    $2,346.50
    $2,133.18

    Frequently Asked Questions

    What are the inverter ratings of the Xantrex Freedom XC Pro 3000 (818-3010)?
    Xantrex rates the inverter at 3000 W continuous at 40 °C, with a 6000 W surge for up to 5 seconds.
    How much charging current does it provide?
    Xantrex lists a maximum DC charge current of 150 A.
    Does it support lithium batteries?
    Yes. The charger is configurable for lithium-ion batteries and can charge from as low as 0 V. Configure the charge profile to match your batteries.
    What is the transfer relay rating?
    Xantrex rates the transfer relay at 50 A surge and 40 A continuous, with an 85–140 V AC pass-through range.
    What is Power Share?
    Power Share reduces charge current so that total AC input stays within your shore or generator breaker setting.
    Which communication protocols does it support?
    A built-in communications card supports RV-C, NMEA 2000 and J1939, with a USB port for firmware and settings.
    Is a remote panel included?
    No. Use the optional Bluetooth remote panel (808-0817-02) or wired remote panel (808-0817-01).
    Does the 818-3010 have a GFCI outlet?
    No. It is the hardwire version. Xantrex offers the GFCI built-in model 818-3010-11 and GFCI option kit 808-9817.
