Xantrex Freedom X 3000 Truesine Inverter - 120AC/12DC Hardwire MPN - 817-3000

$1,318.23
$1,450.05
$1,318.23

MPN : 817-3000

SKU: 69555
Availability: In stock
Product type: Automotive/RV | Inverters,Electrical | Inverters
Please hurry! Only 13 left in stock
Subtotal: $1,318.23
10 customers are viewing this product
3000 W continuous at 40 °C, 6000 W surge true sine wave output
12 V DC input to 120 V AC (108/110 V selectable), 60 or 50 Hz
Built-in 30 A AC transfer relay with hardwire quick-connect terminals
Xantrex Freedom X 3000 Truesine Inverter - 120AC/12DC Hardwire

Xantrex Freedom X 3000 Truesine Inverter - 120AC/12DC Hardwire MPN - 817-3000

$1,450.05 $1,318.23
Xantrex Freedom X 3000 Truesine Inverter - 120AC/12DC Hardwire
Xantrex Freedom X 3000 Truesine Inverter - 120AC/12DC Hardwire
Xantrex Freedom X 3000 Truesine Inverter - 120AC/12DC Hardwire
Xantrex Freedom X 3000 Truesine Inverter - 120AC/12DC Hardwire

Xantrex Freedom X 3000 Truesine Inverter - 120AC/12DC Hardwire MPN - 817-3000

$1,450.05 $1,318.23

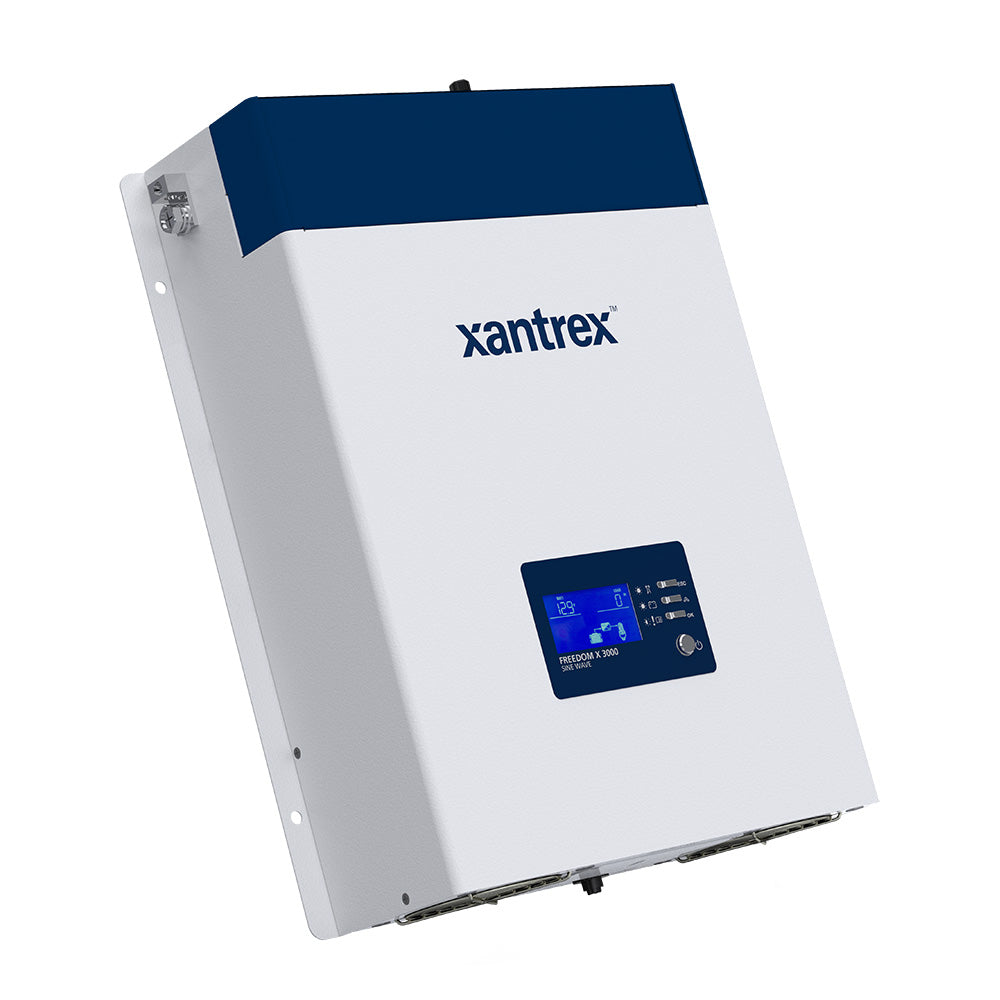

    The Xantrex Freedom X 3000, MPN 817-3000, is the 3000-watt hardwire model in the Freedom X true sine wave inverter range for RVs, trucks, work vehicles and boats with 12-volt battery systems. Xantrex rates it at 3000 watts continuous at 40 °C (104 °F), with a surge of twice the continuous rating (6000 W) for under 5 seconds to help start motor loads. AC output is selectable at 120, 110 or 108 V AC, at 60 Hz or 50 Hz. The Freedom X is an inverter only. It does not charge batteries, so your system needs a separate charger or inverter/charger for recharging.

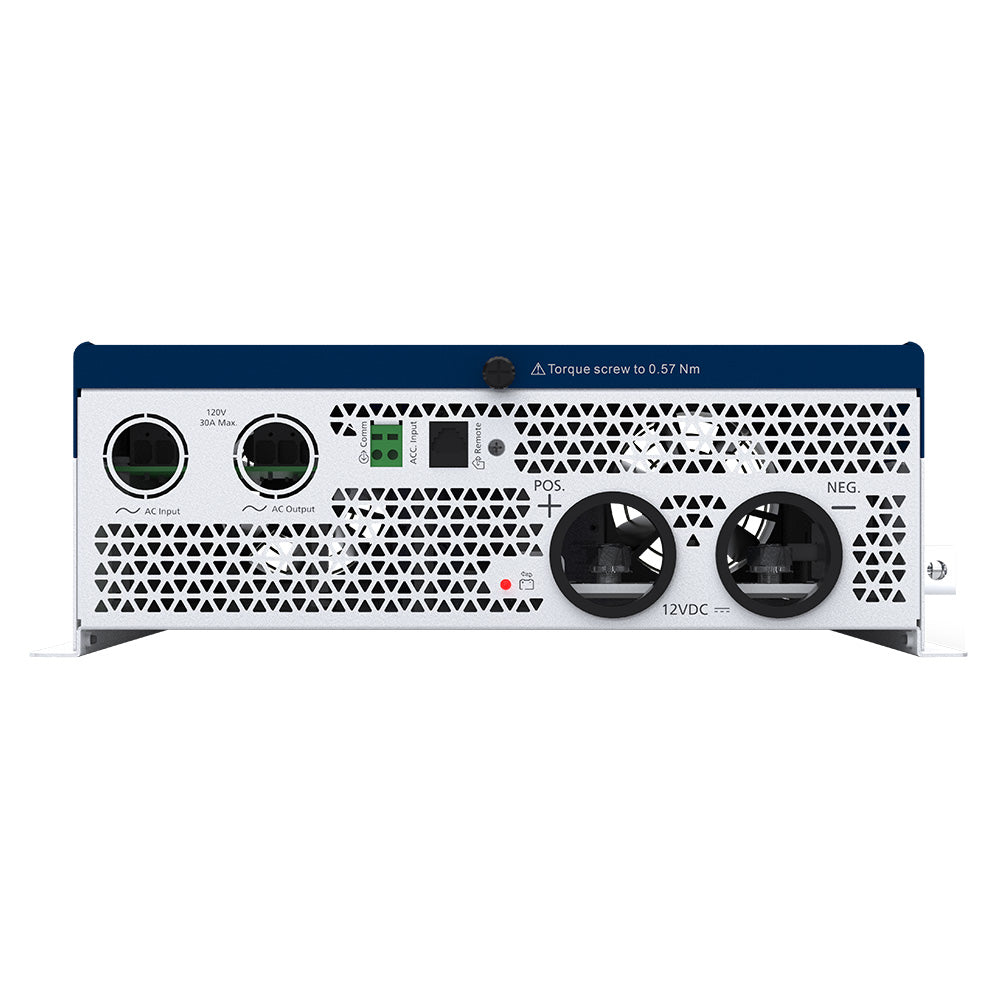

    A built-in 30 A AC transfer relay senses incoming shore or generator power and transfers connected loads to that source, then back to the inverter when it is removed. AC input and output connect through quick-connect terminals in the wiring bay. Xantrex lists a DC operating range up to 18.0 V DC, 288 A DC nominal current at full load, 91% peak efficiency and at least 85% full-load efficiency. Ignition control lets a 12 V DC signal switch the inverter on and off. The housing measures 15.4 × 10.8 × 4.0 inches without flanges and weighs 16.5 pounds, and it operates from -20 to 60 °C, derated above 40 °C. Xantrex lists ETL certification to CSA 107.1 and UL 458, ABYC E-11 and A-31 compliance, and FCC Part 15 Class B.

    At 3000 watts from a 12-volt bank, DC current approaches 300 A. Battery capacity, DC cable size and fusing must be planned from the Freedom X owner's guide. The store listing notes that battery cables and a fuse are not included. A remote panel is optional: Xantrex offers the Freedom X/XC remote panel with 25 ft cable (808-0817-01) and the Bluetooth remote panel (808-0817-02). For a plug-in GFCI outlet, add GFCI option 808-9817, or choose the GFCI built-in model 817-3000-11. Installations that need the UL 458 Marine Supplement listing require drip shield 808-1050.

    Clear Product Details

    Review the 16 oz gel format, specifications and application directions.

    Surface Guidance

    Check fiberglass, gelcoat and finish suitability before use.

    Product Support

    Ask about your surface and stain type before ordering.

    Shipping & Returns

    Review shipping information and return conditions before purchase.

    Installation & Compatibility Guides

    Match the Inverter to the Battery System and Loads

    The Freedom X 3000 is a 12 V, 3000 W true sine wave inverter with a 30 A transfer relay. Check these six points before you buy.

    1. Confirm 12 V DC Input

      The 817-3000 is a 12-volt model. Xantrex offers a separate 24 V Freedom X 2000 (817-2000-21).

    2. Plan for High DC Current

      At full load the inverter draws about 288 A DC. Size the battery bank, cables and fuse from the owner's guide.

    3. Add a Charging Source

      The Freedom X does not charge batteries. Use a separate charger, or compare a Freedom XC inverter/charger.

    4. Use the 30 A Transfer Relay

      Keep transferred loads within the 30 A relay rating, and have a qualified installer wire AC input and output.

    5. Choose Remote and GFCI Options

      Add remote panel 808-0817-01 or Bluetooth panel 808-0817-02, and GFCI option 808-9817 if you need a plug-in outlet.

    6. Add the Drip Shield for Marine Use

      The UL 458 Marine Supplement listing requires drip shield 808-1050, sold separately.

    Freedom X 3000 Inverter or Freedom XC Pro Inverter/Charger?

    The Freedom X 3000 is an inverter with a built-in 30 A transfer relay. It converts battery power to 3000 W of true sine wave AC and switches loads to shore or generator power when available, but it does not recharge the batteries. It suits systems that already have a dedicated charger, or installations where charging comes from solar or an alternator.

    If you also need shore-power charging, compare the Xantrex Freedom XC Pro 3000, a 3000 W inverter/charger with a 150 A charger. Choose by whether you need inverting only or inverting plus charging, then by continuous output and transfer requirements.

    Compare Inverter Options

    Use these collections to compare inverters, inverter/chargers and other RV equipment. A collection link is for browsing and does not confirm compatibility.

    1. Compare Power Inverters

      Browse inverters by DC input, continuous output, waveform and transfer features.

      View Power Inverters

    2. Explore Charger/Inverter Combos

      If you also need battery charging from shore power, review combined units and chargers. This link does not establish a compatible pairing.

      Browse Charger/Inverter Combos

    3. Explore Automotive & RV Accessories

      Return to the parent collection to find another product family for your RV, truck or boat project.

      Browse Automotive/RV

    Related Products

    Example product title
    $1,318.23
    $1,450.05
    $1,318.23
    Example product title
    $1,318.23
    $1,450.05
    $1,318.23
    Example product title
    $1,318.23
    $1,450.05
    $1,318.23
    Example product title
    $1,318.23
    $1,450.05
    $1,318.23
    Example product title
    $1,318.23
    $1,450.05
    $1,318.23
    Example product title
    $1,318.23
    $1,450.05
    $1,318.23
    Example product title
    $1,318.23
    $1,450.05
    $1,318.23
    Example product title
    $1,318.23
    $1,450.05
    $1,318.23
    Example product title
    $1,318.23
    $1,450.05
    $1,318.23
    Example product title
    $1,318.23
    $1,450.05
    $1,318.23

    Frequently Asked Questions

    What are the ratings of the Xantrex Freedom X 3000 (817-3000)?
    Xantrex rates it at 3000 watts continuous at 40 °C, with a 6000-watt surge for under 5 seconds.
    Does the Freedom X 3000 charge batteries?
    No. It is an inverter with a transfer relay. For shore-power charging, use a separate charger or a Freedom XC inverter/charger.
    Does it have a transfer switch?
    Yes. A built-in 30 A AC transfer relay switches connected loads to shore or generator power when present.
    Does the 817-3000 have a GFCI outlet?
    No. This is the hardwire version. Xantrex offers the GFCI built-in model 817-3000-11 and GFCI option kit 808-9817.
    What output voltages and frequencies are available?
    Output is selectable at 120, 110 or 108 V AC, and 60 Hz or 50 Hz.
    Is a remote panel included?
    No. Xantrex offers the Freedom X/XC remote panel with 25 ft cable (808-0817-01) and a Bluetooth remote panel (808-0817-02) separately.
    Are battery cables and a fuse included?
    The store listing states that battery cables and a fuse are not included. Size them from the Freedom X owner's guide.
    Is the Freedom X 3000 approved for marine use?
    Xantrex lists UL 458 certification; the Marine Supplement listing requires drip shield 808-1050. ABYC E-11 and A-31 compliance is also listed.
