Xantrex Freedom XC Pro 2000 Inverter/Charger - 2000W - 100A - 120V - 12V
Xantrex Freedom XC Pro 2000 Inverter/Charger - 2000W - 100A - 120V - 12V

Xantrex Freedom XC Pro 2000 Inverter/Charger - 2000W - 100A - 120V - 12V MPN - 818-2010

$1,592.30
$1,751.53
$1,592.30

MPN : 818-2010

SKU: 84511
Availability: In stock
Product type: Automotive/RV | Inverters,Electrical | Charger/Inverter Combos
Please hurry! Only 4 left in stock
Subtotal: $1,592.30
10 customers are viewing this product
2000 W continuous at 40 °C, 4000 W surge true sine wave inverter
100 A battery charger (5–100 A adjustable) with lithium-ion support
Built-in RV-C, NMEA 2000 and J1939 communications; USB firmware updates
Xantrex Freedom XC Pro 2000 Inverter/Charger - 2000W - 100A - 120V - 12V

Xantrex Freedom XC Pro 2000 Inverter/Charger - 2000W - 100A - 120V - 12V MPN - 818-2010

$1,751.53 $1,592.30
Xantrex Freedom XC Pro 2000 Inverter/Charger - 2000W - 100A - 120V - 12V

Xantrex Freedom XC Pro 2000 Inverter/Charger - 2000W - 100A - 120V - 12V MPN - 818-2010

$1,751.53 $1,592.30

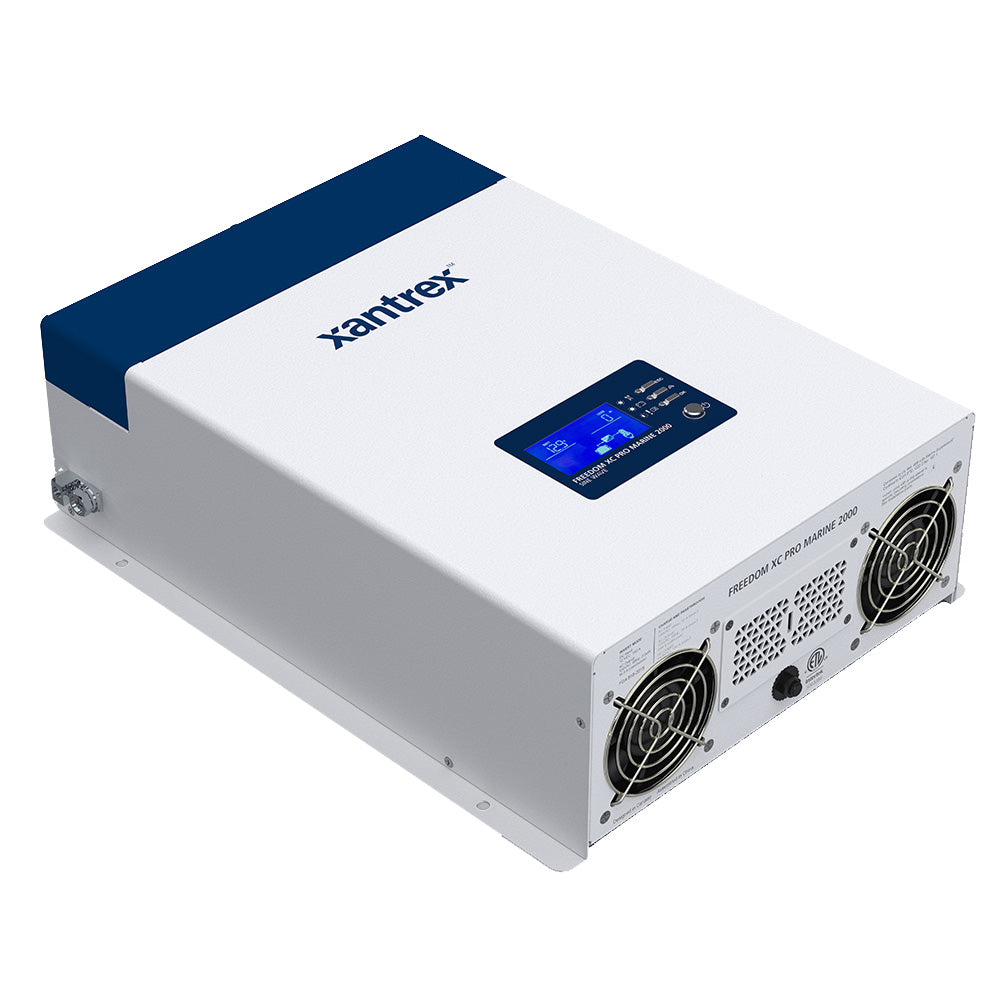

    The Xantrex Freedom XC Pro 2000, MPN 818-2010, is a combined inverter/charger for RVs, boats and work vehicles with 12-volt battery systems. As an inverter it delivers 2000 watts continuous at 40 °C of true sine wave AC, with a 4000-watt surge for up to 5 seconds to start compressors and other motor loads. Output is selectable at 120, 110 or 108 V AC, and 60 or 50 Hz. Connected to shore or generator power, it charges the batteries at up to 100 A, user-adjustable from 5 to 100 A. Xantrex lists lithium-ion support and the ability to charge batteries from as low as 0 V. Its power-factor-corrected charger draws less from the shore supply.

    When incoming AC power is present, the transfer relay passes it through to connected loads and switches the unit into charge mode. Xantrex lists the relay at 30 A surge and 24 A continuous, with an AC pass-through range of 85–140 V AC. A built-in communications card supports RV-C, NMEA 2000 and J1939, and firmware updates load through the built-in USB port. Ignition control lets a 12 V DC signal switch the inverter on and off. The DC operating range is 10.1–18.0 V, with 192 A DC nominal current at full inverter load. Xantrex lists 91% peak efficiency and ≥86% at full load. The unit measures 15.4 × 10.8 × 4.9 inches without flanges and weighs 17.1 pounds. Xantrex lists ETL certification to CSA 107.1, UL 458 and the UL 458 Marine Supplement (with drip shield 808-1050), plus ABYC E-11, A-31 and A-32 compliance and FCC Part 15 Class B. The store listing states a two-year warranty.

    Plan the installation around both inverter and charger demands. Size DC cables and fusing for 192 A at full inverter load from the Freedom XC Pro owner's guide, and confirm that your shore or generator supply can handle up to 24 A of AC input at full charge rate. Configure the charge profile to match your battery chemistry. Configuration and monitoring use the optional Bluetooth remote panel (808-0817-02) or the wired remote panel (808-0817-01). For a plug-in GFCI outlet, choose the GFCI built-in model 818-2010-11 or add GFCI option 808-9817.

    Clear Product Details

    Review the 16 oz gel format, specifications and application directions.

    Surface Guidance

    Check fiberglass, gelcoat and finish suitability before use.

    Product Support

    Ask about your surface and stain type before ordering.

    Shipping & Returns

    Review shipping information and return conditions before purchase.

    Installation & Compatibility Guides

    Identify the Charging and Inverting Functions You Need

    The Freedom XC Pro 2000 inverts, charges and transfers AC. Check these six points before you buy.

    1. Confirm 12 V DC Input

      The 818-2010 is a 12-volt model, operating from 10.1 to 18.0 V DC.

    2. Match the Charge Profile

      Set the charge profile and current (5–100 A) to your battery chemistry and capacity. Lithium-ion is supported.

    3. Check Shore Power Capacity

      At full charge rate the charger draws up to 24 A AC. Keep pass-through loads within the relay's 24 A continuous rating.

    4. Size DC Cables and Fusing

      Full inverter load draws 192 A DC. Take cable size and fusing from the owner's guide.

    5. Choose a Remote and Network

      Add the wired or Bluetooth remote panel. Built-in RV-C, NMEA 2000 and J1939 connect to compatible systems.

    6. Plan Marine and GFCI Options

      The Marine Supplement listing needs drip shield 808-1050. For a plug-in GFCI outlet, choose 818-2010-11 or add kit 808-9817.

    Freedom XC Pro 2000 or Freedom XC Pro 3000?

    Both Freedom XC Pro models combine a true sine wave inverter, a lithium-capable battery charger, an AC transfer relay and built-in RV-C, NMEA 2000 and J1939 communications. The XC Pro 2000 provides 2000 W of inverter output and a 100 A charger, which suits mid-sized 12-volt systems running a microwave, coffee maker or residential refrigerator. The XC Pro 3000 provides 3000 W and a 150 A charger for larger loads and battery banks.

    If you already have a dedicated charger and only need inverting with transfer, compare the Xantrex Freedom X 3000 inverter. Choose by whether you need charging, then by inverter output, charger current and battery-bank size.

    Compare Power Options

    Use these collections to compare inverter/chargers, inverters and other RV equipment. A collection link is for browsing and does not confirm compatibility.

    1. Explore Charger/Inverter Combos

      Compare combined inverter/chargers and standalone chargers by charge current, inverter output and battery support.

      Browse Charger/Inverter Combos

    3. Explore Automotive & RV Accessories

      Return to the parent collection to find another product family for your RV, truck or boat project.

      Browse Automotive/RV

    Related Products

    Example product title
    $1,592.30
    $1,751.53
    $1,592.30
    Example product title
    $1,592.30
    $1,751.53
    $1,592.30
    Example product title
    $1,592.30
    $1,751.53
    $1,592.30
    Example product title
    $1,592.30
    $1,751.53
    $1,592.30
    Example product title
    $1,592.30
    $1,751.53
    $1,592.30
    Example product title
    $1,592.30
    $1,751.53
    $1,592.30
    Example product title
    $1,592.30
    $1,751.53
    $1,592.30
    Example product title
    $1,592.30
    $1,751.53
    $1,592.30
    Example product title
    $1,592.30
    $1,751.53
    $1,592.30
    Example product title
    $1,592.30
    $1,751.53
    $1,592.30

    Frequently Asked Questions

    What are the inverter ratings of the Xantrex Freedom XC Pro 2000 (818-2010)?
    Xantrex rates the inverter at 2000 W continuous at 40 °C, with a 4000 W surge for up to 5 seconds.
    How powerful is the charger?
    The charger delivers up to 100 A, user-adjustable from 5 to 100 A.
    Does it support lithium batteries?
    Yes. Xantrex lists lithium-ion support, and the charger can charge batteries from as low as 0 V. Configure the charge profile to match your batteries.
    What is the transfer relay rating?
    Xantrex lists the transfer relay at 30 A surge and 24 A continuous, with an 85–140 V AC pass-through range.
    What communication protocols does it support?
    A built-in communications card supports RV-C, NMEA 2000 and J1939. Firmware updates load through a USB port.
    Is a remote panel included?
    No. Configuration and monitoring use the optional Bluetooth remote panel (808-0817-02) or wired remote panel (808-0817-01).
    Does the 818-2010 have a GFCI outlet?
    No. It is the hardwire version. Xantrex offers the GFCI built-in model 818-2010-11 and GFCI option kit 808-9817.
    Is it approved for marine installations?
    Xantrex lists UL 458 with the Marine Supplement when drip shield 808-1050 is fitted, plus ABYC E-11, A-31 and A-32 compliance.
