Humminbird APEX 19 Chartplotters

Confirm the 18.5-inch Full-HD display and APEX mounting dimensions fit your helm, viewing angle and planned gimbal or in-dash installation.

Choose MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP when the transducer-included APEX 19 package matches your sonar plan.

Select the transducer-included model for the XM 14 HW MSI T package, or choose APEX 19 CHO for a custom transducer setup.

Plan LakeMaster and CoastMaster mapping, dual Ethernet, NMEA 2000 and other compatible connections before adding the display to a larger network.

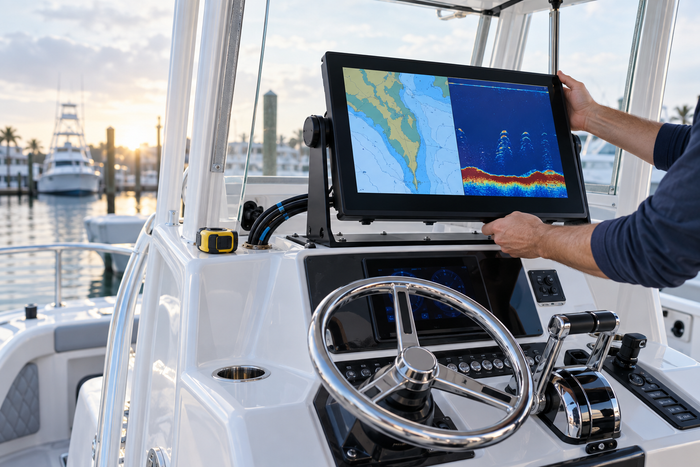

The Humminbird APEX 19 is designed for larger helm installations, so begin by checking the physical space available at your console. Measure the mounting area carefully and consider nearby gauges, steering controls, switches and other marine electronics that could affect placement. Decide whether a gimbal-mounted or in-dash APEX 19 installation works best for your boat, and make sure the display will remain easy to view and operate from your normal driving position. Planning the helm layout first reduces the risk of choosing a large chartplotter that does not integrate cleanly with the rest of your console.

Next, determine which sonar views matter most for the way you fish. An APEX 19 MEGA SI+ setup can support advanced imaging and sonar functions, but your final performance depends on the transducer and complete system configuration you choose. Think about whether you need Side Imaging for searching wider areas, Down Imaging for detail beneath the boat, or traditional CHIRP sonar for monitoring depth and fish targets. Defining your sonar priorities before purchasing makes it easier to decide whether a complete APEX 19 transducer package or a more customized configuration is the better fit.

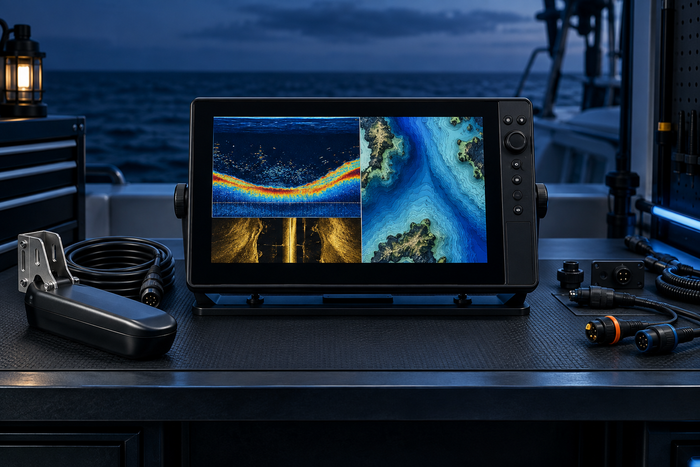

One of the most important APEX 19 buying decisions is whether to purchase a model with a transducer included or choose an APEX 19 CHO configuration. A transducer-included package is the more straightforward option when the supplied sonar hardware matches your installation and fishing needs. CHO, or Control Head Only, is better suited to buyers who already have compatible sonar hardware or are intentionally building a custom transducer setup. Before choosing CHO, verify the exact transducer, connectors and sonar functions you plan to use so the display and sonar system are properly matched.

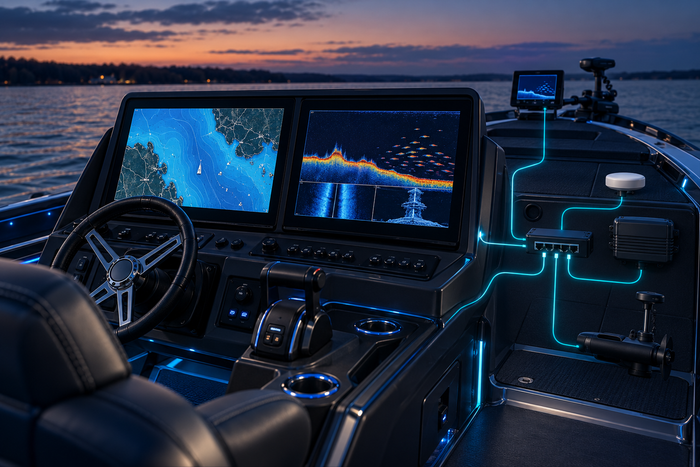

Consider how the Humminbird APEX 19 will fit into your overall navigation and marine-electronics system, not just how it will operate as a standalone display. Review the mapping coverage you need for the waters you fish and confirm that your planned charting setup supports those areas. If the APEX 19 will become part of a multi-display or connected helm, also identify the other Humminbird displays, sonar sources and network equipment already installed. Planning APEX 19 mapping and networking before purchase helps prevent missing cables, incompatible connections or unexpected installation changes later.

Before placing your order, review the complete APEX 19 installation rather than evaluating the display alone. Confirm the exact configuration you are buying, the planned mounting method, available power and cable routing, transducer setup and any network equipment that must connect to the chartplotter. If the unit will be integrated with other marine electronics, identify those devices before installation begins. A final compatibility and installation check helps ensure the Humminbird APEX 19 configuration you order matches your helm, sonar requirements and broader electronics system instead of requiring changes after delivery.
