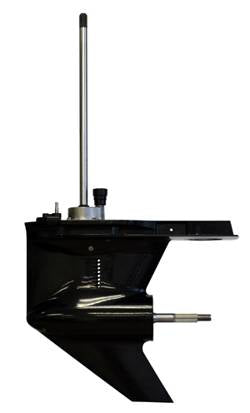

Mercury Outboard Lower Unit Replacement – Fits 3L – 1.62 & 1.75 Ratios – Aftermarket image 0
Mercury Outboard Lower Unit Replacement – Fits 3L – 1.62 & 1.75 Ratios – Aftermarket image 0

Mercury Outboard Lower Unit Replacement – Fits 3L – 1.62 & 1.75 Ratios – Aftermarket

$1,195.00
$1,326.45
$1,195.00
(-10%)

MPN :

SKU: ST-90-216-A20
Availability: In stock
Please hurry! Only 100 left in stock
Splines/Ratio/Motor/Shaft Length: 13/1.75/3.0L/20?Shaft
Subtotal: $1,195.00
Mercury Outboard Lower Unit Replacement – Fits 3L – 1.62 & 1.75 Ratios – Aftermarket image 0

Mercury Outboard Lower Unit Replacement – Fits 3L – 1.62 & 1.75 Ratios – Aftermarket

$1,326.45 $1,195.00
Mercury Outboard Lower Unit Replacement – Fits 3L – 1.62 & 1.75 Ratios – Aftermarket image 0

Mercury Outboard Lower Unit Replacement – Fits 3L – 1.62 & 1.75 Ratios – Aftermarket

$1,326.45 $1,195.00
Splines/Ratio/Motor/Shaft Length: 13/1.75/3.0L/20?Shaft
Description
Description
x

Mercury Outboard Lower Unit Replacement – Fits 3L – 1.62 & 1.75 Ratios – Aftermarket

The SE216 lower unit is a reliable, aftermarket replacement for most Mercury 3.0L engines (serial number 1B504989 and below). Engineered for durability and a precise fit, this model supports either 1.62:1 or 1.75:1 gear ratios and is available with 20, 25, or 30-inch (13-spline) one-piece drive shafts. Perfect for marine owners demanding OEM-level performance at a great value.

Key Features

  • Replaces most Mercury 3.0L lower units (SN 1B504989 & below)

  • Available in 1.62:1 and 1.75:1 gear ratios for powerful performance

  • Shaft options: 20", 25", or 30" (13 spline) one-piece drive shafts

  • Stub shaft version available for engines with 8 spline drive

  • Not compatible with Torque Master, Torque Master 2, or Sport Master

Specifications Table

Feature Details
Fitment Mercury 3.0L Outboards (SN 1B504989 and below)
Gear Ratios 1.62:1, 1.75:1
Shaft Options 20" (45-824114A 1), 25" (45-823901A 1), 30" (45-824115A 1, NLA*)
Spline Info 13-spline standard, stub shaft for 8-spline
Water Tube Coupling For SN OG438000+, comes with correct coupler
Additional Notes 13-spline two-piece shaft? Order one-piece above
Replacement Notice For lower SN, reuse old water coupling or get part 96-116-12K
Exclusions Does not replace Torque Master, Torque Master 2, Sport Master

Important Compatibility Notes

  • If your motor uses an 8-spline drive shaft, select the stub shaft version and purchase the upper driveshaft from an authorized Mercury dealer.

  • The SEI 216 gear case is supplied with the correct water tube coupling for SN OG438000 and higher. For earlier serials, use your old coupling or order part #96-116-12K.

For fitment help, please call 813-925-7127 and have your serial number ready.
