MerCruiser Bravo Transom Assembly Replacement Guide

Replacing a MerCruiser Bravo transom assembly requires more than confirming your Bravo family — it means verifying reference numbers, application details, and known exclusions before ordering. This guide walks through what to check when considering a replacement such as the 6311002NZ or a 9F-121 application.

Step 1: Confirm Your Bravo Family

Since transom assemblies interface with different Bravo drive configurations, start by confirming whether your system is a Bravo One, Bravo Three, or another configuration. This determines which transom assembly family applies before you even look at specific reference numbers.

Step 2: Record Existing Reference Numbers

Before ordering a replacement like the 6311002NZ, document any part or reference numbers stamped on your current transom plate, gimbal ring, or bellows assembly. These numbers help confirm that the replacement you're considering is designed for your exact application rather than a similar-looking but incompatible configuration.

Step 3: Verify 9F-121 Application Details

If you're evaluating an SEI 9F-121 application, confirm that the specific transom configuration matches your boat's hull thickness, mounting pattern, and existing gimbal housing. Application-specific parts like the 9F-121 are built for defined use cases, and confirming these details against your existing installation prevents a mismatched fit.

Step 4: Understand the Bravo ITS Exclusion

An important detail to verify before ordering is whether your drive uses the Bravo ITS (Integrated Transom System) configuration. Standard transom assembly replacements are generally not designed for ITS-equipped drives, and attempting to fit a standard transom assembly to an ITS system will not result in a correct installation. Confirm whether your drive is ITS-equipped before proceeding with any standard transom assembly replacement.

Replacement Verification Checklist

• Confirm Bravo drive family and identification details
• Record existing reference numbers, such as 6311002NZ or similar stamped part numbers
• Verify 9F-121 or other application-specific fitment details against your boat
• Confirm your drive is not Bravo ITS-equipped before ordering

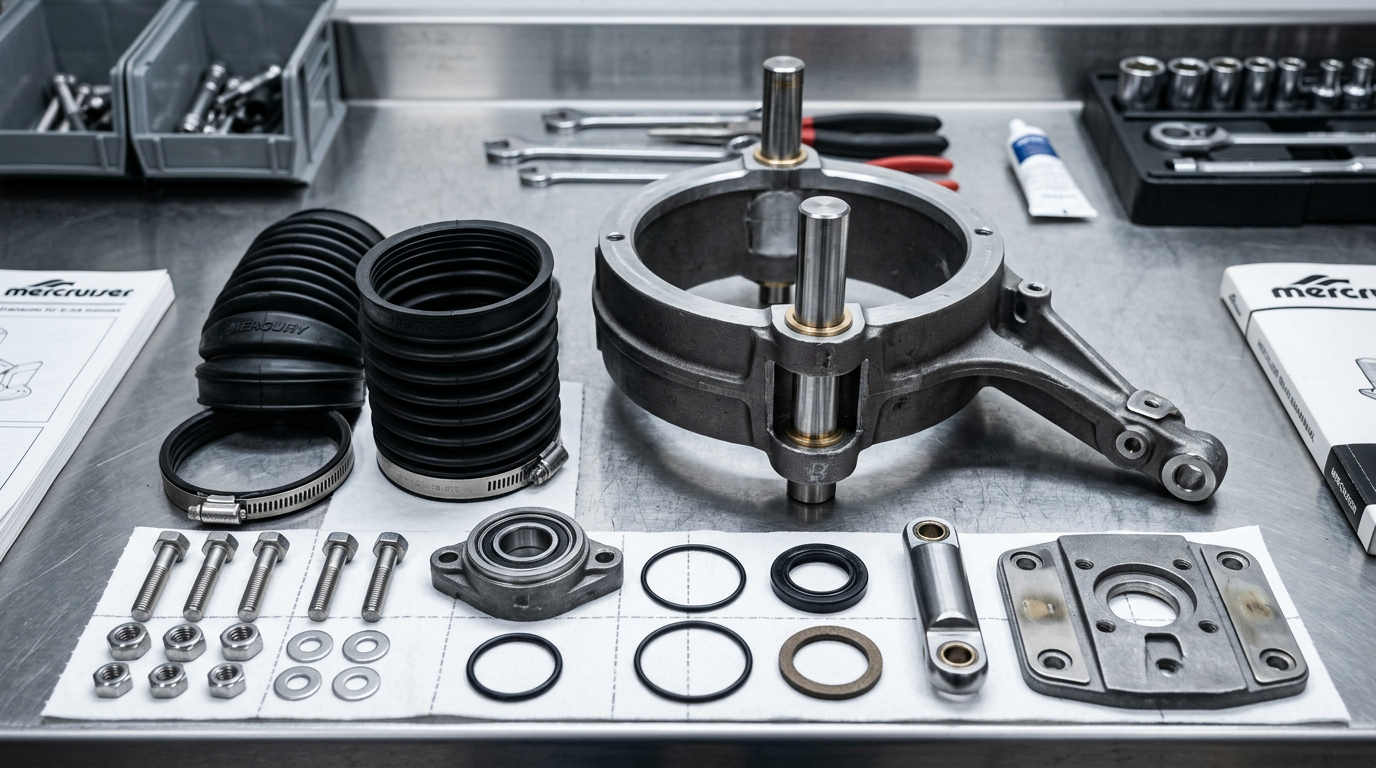

• Document bellows, gimbal ring, and mounting hardware condition
• Inspect for water intrusion or corrosion around the current transom mount

Frequently Asked Questions

What is the Bravo ITS exclusion?
It refers to Bravo drives using the Integrated Transom System, which requires different components than a standard transom assembly replacement.

Can I use a 9F-121 application on any Bravo boat?
No. Application-specific transom parts like the 9F-121 are matched to defined hull and mounting configurations — always verify against your existing installation before ordering.
