Alpha One Short Yoke vs New-Style Yoke: How to Identify the Right Upper Unit

One of the most common mistakes when replacing an Alpha One Gen I upper unit is ordering the wrong input yoke length. Two upper units can share the exact same gear ratio and rotation, yet be completely incompatible with your engine coupler simply because the yoke is a different length. This guide explains the difference between the 8-1/8-inch short yoke and the 9-9/16-inch new-style yoke, and how to measure your own drive correctly before ordering.

What Is an Input Yoke?

The input yoke is the splined shaft at the top of the upper unit that connects to your engine's coupler and drives the entire sterndrive. Its length and spline pattern must precisely match your engine coupler for the drive to bolt up and engage correctly. Two different yoke lengths were used across Alpha One Gen I production, which is why this measurement is just as important as gear ratio when ordering a replacement.

The 8-1/8-Inch Short Yoke

The short yoke, measuring 8-1/8 inches, was used on specific Alpha One Gen I engine and transom configurations. Multiple verified reviews confirm this yoke's importance as a defining fitment detail rather than a minor spec. One reviewer explained: "The SE104 1.62 earns its place in this collection by serving the short-yoke side of the Alpha One Gen I replacement range. It is not simply another 1.62 sterndrive — the 8-1/8-inch input yoke is its defining selection detail."

This pattern holds true across every ratio in the short-yoke family. On the 1.81 short-yoke option, a reviewer noted: "It combines a complete upper-and-lower Alpha One Gen I sterndrive with a 1.81 ratio, standard rotation and the 8-1/8-inch short-yoke configuration... If the application uses the longer new-style yoke, the SE106 1.81 becomes the relevant comparison." And on the 1.94 short-yoke unit: "Its value comes from solving a specific fitment requirement rather than acting as a universal Alpha One replacement. Confirm the drive generation, 1.94 ratio and short yoke before ordering."

The 9-9/16-Inch New-Style Yoke

The new-style (also called "regular") yoke measures 9-9/16 inches and is used across a wide range of Alpha One Gen I complete sterndrive configurations, including the 1.47, 1.62, 1.81, and 1.94 ratios. Because this yoke length appears throughout the SE106 product family, buyers must still confirm which specific ratio their engine requires — yoke length alone does not determine the correct ratio.

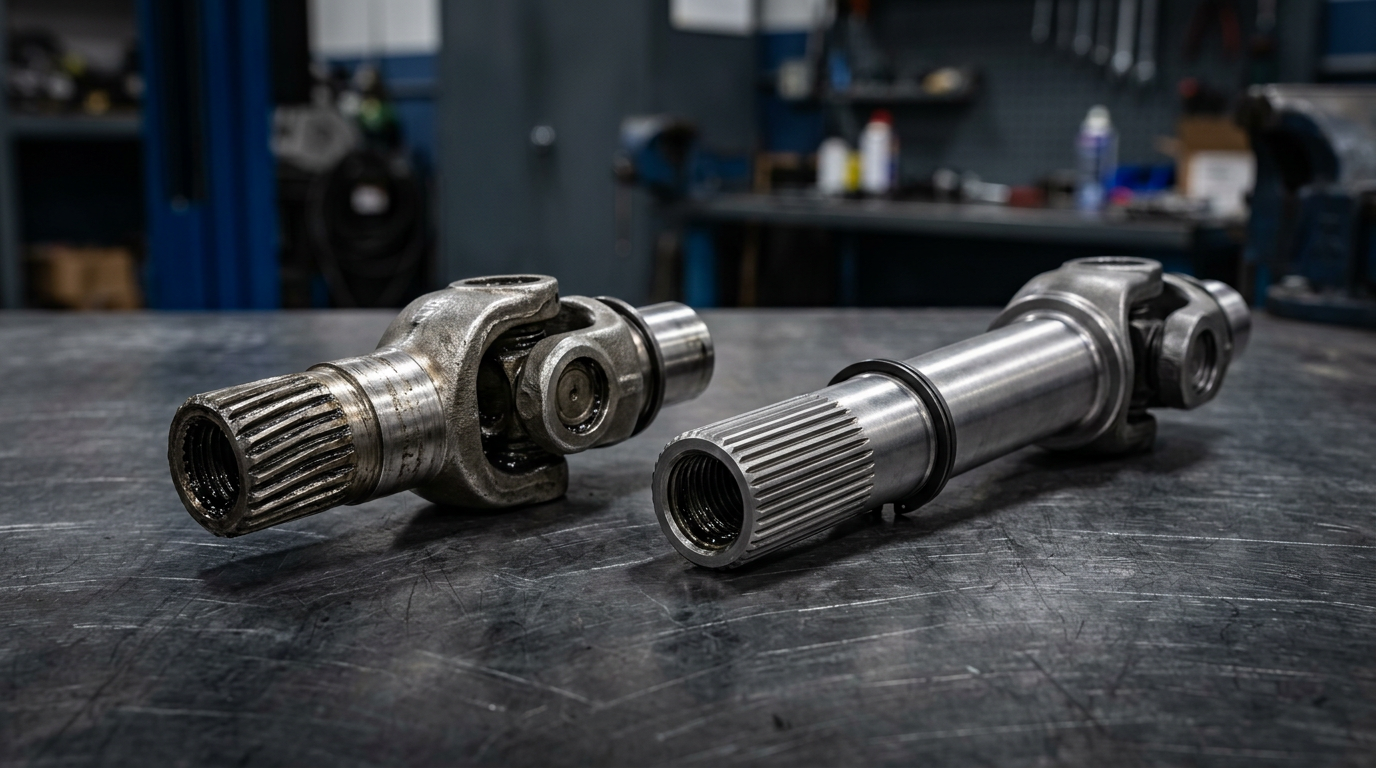

Short Yoke vs New-Style Yoke Comparison

How to Measure Your Existing Input Yoke

• Remove the drive or access the input yoke at the transom coupler
• Measure the yoke shaft length precisely with a tape measure or calipers
• Compare against the two known lengths: 8-1/8 inches or 9-9/16 inches
• Cross-reference with your gear ratio to confirm the exact SE104 or SE106 product match
• Photograph the yoke and coupler if you plan to request fitment confirmation

Frequently Asked Questions

Can I convert my drive from short yoke to new-style yoke?
This typically requires changing the engine coupler and transom assembly as well, since the yoke length is tied to the overall drive configuration — it is not a simple swap.

What happens if I order the wrong yoke length?
The drive will not properly engage with your engine coupler, preventing installation entirely. Always verify yoke length before ordering.
