Alpha One Gen I Upper Unit Ratios: 1.47 vs 1.62 vs 1.81 vs 1.94

If you're shopping for an Alpha One Gen I upper unit, gear ratio is one of the most important — and most commonly overlooked — specifications to verify. Installing the wrong ratio can throw off your engine's RPM range, hurt fuel economy, and reduce top-end performance. This guide breaks down the four common Alpha One Gen I upper unit ratios: 1.47, 1.62, 1.81, and 1.94, so you can confidently identify what your boat needs before ordering.

Why Gear Ratio Matters

The upper unit's gear ratio determines how engine RPM is converted into propeller shaft speed. A lower numerical ratio (like 1.47) spins the propeller faster relative to engine RPM, which is often paired with larger-diameter propellers and heavier boats. A higher ratio (like 1.94) spins the prop slower relative to engine RPM, commonly used with smaller propellers on lighter, faster applications. Installing a mismatched ratio upper unit on your existing lower unit will result in incorrect gear mesh and drivetrain damage — the ratio must match between the upper and lower unit.

1.47 Gear Ratio

The 1.47 ratio is one of the more specialized configurations in the Alpha One Gen I lineup. As one detailed review of a 1.47 complete sterndrive noted: "What stands out about this SE106 complete sterndrive is how clearly defined its selection path is: a 1.47 gear ratio, standard rotation and the 9-9/16-inch new-style input yoke. For a buyer who has already verified those Alpha One Gen I identifiers, it provides a straightforward complete upper-and-lower replacement." This underscores a key point — the 1.47 ratio should never be selected based on engine size alone; it should always be confirmed against your existing drive's specifications.

1.62 Gear Ratio

The 1.62 ratio is one of the most common Alpha One Gen I configurations, available in both new-style yoke and short-yoke versions. A verified reviewer explained: "The SE106 1.62 complete sterndrive is easy to understand once the existing drive information is available. It combines a complete upper-and-lower assembly with standard rotation and the 9-9/16-inch new-style yoke configuration." Because a short-yoke 1.62 option also exists, buyers must check their input yoke length in addition to the ratio before ordering — matching the ratio alone is not sufficient.

1.81 Gear Ratio

The 1.81 ratio sits in the middle of the Alpha One Gen I range and is also offered in both yoke styles. As one reviewer put it: "This SE106 1.81 complete sterndrive offers a clear shopping path for a verified Alpha One Gen I standard-rotation application requiring the new-style input yoke... Matching the 1.81 ratio alone is not enough, however, because an SE104 short-yoke version is also available." This is a recurring theme across every ratio in the lineup — ratio and yoke configuration must always be verified together.

1.94 Gear Ratio

The 1.94 ratio is typically used on higher-RPM applications with smaller propellers. According to a verified review: "The SE106 1.94 complete sterndrive gives buyers a well-defined replacement option when the existing Alpha One Gen I application confirms a 1.94 ratio, standard rotation and new-style input yoke... The important final check is the yoke: shoppers with an 8-1/8-inch short-yoke application should compare the SE104 1.94 instead of assuming the two products are interchangeable."

Ratio Comparison at a Glance

Ratio	Typical Use	Yoke Options Available
1.47	Heavier boats, larger props	New-style (9-9/16")
1.62	Common general-purpose setups	New-style & short-yoke
1.81	Mid-range performance boats	New-style & short-yoke
1.94	Higher-RPM, smaller propellers	New-style & short-yoke

How to Identify Your Current Ratio

• Check the serial number tag on your existing upper or lower unit
• Reference your MerCruiser parts manual using the engine's serial number

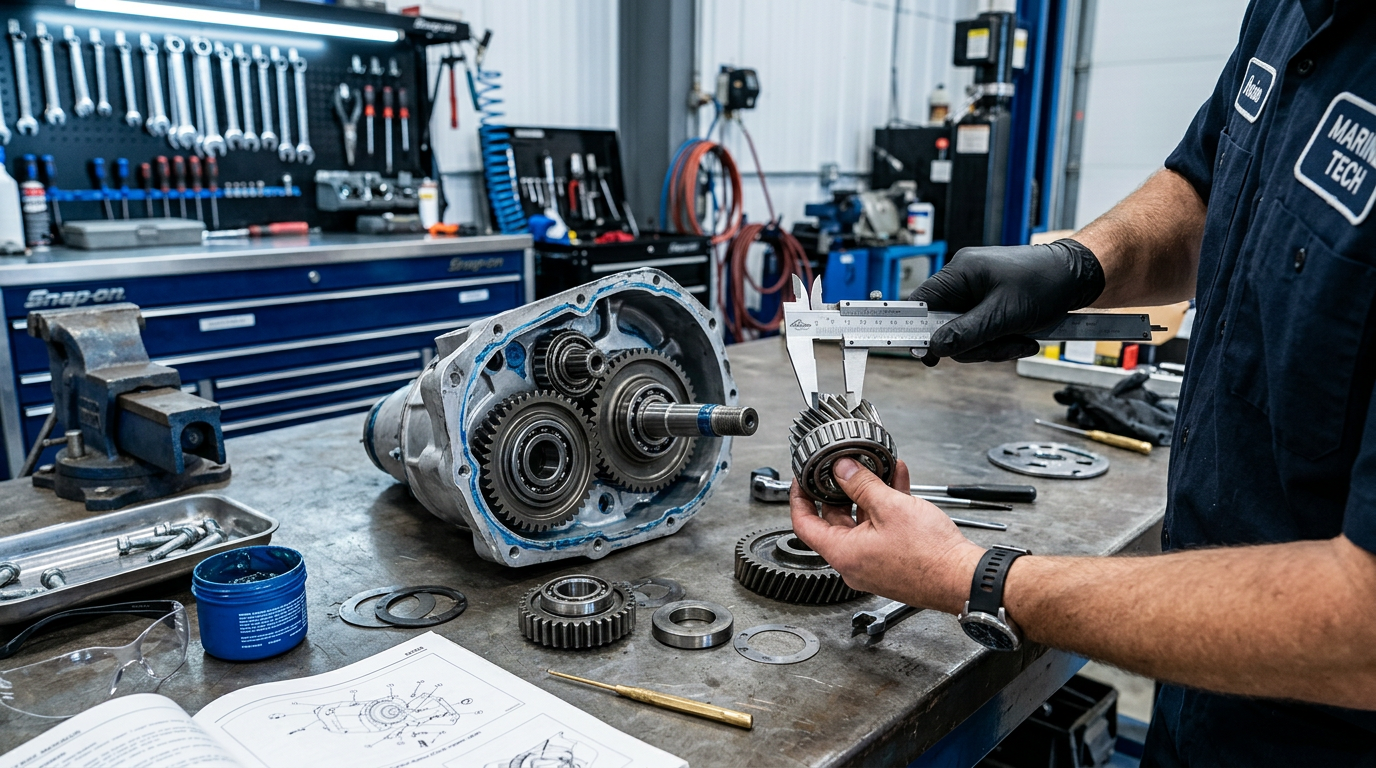

• Physically count gear teeth if the unit is disassembled (a qualified technician can do this accurately)
• Confirm the ratio matches on both the upper and lower unit before ordering either separately

Frequently Asked Questions

Can I change my gear ratio to get better top speed?
Changing ratios affects RPM range and propeller sizing requirements — this should only be done with a clear understanding of your engine's power curve and prop pitch, ideally with guidance from a marine technician.

Do the upper and lower unit ratios have to match exactly?
Yes. The upper and lower unit must have the same gear ratio to mesh correctly and avoid drivetrain damage.
