Zipwake Series S Trim Control System Integration Kit

Zipwake Series S Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight interceptors (2x interceptors with 3m cable and cable covers, 1 distribution unit with 4m power cable and 1 control panel with 7m standard cable). Any base installation can be expanded with up to two extra pairs of Series S interceptors, thus allowing a total of six interceptors

• Zipwake is a fully automatic and active trim control system
• Dynamically eliminates uncomfortable and dangerous boat pitch and roll
• Automatically minimizes wave resistance and saves fuel
• Built-in quality, simplicity and easy expansion, yet affordable
• 5-10 times faster than conventional trim tabs
• Built-in GPS, 3D-Gyro and 3D- Accelerometer

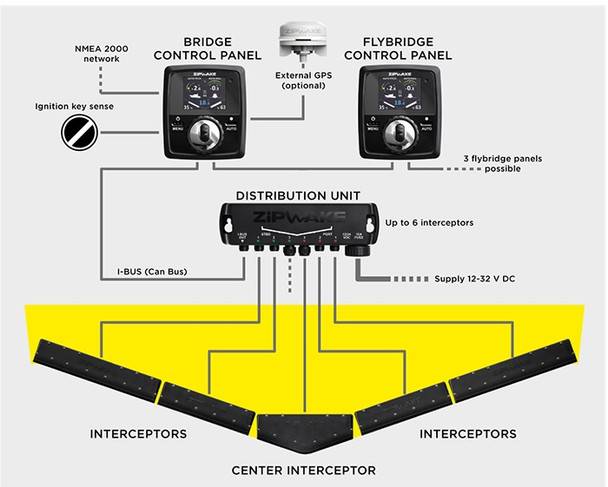

Kit boxes include all the parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight or chine interceptors. There are six Kit Boxes for integration with a module for hardwired system integration and wireless communication. Any base installation can be expanded with up to two extra pairs of Series S interceptors, thus allowing a total of six interceptors without any need for additional connectors or power supply.

Specifications:

• Width:
  • 300: 26.8"
  • 450: 26.8"
  • 600: 38.6
  • 750: 38.6
• Depth: 6.1"
• Height: 10.8"
• Weight:
  • 300: 15.4 lbs
  • 300 Chine: 15.9 lbs
  • 450: 18.7 lbs
  • 450 Chine: 19.1 lbs
  • 600: 23.1 lbs
  • 750: 25.6 lbs

What is in the box?

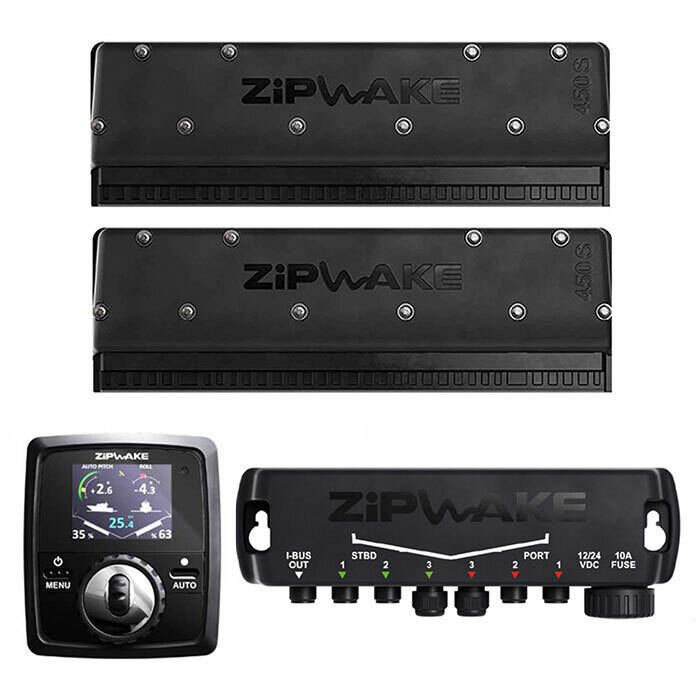

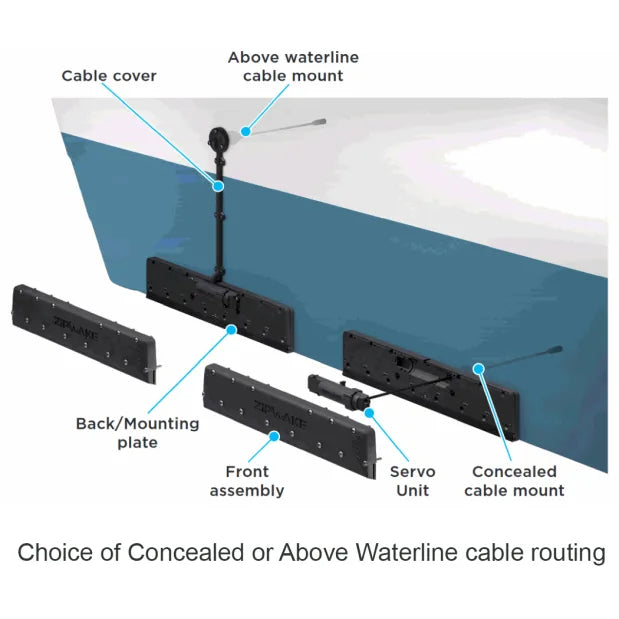

• (2) Interceptors with 3 m Cable and Cable Cover
• (1) Distribution Unit with 4 m Power Cable
• (1) Integrator Module
• (1) 7 m Standard Cable
• Operator's manual
• Warranty Card
• Installation Guide
• Drill Templates
• Mounting Screws
• Operator's Quick Guide
• Startup Checklist

Frequently Asked Questions

Q: What does the Zipwake Series S Trim Control System Kit include?
A: The kit includes two interceptors with 3m cables and covers, a distribution unit with a 4m power cable, an integrator module, a 7m standard cable, manuals, guides, mounting hardware, and a startup checklist.

Q: Can the Zipwake Series S system be expanded?

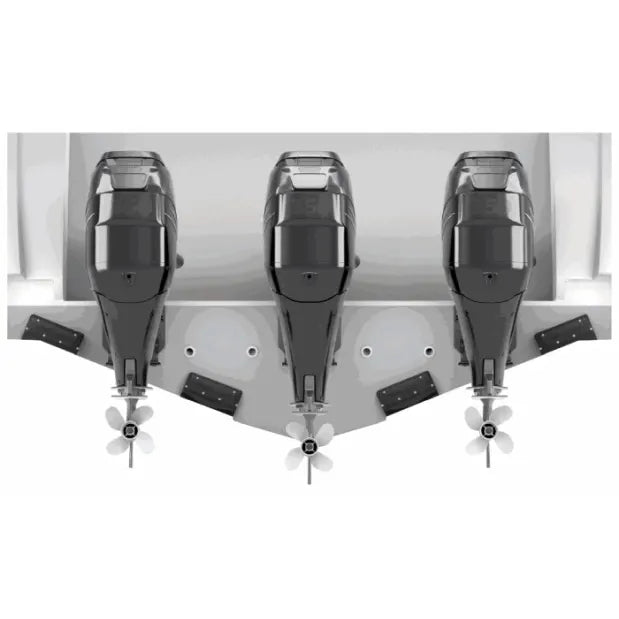

A: Yes. Any base installation can be expanded with up to two extra pairs of Series S interceptors, allowing a total of six interceptors without additional connectors or power supply.

Q: How fast is the Zipwake Series S compared to trim tabs?
A: The Zipwake Series S operates 5–10 times faster than conventional trim tabs, ensuring instant adjustments for pitch and roll stability.

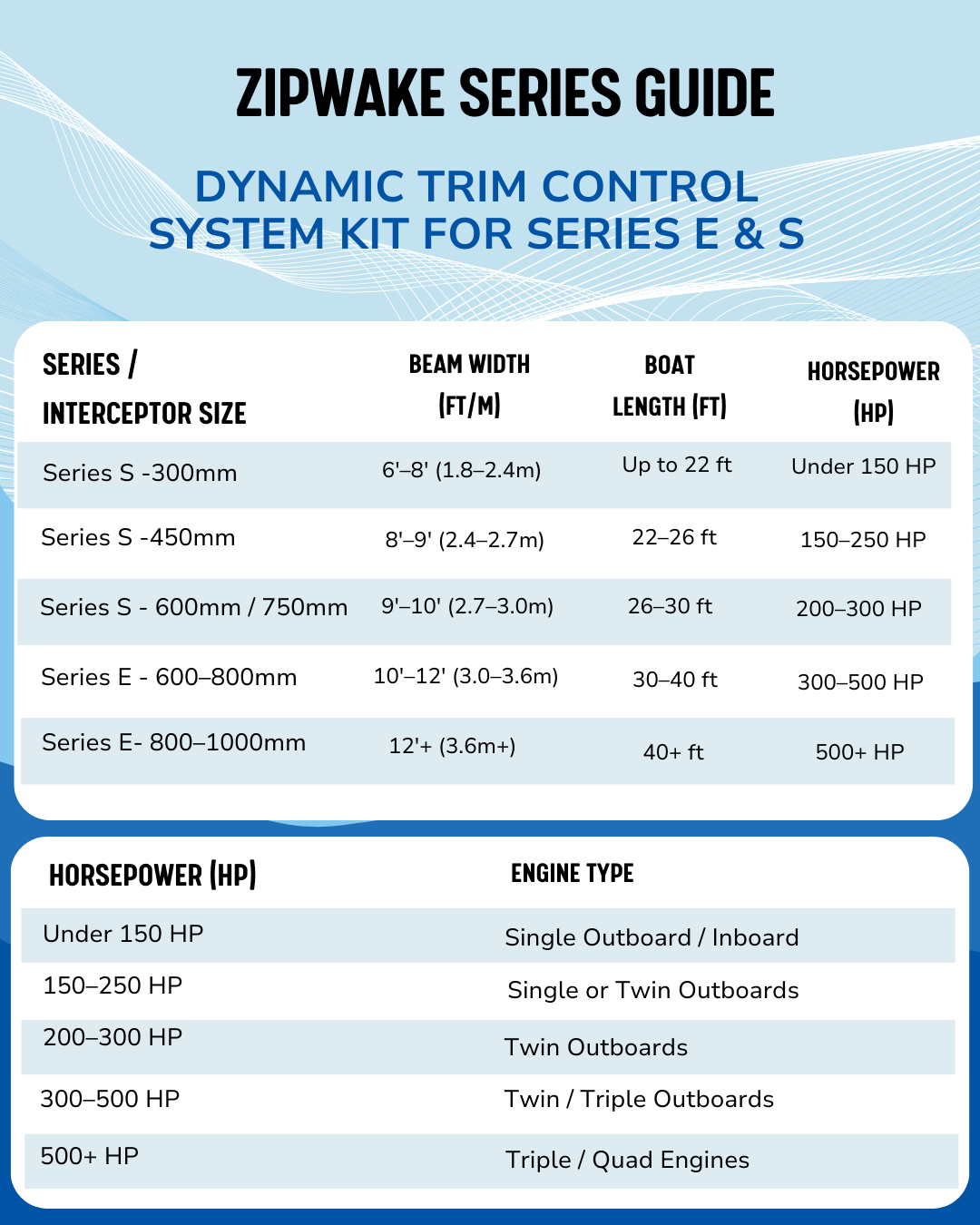

Q: What boats are best suited for the Zipwake Series S?
A: The Series S kit is ideal for small to medium boats and performance vessels that require reliable automatic trim control.

Q: Does the system improve fuel efficiency?
A: Yes. By minimizing wave resistance, the Zipwake Series S helps save fuel while enhancing comfort and stability.
