Xantrex Remote On/Off Switch f/Freedom SW Series
Xantrex Remote On/Off Switch f/Freedom SW Series

Xantrex Remote On/Off Switch for Freedom SW Series MPN - 808-9002

$33.37
$36.71
$33.37

MPN : 808-9002

SKU: 44738
Availability: In stock
Product type: Automotive/RV | Inverters,Electrical | Inverters
Please hurry! Only 3 left in stock
Subtotal: $33.37
10 customers are viewing this product
Remote on/off panel made for Freedom SW 2012 and SW 3012 units
Enables or disables ignition lockout to help prevent battery drain
Includes 25 ft (7.6 m) communications cable
Xantrex Remote On/Off Switch f/Freedom SW Series

Xantrex Remote On/Off Switch for Freedom SW Series MPN - 808-9002

$36.71 $33.37
Xantrex Remote On/Off Switch f/Freedom SW Series

Xantrex Remote On/Off Switch for Freedom SW Series MPN - 808-9002

$36.71 $33.37

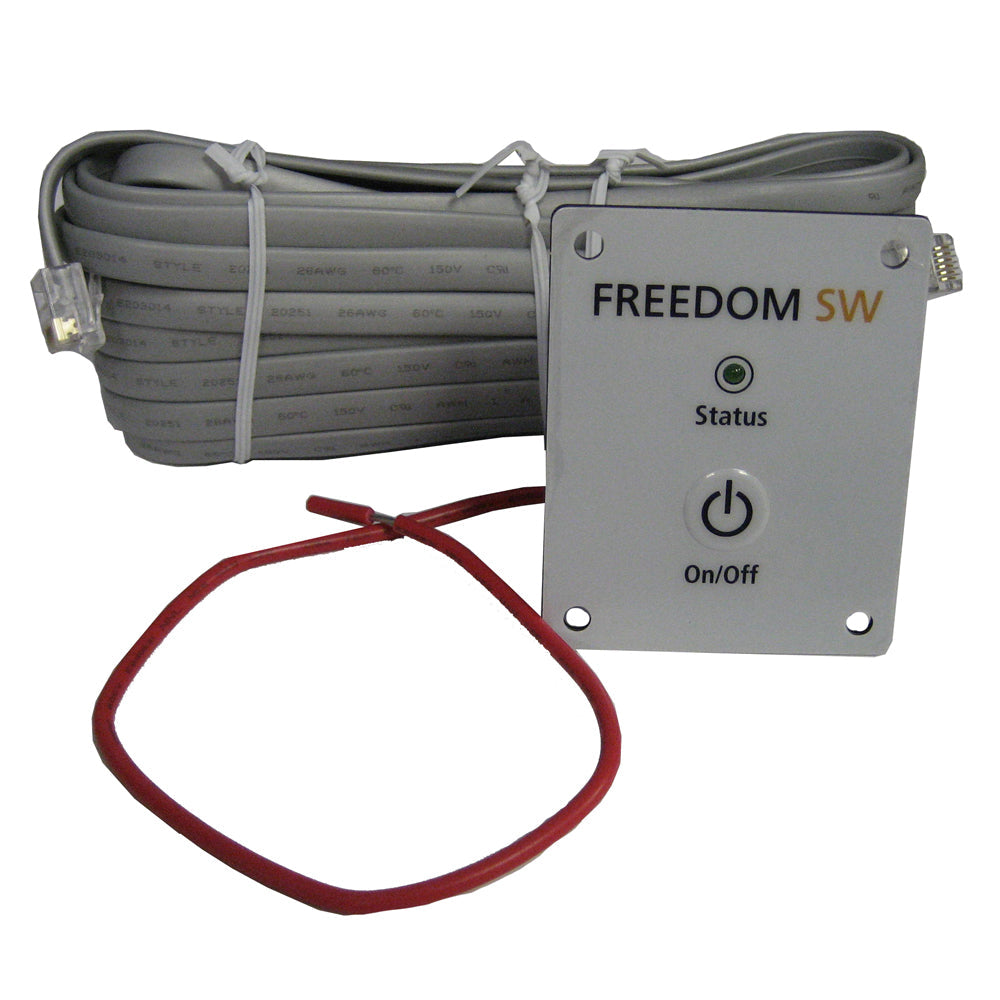

    The Xantrex Remote On/Off Switch, MPN 808-9002, is a remote panel made for the Xantrex Freedom SW 2012 and SW 3012 inverter/chargers. Xantrex lists part 808-9002 as the Freedom SW remote panel. It connects to the Remote port on the inverter/charger's AC/DC side panel, so you can switch the inverter on or off from a convenient spot in the RV, truck or boat instead of reaching the unit itself. A 25-foot (7.6 m) communications cable is included. This listing is the remote panel and cable only. It does not include an inverter/charger.

    The panel also enables or disables the Freedom SW's ignition lockout feature. With ignition lockout enabled, the inverter shuts down when the vehicle ignition is not in the ACC position. This helps prevent the inverter from draining the batteries while the vehicle is parked. The panel is a simple control and does not replace the Xanbus System Control Panel. If you need to change system settings, view diagnostics or program an Automatic Generator Start, you need the SCP, part 809-0921.

    Choose a mounting location that is dry, free from corrosive or explosive fumes and suitable for an electronic device, and within reach of the 25-foot cable. Xantrex also offers a Freedom SW remote panel mounting bracket, part XAN-BRFSW, for replacing certain existing remote panels without adjusting the existing panel opening. Confirm your inverter/charger model before ordering. The panel is described as made for the Freedom SW 2012 and SW 3012.

    Clear Product Details

    Review the 16 oz gel format, specifications and application directions.

    Surface Guidance

    Check fiberglass, gelcoat and finish suitability before use.

    Product Support

    Ask about your surface and stain type before ordering.

    Shipping & Returns

    Review shipping information and return conditions before purchase.

    Installation & Compatibility Guides

    Match the Remote Panel to Your Freedom SW Installation

    This panel provides on/off and ignition lockout control for specific Freedom SW units. Check these six points first.

    1. Confirm Your Freedom SW Model

      The panel is made for the Freedom SW 2012 and SW 3012. Check the inverter/charger label before ordering.

    2. Locate the Remote Port

      The panel connects to the Remote port on the inverter/charger's AC/DC side panel.

    3. Plan the 25 ft Cable Route

      The included cable is 25 ft (7.6 m). Choose a panel location the cable can reach without strain.

    4. Choose a Safe Mounting Spot

      Mount the panel where it stays dry and away from corrosive or explosive fumes.

    5. Decide on Ignition Lockout

      With ignition lockout on, the inverter shuts down unless the ignition is in ACC. Plan the ignition connection per the Freedom SW documentation.

    6. Add the SCP for Full Control

      For settings, diagnostics or an Automatic Generator Start, add the System Control Panel, part 809-0921.

    Remote On/Off Switch or System Control Panel?

    The 808-9002 remote panel is the simplest way to control a Freedom SW from a distance. It turns the inverter on and off and manages ignition lockout, which helps prevent unwanted battery drain when the vehicle is parked. It suits installations where the inverter/charger is mounted out of reach and the owner only needs convenient switching.

    The Xantrex Xanbus System Control Panel provides much more. It has a graphical display, full configuration and diagnostics, control of other Xanbus devices and AGS programming. Choose the remote switch for basic on/off and ignition lockout control. Choose the SCP if you need to change settings or monitor the system in detail.

    Find the Right Power Equipment

    Use these collections to compare inverter/chargers and electrical accessories. A collection link is for browsing and does not confirm compatibility.

    1. Compare Power Inverters

      Browse inverters and Xantrex system accessories, and compare each item's documented purpose and requirements.

      View Power Inverters

    Related Products

    Example product title
    $33.37
    $36.71
    $33.37
    Example product title
    $33.37
    $36.71
    $33.37
    Example product title
    $33.37
    $36.71
    $33.37
    Example product title
    $33.37
    $36.71
    $33.37
    Example product title
    $33.37
    $36.71
    $33.37
    Example product title
    $33.37
    $36.71
    $33.37
    Example product title
    $33.37
    $36.71
    $33.37
    Example product title
    $33.37
    $36.71
    $33.37
    Example product title
    $33.37
    $36.71
    $33.37
    Example product title
    $33.37
    $36.71
    $33.37

    Frequently Asked Questions

    Which inverter/chargers is the Xantrex 808-9002 remote switch for?
    It is made for the Xantrex Freedom SW 2012 and Freedom SW 3012 inverter/chargers.
    What does the remote panel do?
    It switches the Freedom SW inverter on or off remotely and lets you enable or disable the ignition lockout feature.
    What is ignition lockout?
    When enabled, the inverter shuts down if the vehicle ignition is not in the ACC position, which helps prevent unnecessary battery drain.
    How long is the included cable?
    A 25-foot (7.6 m) communications cable is included.
    Where does the cable connect?
    It connects to the Remote port on the Freedom SW's AC/DC side panel.
    Can this panel change inverter/charger settings?
    No. It provides on/off and ignition lockout control. Settings and diagnostics require the Xanbus System Control Panel, part 809-0921.
    Is a mounting bracket available?
    Xantrex offers a Freedom SW remote panel mounting bracket, part XAN-BRFSW, sold separately.
    Does this listing include an inverter/charger?
    No. It is the remote panel and its 25-foot cable only.
