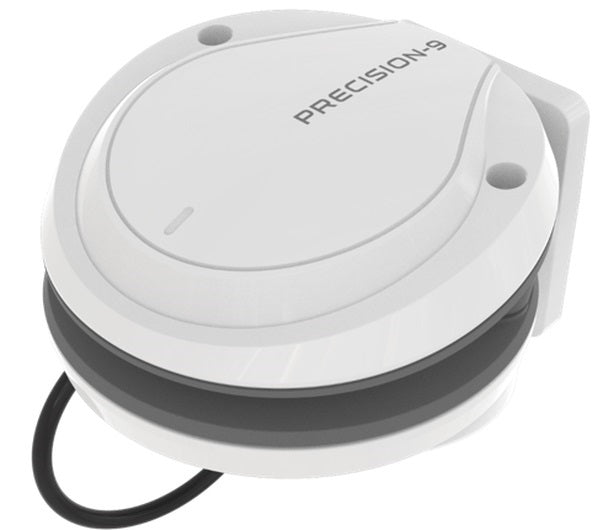

Simrad Precision 9 Compass
Simrad Precision 9 Compass

Simrad Precision 9 Compass MPN - 000-12607-001

$724.00
$724.00
$724.00
(-0%)

MPN : 000-12607-001

SKU: SIM00012607001
Availability: In stock
Product type: Navigation
Please hurry! Only 5 left in stock
Subtotal: $724.00
Simrad Precision 9 Compass

Simrad Precision 9 Compass MPN - 000-12607-001

$724.00
Simrad Precision 9 Compass

Simrad Precision 9 Compass MPN - 000-12607-001

$724.00
Description
Description
x

Simrad Precision 9 Compass

Model: 000-12607-001

UPC: 9420024145999
  • Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000(R)
  • Heading and ROT calculated using sensor data from 9 axes of rotation and motion
  • Accurate and reliable solid-state sensor technology
  • Heading accuracy of ±2 deg after calibration
  • Easily adjustable mounting bracket allows bulkhead or up-mast installation
  • IPX7 waterproof. Best in class.
  • Simple installation with a single NMEA 2000(R) connection

The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

Specifications

Supply and Interface 8-16 V via NMEA 2000
Power consumption 0.4 W
NMEA 2000 Load Equivalence No. (LEN) 1
NMEA 2000 ports (input/output) 1
Calibration Automatic (User Prompted)
Repeatability ± 1.0 deg (or better)
Roll/Pitch range ± 45 deg
Heading accuracy ± 2 deg after calibration
Dynamic performance with random excitation of ± 10 deg at max 1 Hz: Heading error <2 deg: with heading step input of 90 deg at a rate of 10 deg/s Heading error 10 sec. after turn <2 deg
Environmental protection IPX7
Compass safe distance 0.5 m (1.7 feet)
Temperature range operation -25 to +65 degC (-13 to +149 degF)
Temperature range Storage -30 to +70 degC - (-22 to +158 degF)
Dimensions H: 36 mm (1.42 in), W & D: 119 mm (4.69 in)

What's in the Box:
  • Precision 9 Compass
  • N2K-T-RD - Micro-C T-connector
  • N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000(R) cable
