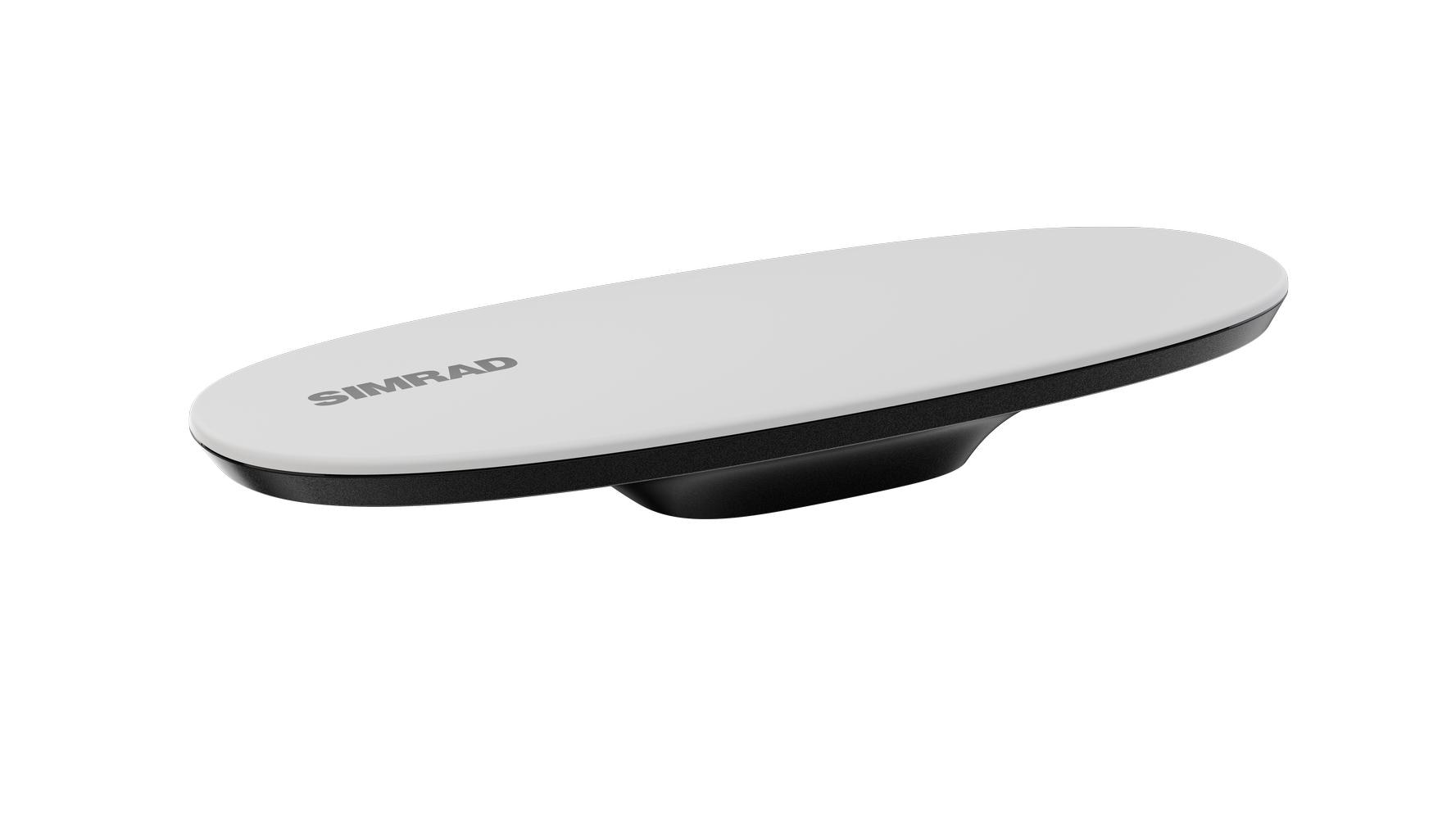

Simrad HS65 GNSS Compass with Flat Mount
Simrad HS65 GNSS Compass with Flat Mount

Simrad HS65 GNSS Compass with Flat Mount MPN - 000-16235-001

$1,299.00
$1,299.00
$1,299.00
(-0%)

MPN : 000-16235-001

SKU: SIM00016235001
Availability: In stock
Product type: Navigation
Please hurry! Only 10 left in stock
Subtotal: $1,299.00
Simrad HS65 GNSS Compass with Flat Mount

Simrad HS65 GNSS Compass with Flat Mount MPN - 000-16235-001

$1,299.00
Simrad HS65 GNSS Compass with Flat Mount

Simrad HS65 GNSS Compass with Flat Mount MPN - 000-16235-001

$1,299.00
Description
Description
x

Simrad HS65 GNSS Compass with Flat Mount

Model: 000-16235-001

  • Heading accuracy without the restriction of magnetic interference to account for.
  • Heading Accuracy of <2° RMS 10Hz ideal for Autopilot and MARPA applications. *<90seconds cold start
  • Dead Reckoning for heading up 3 minutes following loss of satellite data.
  • Position <1 Meter 10Hz
  • Pitch/Roll Accuracy <1.5° RMS
  • Sleek design
  • Backup magnetic compass with <3° RMS**
  • Heave <30CM RMS
  • Supports GPS, GLONASS, Galileo, BEIDOU, QZSS1 Constellation options with SBAS
  • Options for Flush, Raised or Pole mount
  • 640mm/2ft NMEA2000 Fly-lead
  • Low profile mounting adaptor for various installation types.
  • Low Profile Pole Mount

Specifications

GNSS Constellations ​ GPS, GLONASS, Galileo, BeiDou, QZSS​
SBAS tracking 2-channel, parallel tracking (WAAS, EGNOS,
Position accuracy (no SBAS)​ 1.5 m RMS (no SBAS)
Heading accuracy, static/dynamic (RMS) ​ <2° (RMS)​
Heading dead reckoning (DR) deviation per minute​ 2°/min​ (up to 3 minutes)
Pitch/roll accuracy, static/dynamic (RMS)​ 1.5° (RMS) ​
Heading accuracy, magnetic post 3 min DR ​ <±3° TRUE
Heave accuracy, dynamic (RMS)​ 30cm ​
Update rate​ 10Hz​
Rate of turn 500°/s maximum
Time to position fix 25 s typical
Time to Heading Fix (GNSS) 10 s typical (after you have valid position)
Compass safe distance 0.5 m
Power Input voltage
9—16 V DC Power consumption
1.6 W (multi-GNSS, typical continuous draw at 12 V) Load equivalency number (LEN)
3 Power isolation
Isolated to enclosure Reverse polarity protection
Yes Connector
NMEA 2000® Micro C Other
Weight (no mount) 0.85 kg (1.87 lb)
Operating temperature —25°C to + 70°C (—13°F to +158°F)
Enclosure IPX6 and IPX7


What's in the Box:

  • HS-65 Compass
  • NMEA2000 T-Joiner
  • Flat Mount
