RIGID Industries 230603 is a nominal 30-inch Radiance+ SR-Series single-row light bar with independently controlled RGBW backlighting. Mariners Warehouse SKU 97173 supplies one bar and listed mounting equipment. Choose it for its Broad Spot forward optic and switch-controlled backlight functions, with the actual mounting space and electrical installation confirmed before ordering.
The eight backlight options are Red, Green, Blue, Light Blue, Purple, Amber, White and Rotating: seven colors plus one rotating mode. They are separate from the forward-projecting Broad Spot light rather than eight different forward-beam colors. The bar uses an aluminum-alloy housing, black exposed circuit board, polycarbonate lens and pressure-equalizing vent. Mounting brackets are listed, while harness and switch part 40200 are separate.
Resolve the voltage discrepancy before connection: the store and RIGID Radiance+ SR-Series installation instructions specify 9–15V DC and warn against a 24V-or-higher system, while the current product-page specification table says 9–36V. Follow the exact supplied light’s instructions and obtain model-specific confirmation before using any wider range. Measure the full bar and brackets, identify the separate forward/backlight control circuits and complete the off-road installation under the correct procedure.
Clear Product Details
Review the 16 oz gel format, specifications and application directions.
Surface Guidance
Check fiberglass, gelcoat and finish suitability before use.
Product Support
Ask about your surface and stain type before ordering.
Shipping & Returns
Review shipping information and return conditions before purchase.
Installation & Compatibility Guides
Match the Fixture to Its Location and Power Supply
-
-
Resolve Voltage Before Connection
-

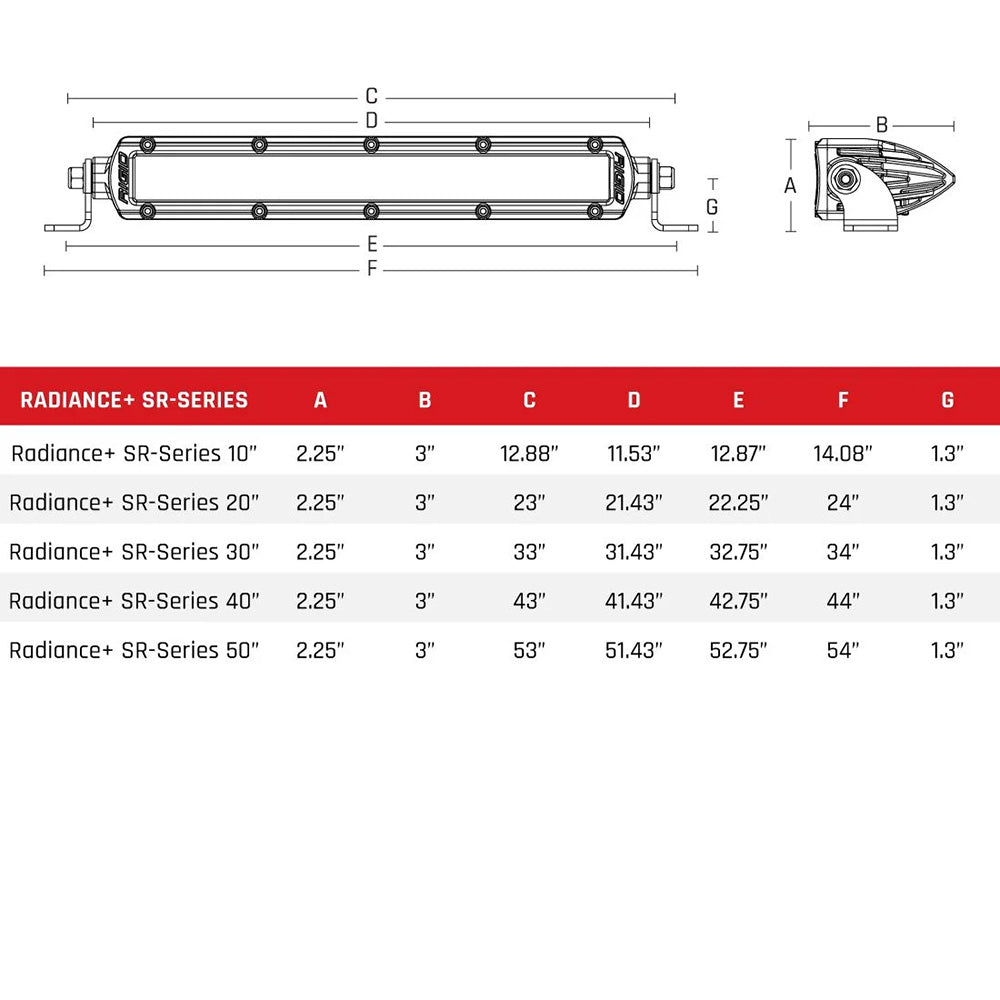

Measure the Complete Bar Assembly
-
Plan Independent Switching
-
Verify Off-Road and Exposure Limits
-
Obtain the Separate Harness and Switch
Radiance+ RGBW Backlighting or SR-Series PRO Spot/Driving?
Continue Your Lighting Selection
Frequently Asked Questions
What does SKU 97173 include?
One light bar and mounting hardware, with manufacturer-listed stainless-steel L-shape brackets and open wire leads. The wiring harness and switch are sold separately; the store and installation instructions identify part 40200.
Are there eight separate backlight colors?
There are seven colors—Red, Green, Blue, Light Blue, Purple, Amber and White—plus a Rotating mode, for eight options.
Does RGBW change the forward beam color?
The listed RGBW options describe the backlight. The forward light uses its separate Broad Spot optic.
Are the harness and switch included?
No. They are sold separately; the store and Radiance+ SR-Series installation instructions identify part 40200.
Can I connect it to 24V?
Do not assume that. The store and installation instructions specify 9–15V and warn against 24V or higher, despite a conflicting 9–36V product-page table. Follow the exact supplied instructions and obtain manufacturer confirmation before using a wider range.
Will any HEISE RGB control box operate it?
No such pairing is established. Use the documented RIGID Radiance+ switch/harness arrangement for the exact light generation.
Is either lighting function approved for road use?
The installation instructions specify off-road use for both the forward light and backlight.
How can I confirm the right selection?
Contact Mariners Warehouse with SKU 97173, MPN 230603, your available mounting span, supply voltage, exact delivered light marking, desired forward/backlight control and proposed harness code.
