Raymarine i60 Instrument Displays Stylish displays for sailboaters! The new i60 instruments are designed to complement the all new Raymarine cSeries and eSeries multifunctional displays. Designed specifically for sailboaters, these stylish, dedicated-function instruments cover wind and close-hauled wind options in analogue and digital formats. Excellent viewing angles for both day and night conditions and simple, push-button controls make i60 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design. Features Large analogue dials Red backlighting for improved visibility SeaTalk and SeaTalk ng interfaces NMEA2000 (compatible) interface Built-in transducer interface 110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation Large controls for ease of use at sea Low power consumption Multiple data source support eliminates potential data conflicts Front mounted design for simple installation

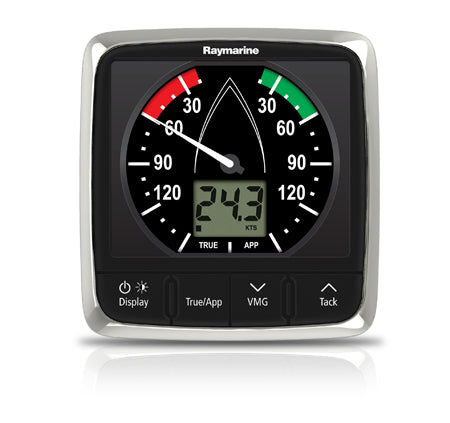

Raymarine i60 Instrument DisplaysRaymarine i60 Wind Instrument Display Analogue and digital data Calculates apparent (relative) and true wind speed/angle (true wind requires SeaTalk speed through water data)
Raymarine i60 Close Hauled Wind Instrument Display Magnified 20 deg - 60 deg display The perfect instrument when a single degree can make all the difference
| i60 Wind | i60 Close Haul Wind |
|---|---|
| E70061 | E70062 |
| Operating Voltage Range | 10 - 16V DC |
|---|---|
| Power Consumption | typically <1W (display only) and 2.4W maximum with transducer connected |
| Current Consumption | 45 to 65mA (display only) and 200mA maximum with transducer connected |
| Operating Temperature Range | -20 degC to +55 degC |
| Storage Temperature | -30 degC to +70 degC |
| Relative Humidity | up to 93% |
| Waterproofing Standard | IPX6 |
| Connections | 2 x SeaTalk ng and transducers |
| Conformance | Europe 2004/108/EC |
