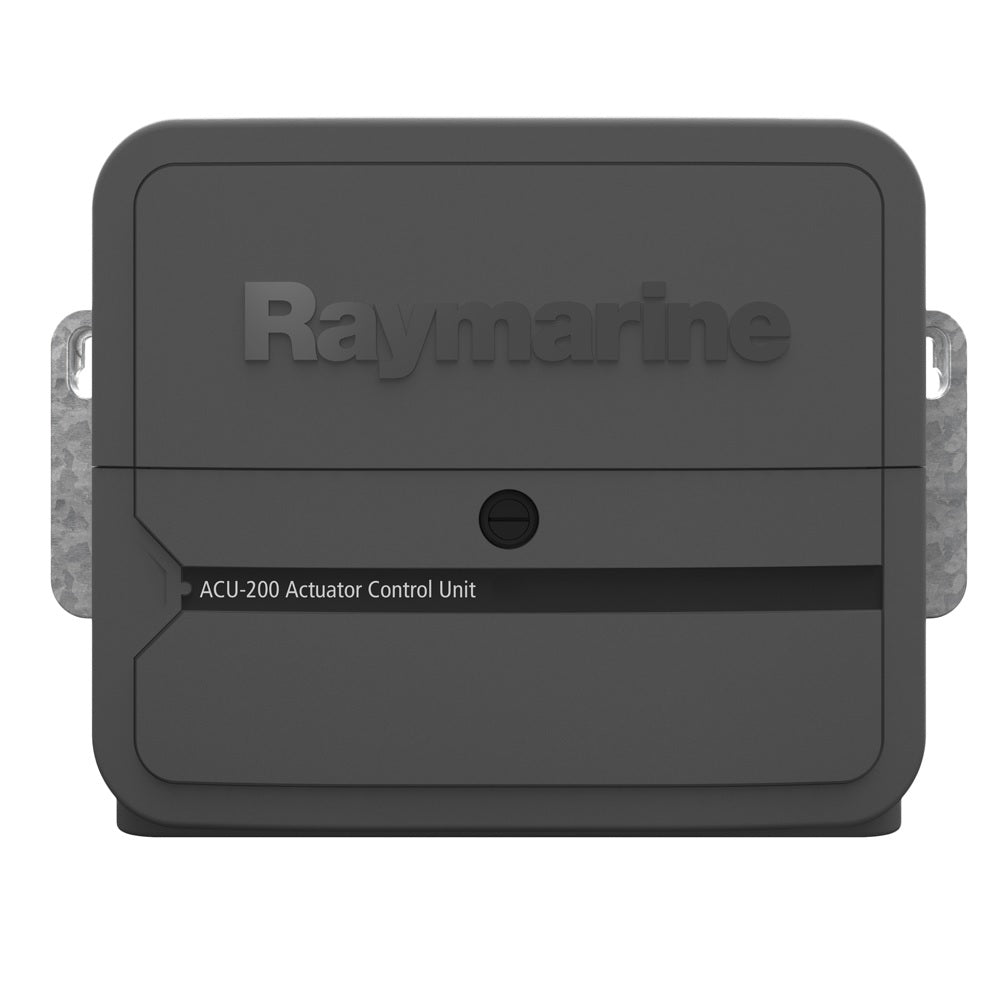

Raymarine ACU-200 Actuator Control Unit
Raymarine ACU-200 Actuator Control Unit

Raymarine ACU-200 Actuator Control Unit MPN - E70099

$999.99
$999.99
$999.99
(-0%)

MPN : E70099

SKU: RAYE70099
Availability: In stock
Product type: Autopilots
Please hurry! Only 1 left in stock
Subtotal: $999.99
Raymarine ACU-200 Actuator Control Unit

Raymarine ACU-200 Actuator Control Unit MPN - E70099

$999.99
Raymarine ACU-200 Actuator Control Unit

Raymarine ACU-200 Actuator Control Unit MPN - E70099

$999.99
Description
Description
x
Raymarine Evolution ACU Specifications
Model ACU-100 ACU-200 ACU-300 ACU-400
E70098 E70099 E70139 E70100
Drive Current Output Maximum continuous 7 A at supply voltage Maximum continuous 15 A at supply voltage Maximum continuous 5 A at supply voltage Maximum continuous 30 A at supply voltage
Drive Clutch Output No clutch connection Up to 2.0 A continuous, selectable between 12 /24 V No clutch connection Up to 4 A continuous at 12 V on 12 V systems, Up to 4 A continuous at 24 V on 24 V systems, Up to 4 A continuous at 12 V on 24 V systems
Connections Rudder reference sensor Power Drive motor Ground Rudder reference sensor Sleep switch Power Drive motor Drive clutch Ground Rudder reference sensor Sleep switch Power Solenoid drive out / return Ground Rudder reference sensor Sleep switch Power Drive motor Drive clutch 723193767962 Ground Digital Input / Output (DIO)
Nominal supply voltage 12 V 12 V or 24 V
Operating voltage range 10.8 V to 15.6 V dc 10.8 V to 31.2 V dc
Power consumption (standby) - main power supply 300 mA (12V) 300 mA (12/24 V)
Power consumption (standby) - SeaTalk ng power supply No power supply to SeaTalk ng &nbs p; 20 mA (12V)
SeaTalk ng LEN (Load Equivalency Number) 1
SeaTalk ng Power out No power supply to SeaTalk ng 3 A at 12 V (fuse protected at 3 A)
Data connections SeaTalk ng
Installation environment Operating temperature: -20 degC to +55 degC (-4 degF to +131 degF) Storage temperature: -30 degC to +70 degC (-22 degF to +158 degF) Relative humidity: max 93%
Waterproof rating Connector panel: IPX2 Drive electronics: IPX6 Drip resistant
Dimensions (W x H x D) 180 mm x 140 mm x 52 mm (7.1 in x 5.5 in x 2.0 in) 285 mm x 211.5 mm x 64.5 mm (11.2 in x 8.3 in x 2.5 in)
Weight 0.6 kg (1.32 lbs) 2.2kg (4.84 lbs)
Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2

Product Identification

  • Brand: Raymarine
  • Product type: Autopilots
  • Manufacturer part number: E70099
  • SKU: RAYE70099
  • UPC/GTIN: 723193768914
