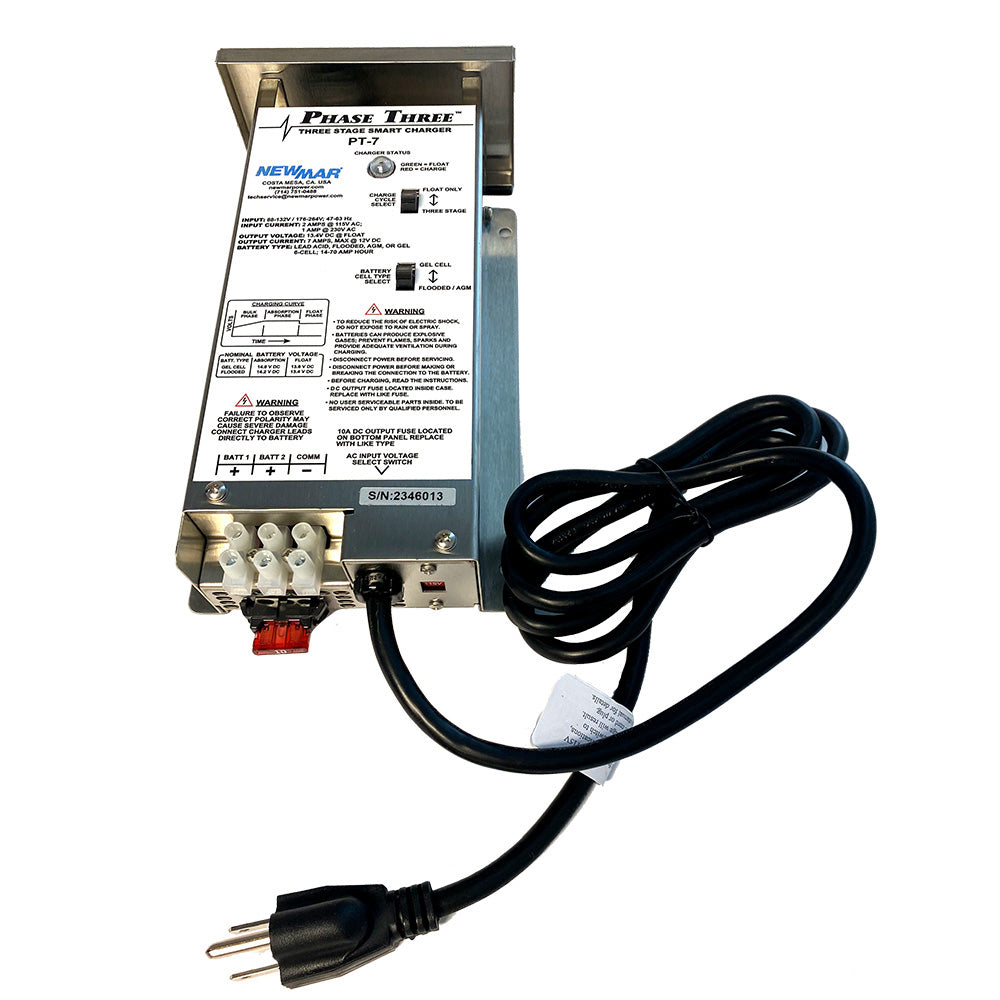

    The Newmar PT-7 is a Phase Three series battery charger for 12-volt systems on workboats, commercial and military vessels and recreational craft. It delivers up to 7 A across 2 output banks. It is a standalone charger, not an inverter.

    Smart circuitry runs a three-stage charge of bulk, absorption and float, and a selector switch sets the output for gel-cell, flooded lead-acid or AGM batteries. This compact model does not take the temperature sensor or the remote panel offered for larger Phase Three chargers. Newmar recommends a battery capacity of 14–70 Ah.

    The AC input accepts 88–132 or 176–264 VAC, 50–60 Hz, so the charger runs on 115 V or 230 V shore power. A stainless steel case with a white powder coat, polyurethane-coated circuitry, current limiting, thermal protection and forced-air cooling suit marine conditions, and an optional drip shield is available. The charger can also act as a regulated DC power supply.

    Clear Product Details

    Review the 16 oz gel format, specifications and application directions.

    Surface Guidance

    Check fiberglass, gelcoat and finish suitability before use.

    Product Support

    Ask about your surface and stain type before ordering.

    Shipping & Returns

    Review shipping information and return conditions before purchase.

    Installation & Compatibility Guides

    Choose the Right Battery Charger for Your System

    The Newmar PT-7 is an installed 12 V marine charger. Check these six points before you buy.

    1. Confirm 12 V Batteries

      The PT-7 charges 12 V batteries only. Newmar makes 24 V Phase Three models separately.

    2. Check Battery Capacity

      Newmar recommends 14–70 Ah of battery capacity for this model.

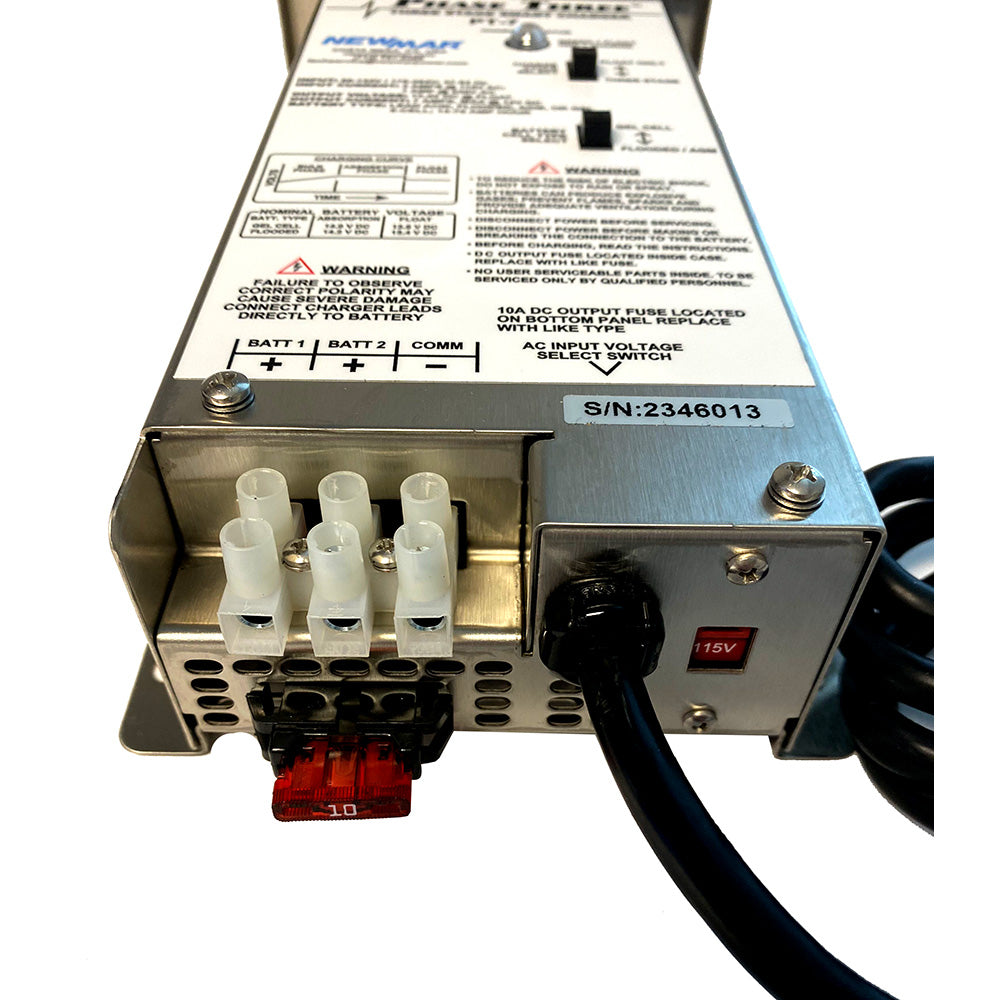

    3. Assign the 2 Output Banks

      Wire each bank to its own output. Total output is 7 A.

    4. Set the Battery Type

      Use the selector switch for gel-cell, flooded lead-acid or AGM.

    5. Plan the AC Input

      The input accepts 88–132 or 176–264 VAC. Protect the circuit to suit.

    6. Note the Model Limits

      The PT-7 does not accept the temperature sensor or the RP remote panel.

    Battery Charger, Inverter or Combined Unit?

    A battery charger only recharges batteries from shore or generator power. An inverter/charger adds AC output from the battery and an automatic transfer switch. The Phase Three series is a dedicated marine charger for systems that already have an inverter or do not need one.

    Compare the PT-14W (14 A) for other 12 V output levels in this collection.

    Find the Right Power Equipment

    Use these collections to compare inverter/chargers, inverters and other RV and marine equipment. A collection link is for browsing and does not confirm compatibility.

    1. Compare Charger/Inverter Combos

      Compare battery chargers and combined inverter/chargers by charge current, battery voltage and number of outputs.

      Browse Charger/Inverter Combos

    2. Explore Power Inverters

      Browse standalone inverters if you also need AC power from the battery. This link does not establish a compatible pairing.

      View Power Inverters

    3. Explore Automotive & RV Accessories

      Return to the parent collection to find another product family for your RV, vehicle or boat project.

      Browse Automotive/RV

    Related Products

    Example product title
    $472.00
    $519.20
    $472.00
    Example product title
    $472.00
    $519.20
    $472.00
    Example product title
    $472.00
    $519.20
    $472.00
    Example product title
    $472.00
    $519.20
    $472.00
    Example product title
    $472.00
    $519.20
    $472.00
    Example product title
    $472.00
    $519.20
    $472.00
    Example product title
    $472.00
    $519.20
    $472.00
    Example product title
    $472.00
    $519.20
    $472.00
    Example product title
    $472.00
    $519.20
    $472.00
    Example product title
    $472.00
    $519.20
    $472.00

    Frequently Asked Questions

    Is the Newmar PT-7 an inverter?
    No. It is a battery charger only. Our catalog data lists inverter fields for this item, but it does not produce AC power.
    How many batteries can it charge?
    It has 2 output banks, sharing a total of 7 A.
    Which battery types does it support?
    Gel-cell, flooded lead-acid and AGM, selected with a switch.
    What AC input does it accept?
    88–132 or 176–264 VAC, 50–60 Hz, according to the Newmar specifications on our store listing.
    Is a temperature sensor available?
    No. The temperature sensor is not available for the PT-7.
    Is a remote panel available?
    No. The RP remote panel is not compatible with the PT-7.
    What battery capacity suits it?
    Newmar recommends 14–70 Ah.
    Can it run loads without a battery?
    Yes. Newmar states it can act as a regulated power supply.
