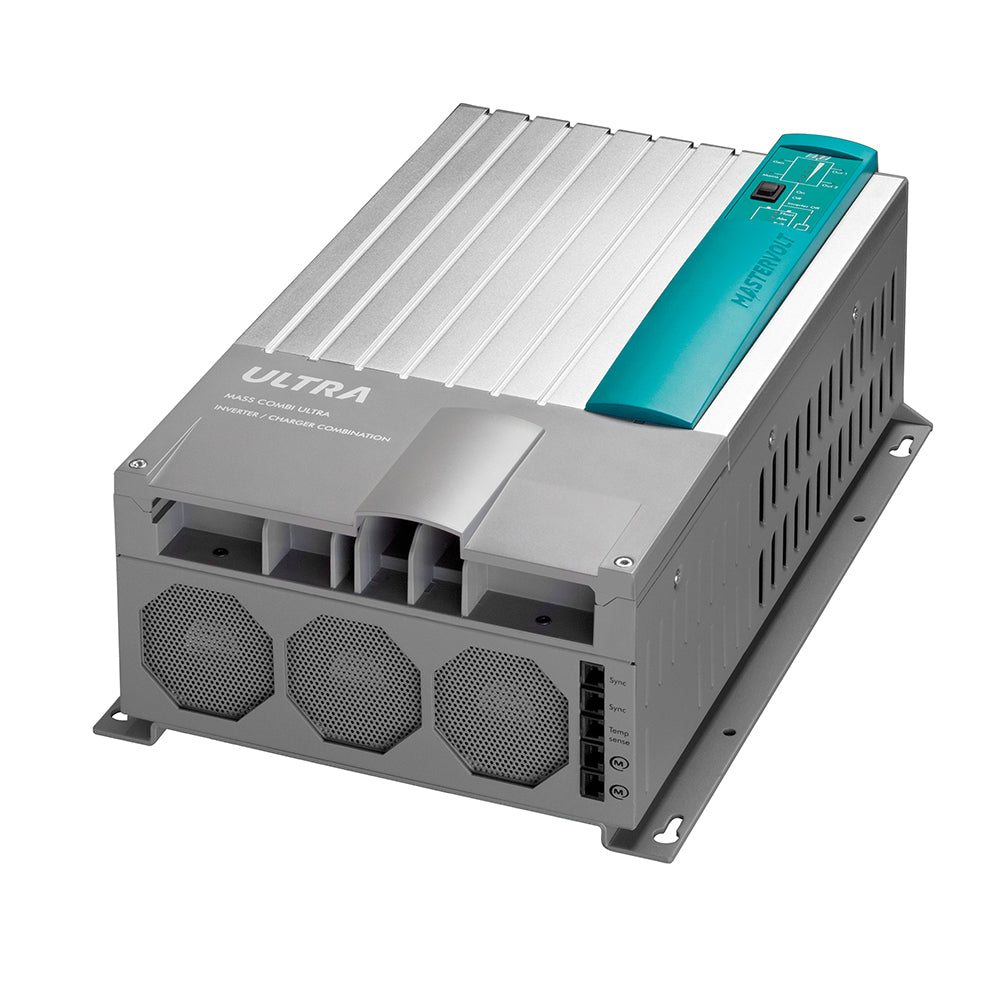

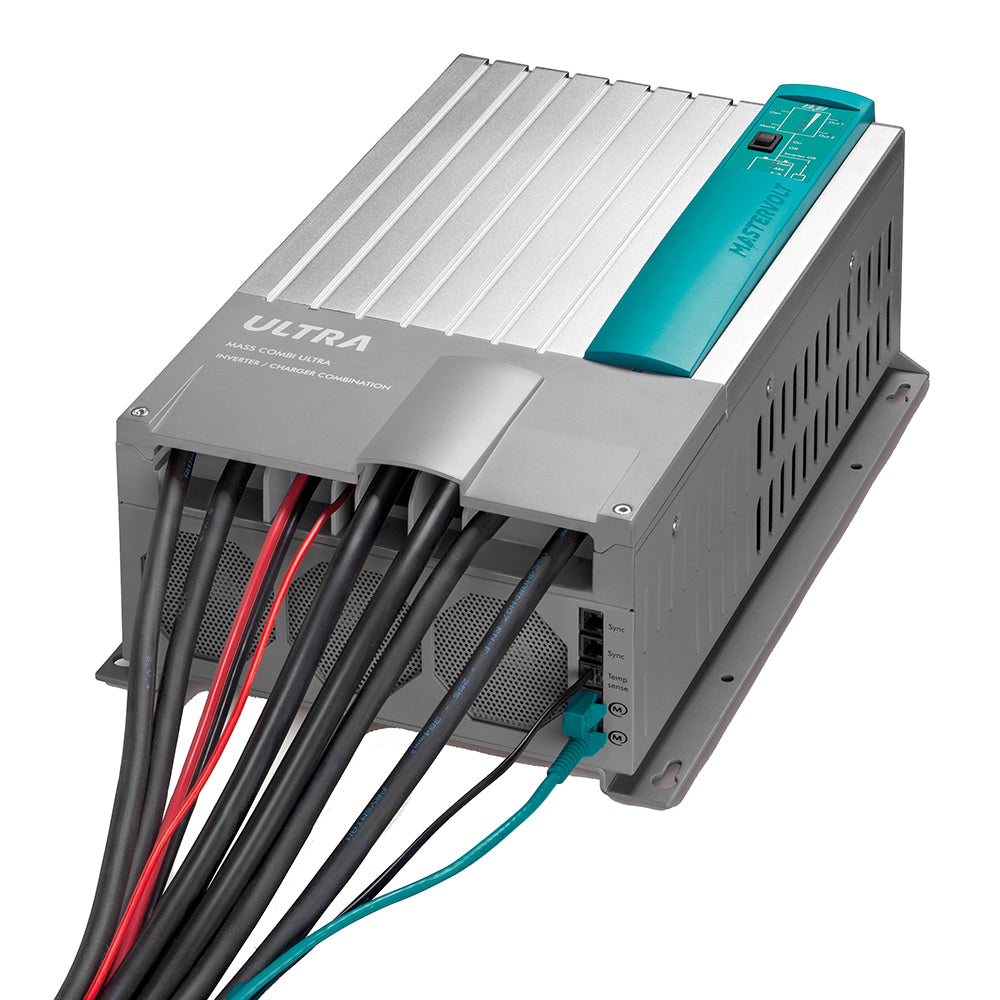

The Mastervolt Mass Combi Ultra 24/3500-100, product code 38023500, is a 24-volt inverter/charger for 230 V systems on yachts, workboats and off-grid installations. Mastervolt rates it at 3500 W continuous at 40 °C and 7000 W peak, with true sine wave output adjustable from 180 to 260 V at 50 or 60 Hz. This is a 230 V model, not designed to power standard North American 120 V, 60 Hz appliances.
The main charger delivers up to 100 A at 28.5 V from a 184–275 V AC input. A 10 A secondary output, selectable for 12 V or 24 V, can charge a start or auxiliary battery. A built-in MPPT solar regulator accepts 30–100 V from the panels, up to 750 Wp, and charges at up to 25 A, so solar and shore power share one installation.
Two AC inputs (30 A shore and 50 A generator, both switched) and two AC outputs transfer in under 1 ms, which Mastervolt describes as seamless. Power Assist adds battery power to a weak shore or generator supply. The unit is MasterBus compatible, IP23 when vertically mounted, and listed to CE, E-mark, ABYC and RMRS. Mastervolt recommends a 200–600 Ah battery bank.
This listing is for one Mastervolt Mass Combi Ultra 24/3500-100 230 V inverter/charger, product code 38023500. The shipping options and delivery estimate for your address appear at checkout. Our full terms are on the shipping policy page: https://marinerswarehouse.com/policies/shipping-policy
Before installation, confirm that your system uses 230 V AC and a 24 V battery bank in the 200–600 Ah range. Mount the 15.3 kg unit vertically on a solid surface in a dry, ventilated location to keep its IP23 rating, and take DC cable size, fusing and AC wiring from the Mastervolt manual.
Review the 16 oz gel format, specifications and application directions.
Check fiberglass, gelcoat and finish suitability before use.
Ask about your surface and stain type before ordering.
Review shipping information and return conditions before purchase.
Installation & Compatibility Guides
The Mass Combi Ultra combines an inverter, a main and secondary charger, a solar regulator and dual-input transfer. Check these six points before you buy.
This model outputs 180–260 V. It does not power 120 V, 60 Hz appliances.
The 24/3500-100 accepts 19–32 V DC. It is for 24 V battery banks only.
Mastervolt recommends 200–600 Ah, based on gel batteries. Other types may differ.
Keep panel voltage within 30–100 V and the array at or below 750 Wp.
Shore input is 30 A and generator input is 50 A. Protect each circuit to suit.
IP23 protection applies only with vertical mounting in a dry, ventilated space.
A standalone inverter, battery charger and solar regulator would each need their own mounting, wiring and settings. The Mass Combi Ultra combines all three with dual AC inputs and outputs, so shore power, a generator, solar and the battery work as one system.
Mastervolt also offers a Mass Combi Pro version without the solar input and secondary charger. For 120 V systems, compare the CombiMaster 120 V models in this collection.
Use these collections to compare inverter/chargers, inverters and other RV and marine equipment. A collection link is for browsing and does not confirm compatibility.
Compare combined inverter/chargers and chargers by inverter output, charge current, battery voltage and AC configuration.
Browse standalone inverters if you already have a separate charger. This link does not establish a compatible pairing.
Return to the parent collection to find another product family for your RV, vehicle or boat project.
Need Help?
Planning a 230 V Mass Combi Ultra system with solar? Send us your battery bank, solar array and AC sources, and our team will help you check the fit.
