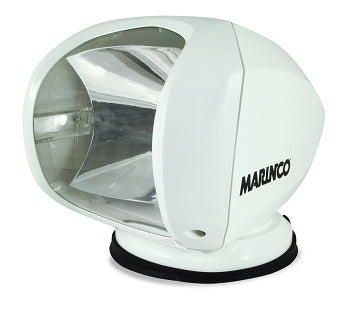

Marinco SPL-12W Spotlight 12/24V 100W Halogen MPN - SPL-12W

• Universal 12/24 volt circuit with bright 100W, H3 halogen bulb
• UV resistant, IP56 Weatherproof ABS housing and Lexan(R) lens
• Double O-ring sealed housing, designed for the harsh marine environment ? moisture, salt, shock and vibration tested
• Universal snap-in mounting system (can be mounted upside down)
• Super-quiet, all-weather motor with limit stops provides a full range of coverage
• 370 deg sweep and 120 deg Tilt (75 deg up and 45 deg down)
• One touch auto sweep and S.O.S. function
• Wireless dash mount remote standard; (hard wired & handheld remotes are optional)
• 5-Year limited warranty

Bulb: 100 Watt, H3 Halogen
Power (Input voltage): 12V or 24V
Current draw (idle/in use): 0.03 amps / 7.0 amps
Peak Beam Intensity: 210,000 Cp
Peak Beam Distance: 3,000 ft (917 m)
Lux @ 82 feet (25 m): 226 Lux
Coverage at 82 feet (25 m): 180 sq ft (15'H x 12'W) (16.7 sq m [4.6 m x 3.6 m])
Rotation: 370 deg (built in limit stops)
Tilt: 120 deg Tilt (75 deg up & 45 deg down)
Wireless range: 200 ft (65 m)
Dimensions: 7.5"W x 7.5"H x 9.25"D (19cm x19cm x 23.5cm)
Weight: 3.30 lbs (1.5 kg)
Housing material: UV resistant PC/ASA
Lens material: UV resistant Lexan(R)
operating temp range: 5 degF?113 degF (-15 degC?45 degC)
IP Rating: IP56

Product Identification

• Brand: Marinco
• Product type: Lighting
• Manufacturer part number: SPL-12W
• SKU: MRNSPL12W
• UPC/GTIN: 93344050947
