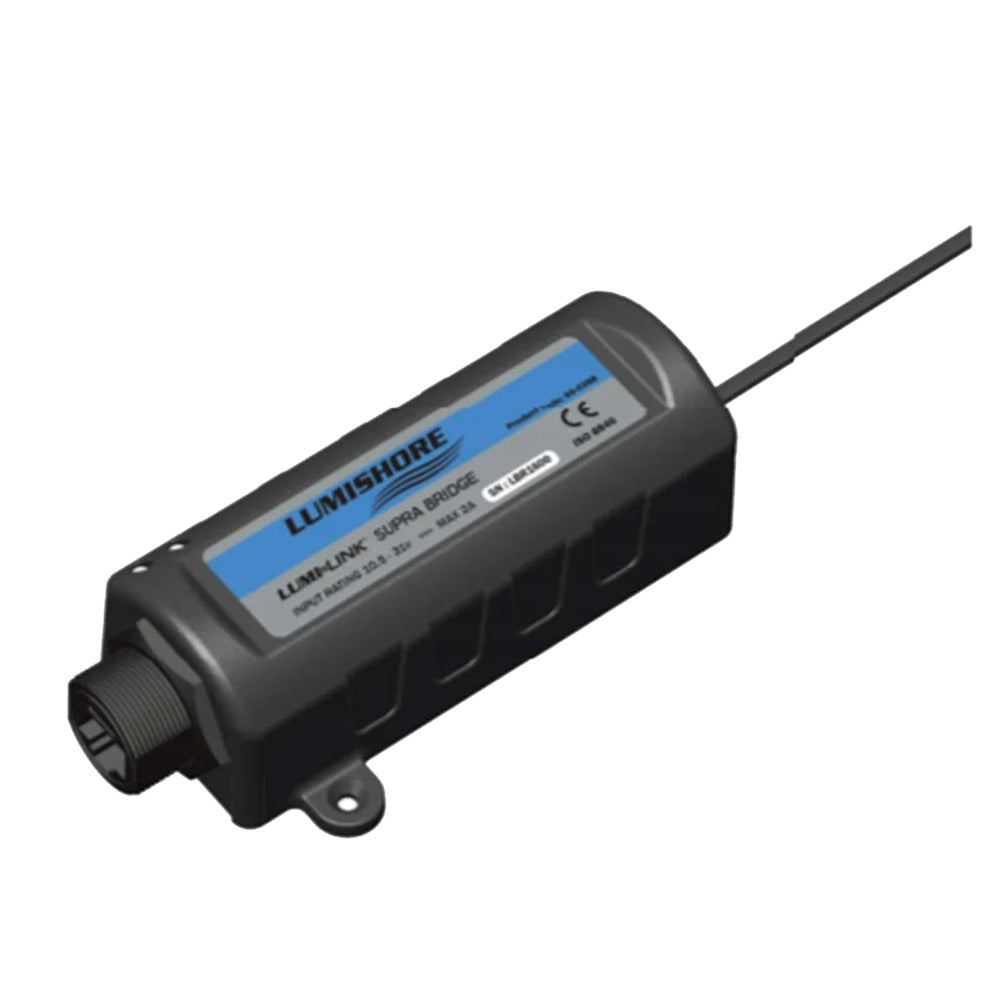

Lumishore SUPRA Bridge Module MPN - 010-04361-00

SUPRA Bridge Module

The SUPRA Bridge Module allows full feature control of your SUPRA Series light systems from your connected MFD, smart device, and/or optional EOS-LUX-SUPRA Display (excl. SMX23).

The SUPRA Bridge Module configuration genie will find and configure all lighting fixtures in the system when turned on.

Features:

• Full control of your SUPRA lights from a certified MFD or EOS-LUX-SUPRA Display
• WiFi Control via Connected device (via MFD WiFi or Local WiFi Network)
• Specially Designed for Ease of Installation
• Plug and Play Connections

Specifications:

• Ingress Protection Rating: IP67
• Supply Voltage Range: 10.5-31 VDC
• Max Current Draw 12/24V: 2A
• Reverse Polarity Protection: Yes
• Load Dump Protection: Yes
• IOS 8846 (Ignition Protection): Yes

Manufacturer Part Number: 010-04361-00
