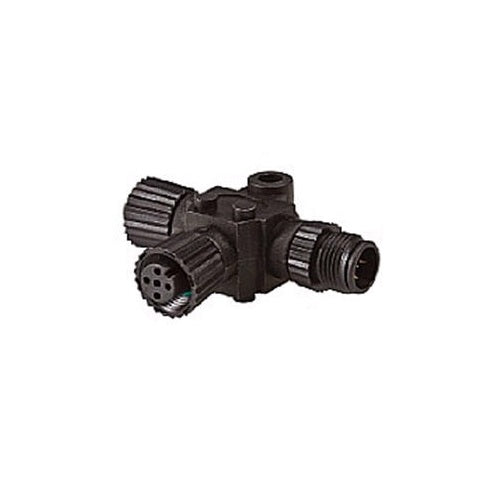

Lowrance N2K-T-RD NMEA 2000 Tee-Connector MPN-000-0119-79

Si-Tex SP70 Autopilot with Rotary Rudder Reference No Drive

• Ultra-compact, waterproof Control Unit has simple keypad operation and large LCD display of heading course, rudder angle, operating mode and error messages.
• Control Unit can be used as dash-mounted keypad or quickly and easily removed from mounting bracket for use as a handheld portable.
• Additional steering stations can be easily added with optional plug-in connectors.
• Exceptionally easy to use. Just steer to desired course, press the PILOT key and the system takes over to steer you on your way. Automatically.
• Built-in NMEA-0183 Loran/GPS interface for precise course-line navigation along routes.
• Bold, backlit displays with ten levels of brightness for clear reading in any light.
• Digital displays of rudder angle and operation mode in use, constantly giving you up-to-the-minute operating status.
• Automatic Sea State and Trim Controls and ten selectable levels of rudder sensitivity with high and low speed settings for smooth, precise steering.
• Rudder feedback verifies autopilot's commands.
• Ghost Rudder backup allows autopilot to use memory of rudder movements to calculate new movements in event of rudder feedback failure.
• Heading Output feature allows you to stabilize radar display.
• Built-in diagnostic and self tests, plus visual and audible alarms.
• Power Steering mode offers convenient push-button steering. Stand By mode for manual steering situations.
• Optional analog Rudder Angle Indicator for easy, at-a-glance reading of exact rudder position.
• Works with solenoid valves also.

The SI-TEX SP-70 Autopilot is Si-Tex's most reliable workhorse autopilot for cruising and fishing activity. Designed for most any boat and easily installed on Outboard, Inboard and Sterndrive vessels with Hydraulic or Mechanical steering systems.

• SP70 Control
• Compass
• Computer
• Rotary Rudder Reference
