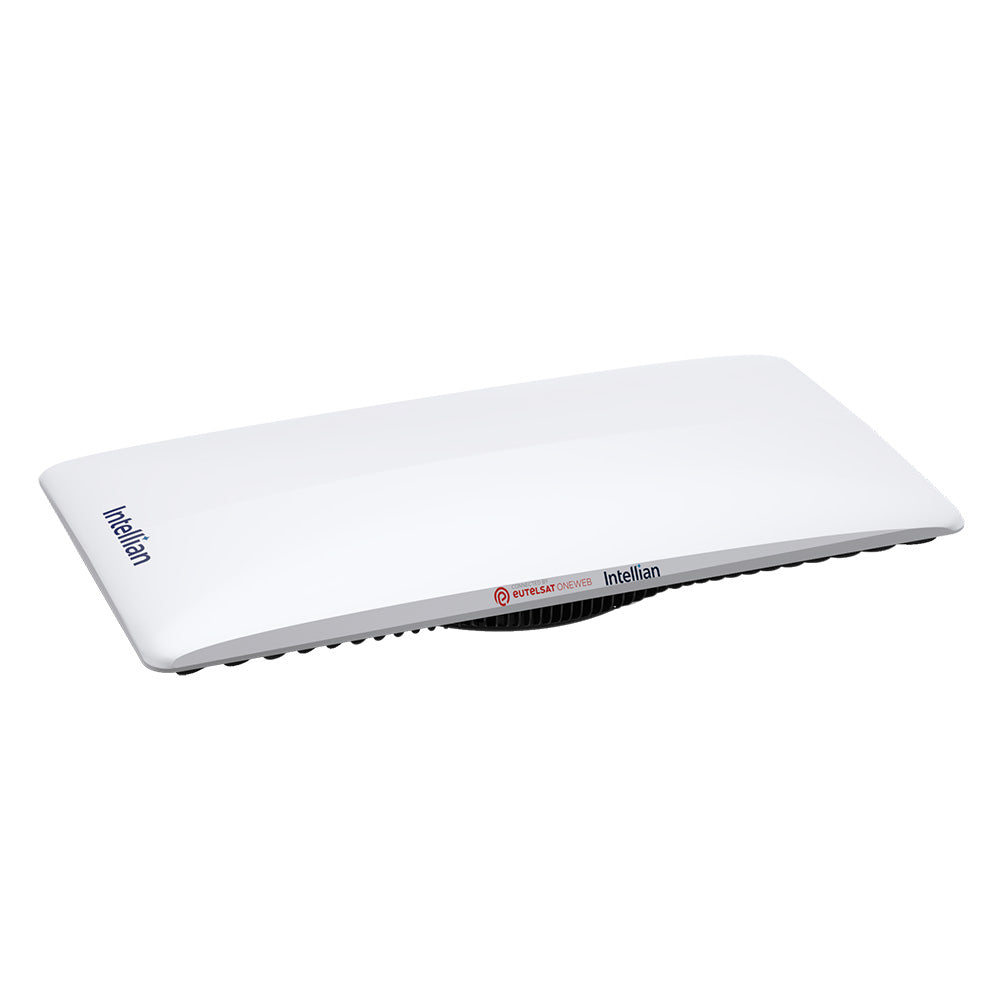

Intellian KVH Enterprise Maritime Outdoor Antenna Unit MPN - OS-OW11FFG

Enterprise Maritime Outdoor Antenna Unit

The OW11FM is the ideal flat-panel user terminal for the Cruise, Energy, Merchant, and Ferry markets, delivering low-latency, high-speed connectivity and reliability for critical communications, crew welfare, safety, route planning, and entertainment.

Features:

• Optimized Performance - Utilizing Intellian’s innovative antenna design, the OW11FM delivers the maximum throughput allowed on the OneWeb network. Offering the highest link margin, performance is guaranteed even over scan and at the lowest elevation angles, ensuring that the highest demands of maritime and land mobile customers.
• Seamless Connectivity - The OW11FM features Intellian’s advanced tracking technology, extended scan range, and blockage mitigation that improve connection reliability and availability even while in motion. Delivering the best performance at scan, the innovative flat panel technology facilitates smooth, reliable handovers, which ensure seamless and uninterrupted connectivity.
• Harsh Environment Performance - The OW11HM is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to +131 °F).
• Simplified Installation - Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
• Customer Network Exchange - Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Enterprise Flat Panels, there are three CNX variants offered for specific deployments: CNX-WIFI, CNX-RACK, and CNX-MOBILITY.
• Easily Deployable System - The lightweight design and optimal form factor of the OW11FM enable easy installation by a single person. Paired with Intellian’s Maritime mount adapter kit, the UT is easily installed on pole, mast, and pedestal mounts commonly used in the Maritime market. Installation is further simplified through the use of combined power and data over a single coaxial cable connecting the below-deck CNX units. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.
• Blockage Mitigation Solution - Blockage Mitigation Solution is designed to overcome known and unavoidable blockages, enabling seamless, uninterrupted service in the primary-primary configuration. Utilizing a single service plan, the OW11FL (land fixed) and OW11FM (maritime) are the only flat panel user terminals to support this unique, more resilient, and cost-effective solution on Eutelsat's OneWeb LEO network. This is ideal for installations where an obstruction is unavoidable, such as a cell tower in cellular backhaul applications, or a ship’s superstructure in maritime environments.
  All existing Enterprise Series Flat Panels support the Blockage Mitigation Solution, which requires two user terminals and a CNX-Rack.

Technical Specifications:

• Panel Dimensions - 38.2" x 19.7" x 5.1"
• Panel Weight - 45.1 lbs
• Operating Temperature - -40 °C to +55 °C (-40 °F to +131 °F)
• EIRP (Dual Carrier) - +36.6 dBW
• Ingress - 1P66
• G/T - 10.7 dB/K
• Interface - F-Type Port SMA Port (R-GNSS)
• Peak Downlink Data Rate - 195 Mbps
• Peak Uplink Data Rate - 32 Mbps

Manufacturer Part Number: OS-OW11FFG
