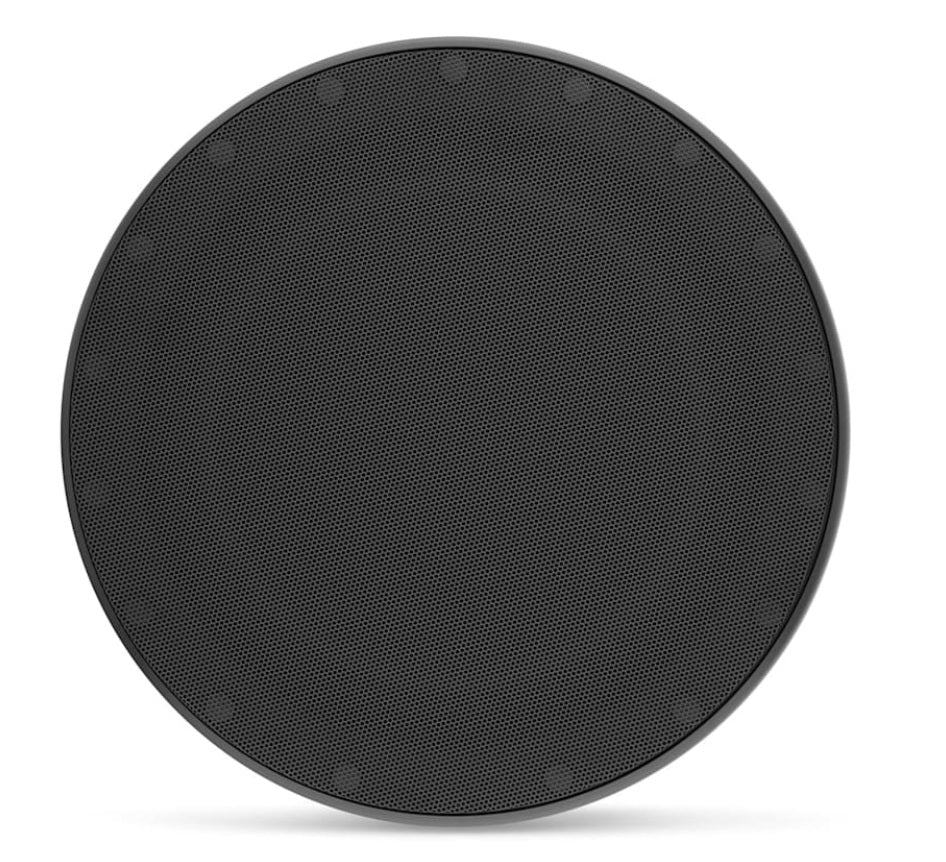

JL Audio M6 10-Inch Subwoofer Black LUXe Grille Single Speaker
M6-10IB-L-SbSb-4 93916
Model: 010-03869-00Optimized for high-powered operation, M6 marine subwoofers can be installed in various applications and are built to withstand the rigors of marine use.
Specifications| Size | 10 in |
|---|---|
| Color | Black |
| Physical dimensions (Diameter) | 10.75in (273 mm) |
| Physical dimensions (Depth) | 7.53in (191 mm) |
| Weight | 13.2 lbs (6.0 kg) |
| Speaker type | Infinite Baffle or Enclosed-use Subwoofer |
| Continuous power handling (RMS) | 250 W |
| Sensitivity (SPL @ 1 W/1 m) | (IB): 86.1 dB, (W): 86.4 dB |
| Nominal impedance | 4 Ohms |
| Recommended amplifier power (RMS) | 75-250 W |
| Cone material | Injection-molded, mica-filled polypropylene |
| Warranty | 3 years |
| Speaker connections | Spade Connectors |
| Mounting Dimensions | Mounting diameter clearance |
| 6.98in (177 mm) | Frontal grille protrusion |
| 0.55in (14 mm) | Mounting hole |
| 10.5625in (268 mm) | Bolt hole circle |
| 11.46in (291 mm) | Driver displacement |
| 0.099 cu ft (2.80 L) | Free Air Resonance (FS) Parameters |
| (IB): 43.76 Hz, (W): 34.58 Hz | Electrical Q (Qes) |
| (IB): 0.907, (W): 0.522 | Total Q (Qts) |
| (IB): 0.840, (W): 0.496 | Equivalent Compliance (Vas) |
| (IB): 0.98 cu ft (27.75 L), (W): 1.22 cu ft (34.49 L) | One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) |
| (IB/W): 0.52in (13 mm) | Reference Efficiency (NO) |
| 0.28% | Effective piston area (SD) |
| (IB/W): 50.11 in sq (0.0323 m sq) | DC resistance (RE) |
| (IB): 4.543 Ohms, (W): 3.619 Ohms |
