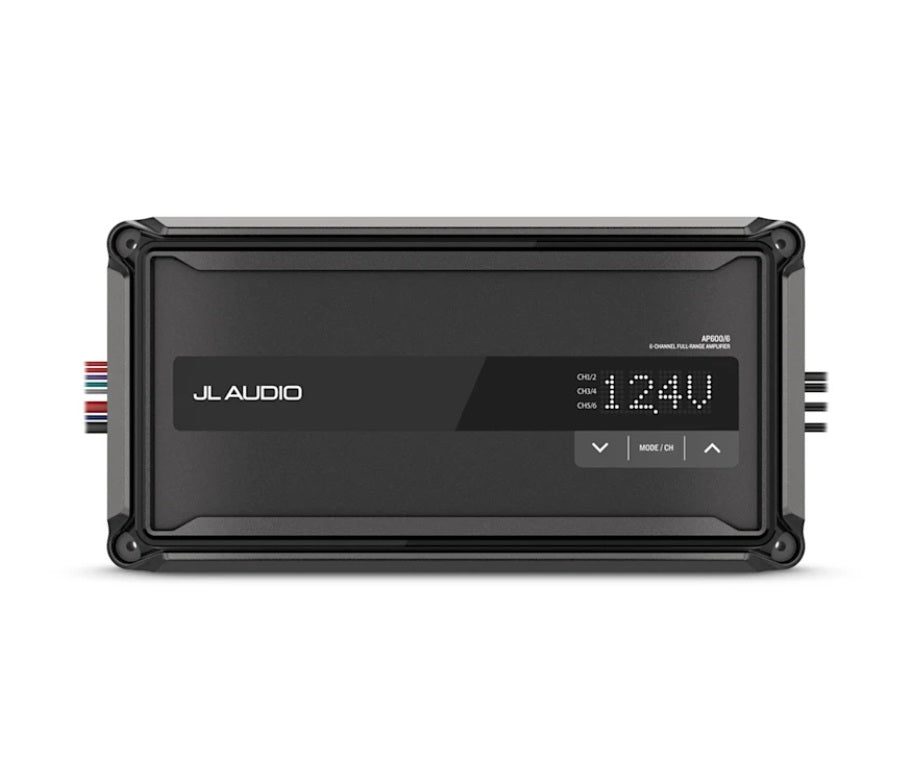

JL Audio AP600/6 Amplifier 600 Watt 6 Channel
JL Audio AP600/6 Amplifier 600 Watt 6 Channel

JL Audio AP600/6 Amplifier 600 Watt 6 Channel MPN - 010-03430-00

$629.99
$629.99
$629.99
(-0%)

MPN : 010-03430-00

SKU: JLA0100343000
Availability: In stock
Product type: Audio/Video
Please hurry! Only 4 left in stock
Subtotal: $629.99
JL Audio AP600/6 Amplifier 600 Watt 6 Channel

JL Audio AP600/6 Amplifier 600 Watt 6 Channel MPN - 010-03430-00

$629.99
JL Audio AP600/6 Amplifier 600 Watt 6 Channel

JL Audio AP600/6 Amplifier 600 Watt 6 Channel MPN - 010-03430-00

$629.99
Description
Description
x

JL Audio AP600/6 Amplifier 600 Watt 6 Channel

Model: 010-03430-00
  • 600-WATT 6 CHANNEL AMPLIFIER: This staggered-power 6 channel amplifier can power up to a maximum of six pairs of speakers or four pairs of speakers and one subwoofer.
  • EASY TUNE FEATURE: For additional optimization, pair with a Fusion(R) stereo with built-in DSP, and download the Fusion(R) Audio app for selectable profiles. This enables the Easy Tune feature, which streamlines amplifier setup to ensure superior sound quality and system protection.
  • CLASS-D AMPLIFIER TECHNOLOGY: The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.
  • RUGGED DESIGN: These amplifiers offer superior levels of durability and are built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.
Specifications
General Channels
6 Physical dimensions (Height)
1.86in (47 mm) Physical dimensions (Width)
11.81in (300 mm) Physical dimensions (Depth)
5.90in (150 mm) Operating voltage
9-16 VDC Water and dust rating
IP67 Operating temperature range
4 deg to 149 deg F (-20 deg to 65 deg C) Warranty
3 years Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm less than 1% THD) Channels 1-4: 50 W x 4/150 W x 2 (Bridged); Channels 5-6: 100 W x 2/300 x 1 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm less than 1% THD) Channels 1-4: 75 W x 4; Channels 5-6: 150 W x 2
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Greater than 70 dB
Frequency response (+0, -1dB) 20 Hz-20 kHz
Input sensitivity @ RCA inputs Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Current consumption (Standby) Less than 1mA
Current consumption (Idle) 1000mA-1500mA
Fuse rating 70A
Recommended fuse type(s) AFS, AGU or MaxiFuse
Min. copper power/Ground wire gauge 4 AWG wire
Protection circuits Input under/over voltage Over temperature Output short circuit

What's in the Box:
  • JL Audio AP amplifier
  • Four mounting screws
  • Documentation
