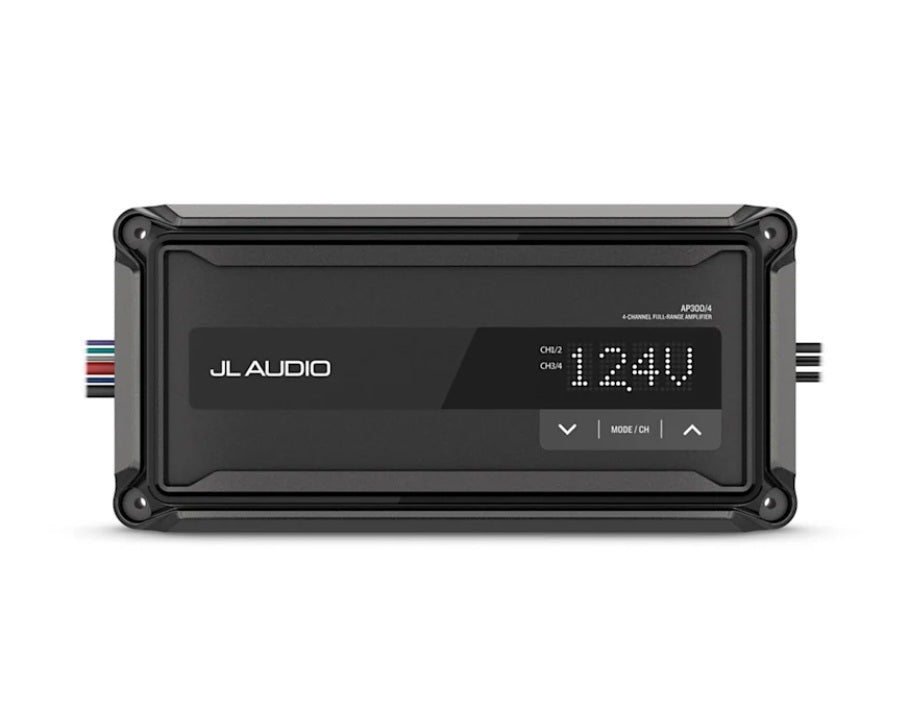

JL Audio AP300/4 Amplifier 300 Watt 4 Channel

Model: 010-03429-00
  • 300-WATT 4 CHANNEL AMPLIFIER: This 4 channel amplifier can power up to a maximum of four pairs of speakers or two pairs of speakers and one subwoofer.
  • EASY TUNE FEATURE: For additional optimization, pair with a Fusion(R) stereo with built-in DSP, and download the Fusion(R) Audio app for selectable profiles. This enables the Easy Tune feature, which streamlines amplifier setup to ensure superior sound quality and system protection.
  • CLASS-D AMPLIFIER TECHNOLOGY: The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.
  • RUGGED DESIGN: These amplifiers offer superior levels of durability and are built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.
Specifications
General Channels
4 Physical dimensions (Height)
10.43in (265 mm) Physical dimensions (Width)
10.43in (265 mm) Physical dimensions (Depth)
4.90in (125 mm) Operating voltage
9-16 VDC Water and dust rating
IP67 Operating temperature range
4 deg to 149 deg F (-20 deg to 65 deg C) Warranty
3 years Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm less than 1% THD) 50 W x 4/150 W x 2 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm less than 1% THD) 75 W x 4
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Greater than 70 dB
Frequency response (+0, -1dB) 20 Hz-20 kHz
Input sensitivity @ RCA inputs Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Current consumption (Standby) Less than 1mA
Current consumption (Idle) 700-750mA
Fuse rating 35A
Recommended fuse type(s) AFS, AGU or MaxiFuse
Min. copper power/Ground wire gauge 4 AWG wire
Protection circuits Input under/over voltage Over temperature Output short circuit

What's in the Box:
  • JL Audio AP amplifier
  • Four mounting screws
  • Documentation
