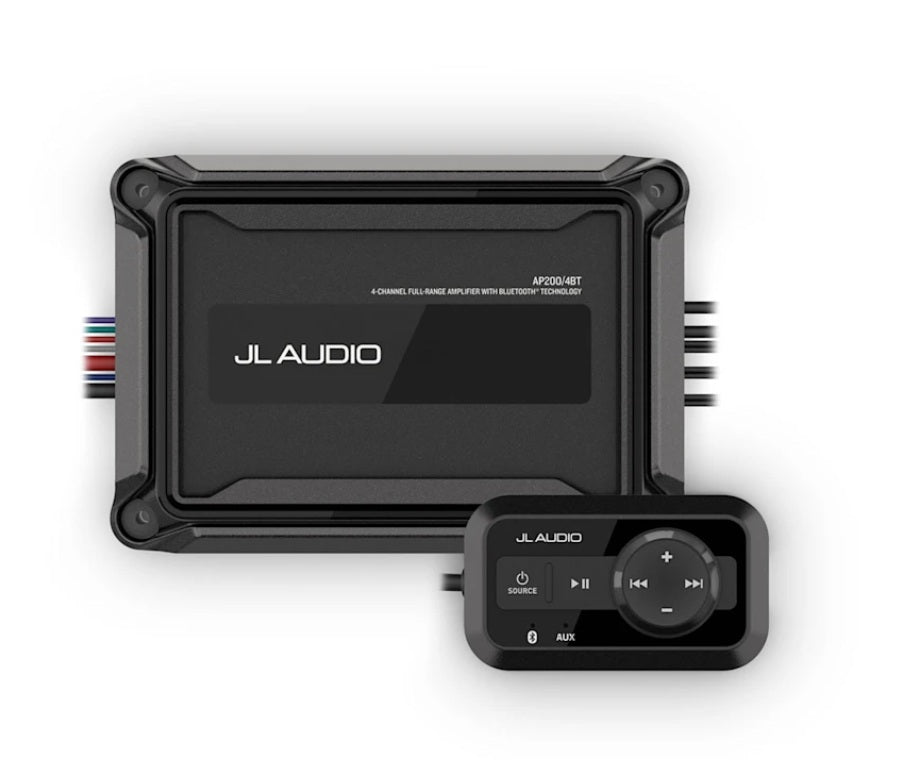

JL Audio AP200/BT Amplifier with Bluetooth and Remote
JL Audio AP200/BT Amplifier with Bluetooth and Remote

JL Audio AP200/BT Amplifier with Bluetooth and Remote MPN - 010-03431-00

$549.99
$549.99
$549.99
(-0%)

MPN : 010-03431-00

SKU: JLA0100343100
Availability: In stock
Product type: Audio/Video
Please hurry! Only 2 left in stock
Subtotal: $549.99
JL Audio AP200/BT Amplifier with Bluetooth and Remote

JL Audio AP200/BT Amplifier with Bluetooth and Remote MPN - 010-03431-00

$549.99
JL Audio AP200/BT Amplifier with Bluetooth and Remote

JL Audio AP200/BT Amplifier with Bluetooth and Remote MPN - 010-03431-00

$549.99
Description
Description
x

JL Audio AP200/BT Amplifier with Bluetooth and Remote

Model: 010-03431-00
  • CLASS-D AMPLIFIER TECHNOLOGY: The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.
  • STREAM ON THE GO: This amplifier pairs with your compatible smartphone for seamless audio streaming and includes a wired remote that can be flush-, surface- or bar-mounted. Its compact size makes it a perfect addition to your small boat, jet ski or overland vehicle.
  • RUGGED DESIGN: The included remote is IPX7-rated and the amplifier is built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.

POWER THE MOMENT: With this tough and ultracompact 4 channel amplifier featuring Bluetooth(R) technology, you can enjoy every note from every part of your boat.

Specifications
General Channels
4 Channel Physical dimensions (Height)
1.85in (47 mm) Physical dimensions (Width)
7.28in (185 mm) Physical dimensions (Depth)
4.90in (125 mm) Operating voltage
9-16 VDC Water and dust rating
IP67 Operating temperature range
4 deg to 149 deg F (-20 deg to 65 deg C) Warranty
3 years Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm less than 1% THD) 40 W x 4/100 W x 2 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm less than 1% THD) 50 W x 4
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Greater than 70 dB
Frequency response (+0, -1dB) 20 Hz-20 kHz
Input voltage range @ RCA inputs Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Current consumption (Standby) Less than 1mA
Current consumption (Idle) Less than 700-750mA
Fuse rating 35A
Recommended fuse type(s) AFS, AGU or MaxiFuse
Min. copper power/Ground wire gauge 4 AWG wire
Protection circuits Input under/over voltage Over temperature Output short circuit

What's in the Box:
  • 4 channel amplifier with BLUETOOTH technology
  • Remote controller
  • Surface mounting cup with four mounting screws
  • Four amplifier mounting screws
  • Flush mounting kits
  • Flush mounting template for the remote controller
  • Waterproof gasket for the remote controller
  • Documentation
