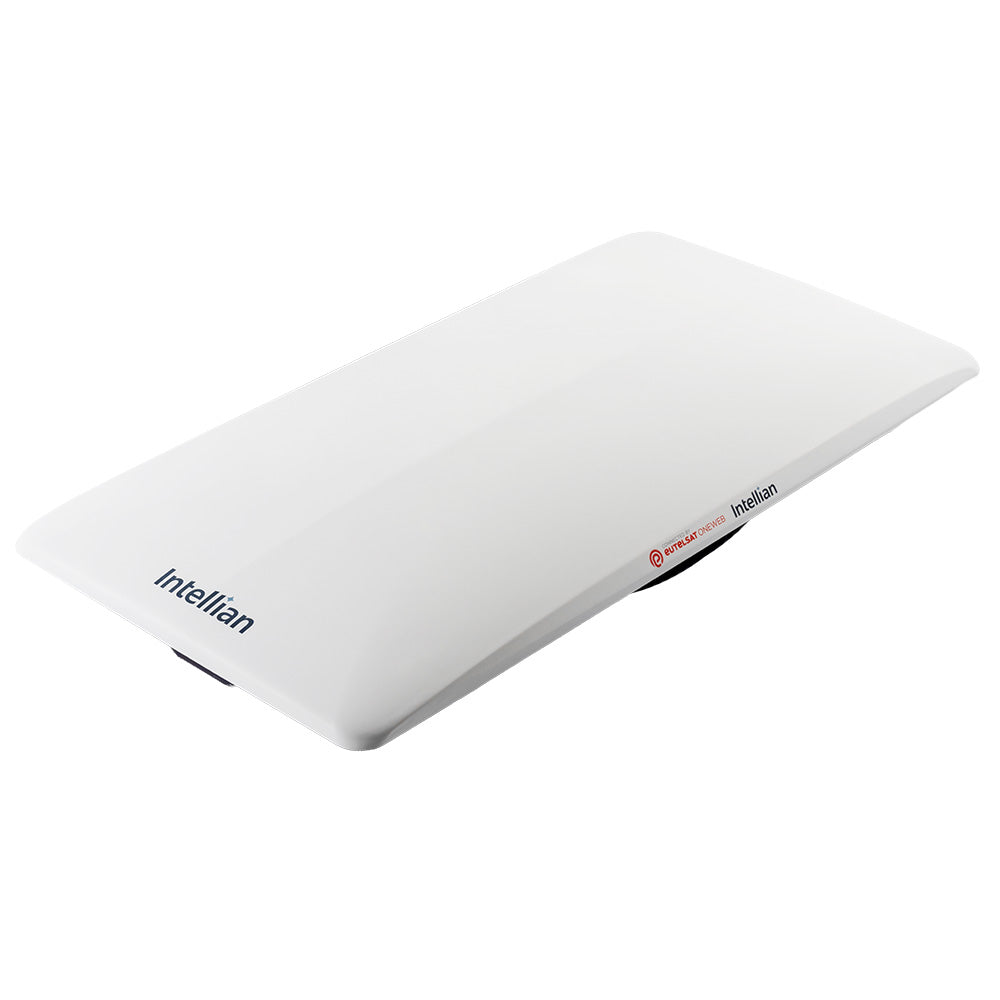

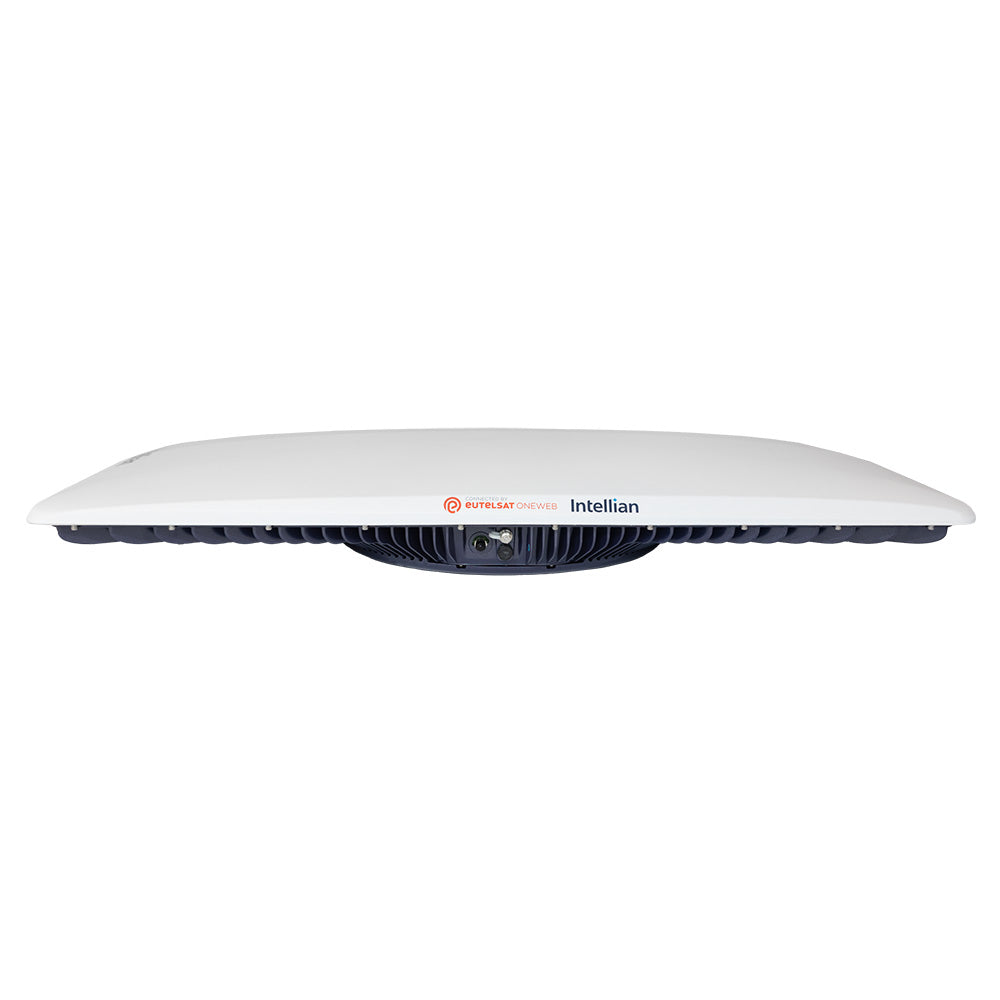

Intellian Enterprise Land Mobile Outdoor Antenna Unit MPN - MS-OW11FFG

Enterprise Land Mobile Outdoor Antenna Unit

The OW11FV is the ideal Flat Panel user terminal for Government and Transportation markets, delivering low-latency, high-speed connectivity and reliability for critical communications, safety, route planning, and entertainment.

Features:

• Optimized Performance - Utilizing Intellian’s innovative antenna design, the OW11FV delivers the maximum throughput allowed on the OneWeb network. Offering the highest link margin, performance is guaranteed even over scan and at the lowest elevation angles, ensuring that the highest demands of land mobile customers.
• Seamless Connectivity - The OW11FV features Intellian’s advanced tracking technology, extended scan range, and blockage mitigation that improve connection reliability and availability even while in motion. Delivering the best performance at scan, the innovative flat panel technology facilitates smooth, reliable handovers, which ensure seamless and uninterrupted connectivity.
• Harsh Environment Performance - The OW11FV is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to +131 °F).
• Simplified Installation - Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
• Customer Network Exchange - Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Enterprise Flat Panels, there are three CNX variants offered for specific deployments: CNX-WIFI, CNX-RACK, and CNX-MOBILITY.
• Easily Deployable System - The lightweight design and optimal form factor of the OW11FV enable easy installation by a single person. Paired with Intellian’s Mobile mount adapter kit, the UT is easily installed on vehicles of any size. Installation is further simplified through the use of combined power and data over a single coaxial cable connecting the outdoor and CNX unit. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.

Technical Specifications:

• Panel Dimensions - 38.2" x 19.7" x 5.1"
• Panel Weight - 45.1 lbs
• Operating Temperature - -40 °C to +55 °C (-40 °F to +131 °F)
• EIRP (Dual Carrier) - +36.6 dBW
• Ingress - 1P66
• G/T - 10.7 dB/K
• Interface - F-Type Port SMA Port (R-GNSS)
• Peak Downlink Data Rate - 195 Mbps
• Peak Uplink Data Rate - 32 Mbps

Manufacturer Part Number: MS-OW11FFG
