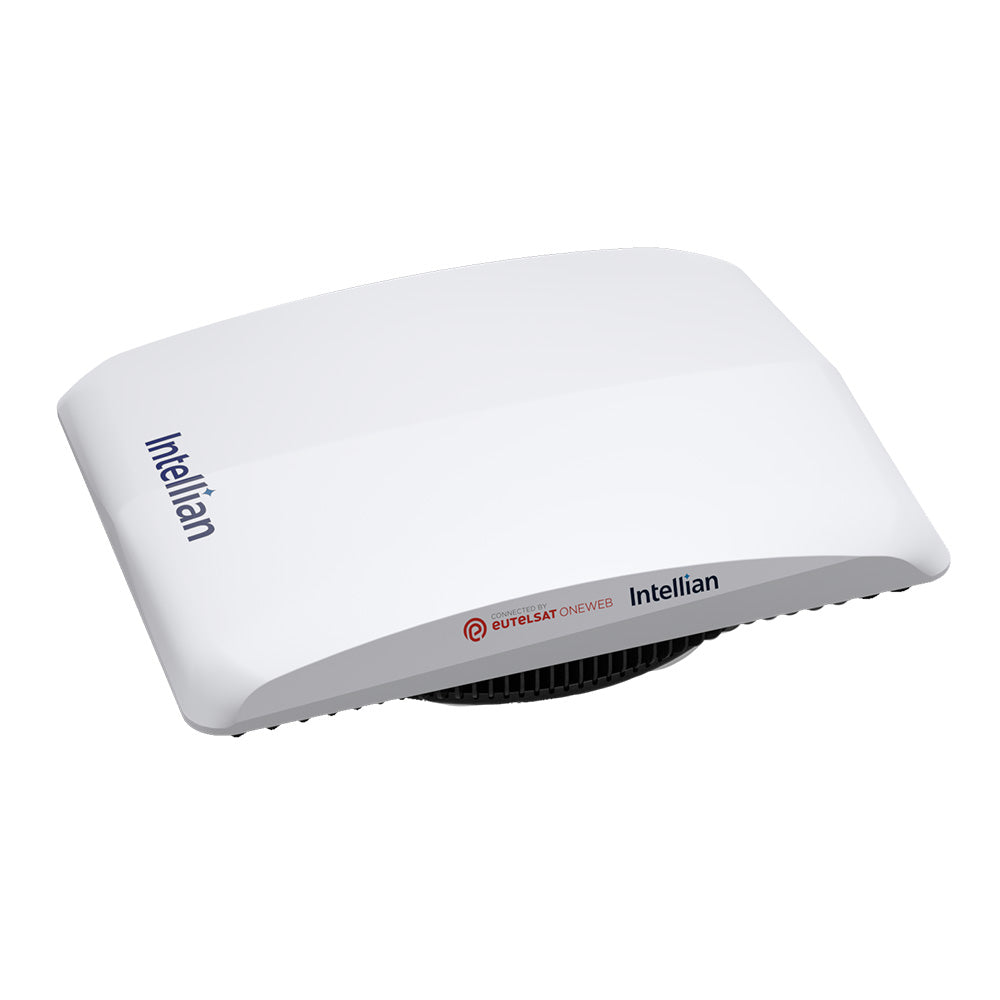

Intellian Compact Maritime Outdoor Antenna Unit MPN - OS-OW10HF

Compact Maritime Outdoor Antenna Unit

The OW10HM is the ideal Flat Panel UT for the fishing and leisure markets, offering a small, lightweight, and sleek form factor, designed to outperform existing connectivity solutions.

Features:

• Optimized Performance - Utilizing Intellian’s innovative antenna design, the OW10HM delivers optimal performance in a compact form factor, making it the ideal connectivity solution for use cases that are SWaP-constrained. The resulting solution provides the user experience and service levels for maritime applications that customers expect.
• Seamless Connectivity - The OW10HM features Intellian’s advanced tracking technology, improving connection reliability and availability, even on heavy seas and at the lowest elevation angles encountered in equatorial regions. Ensuring minimal loss over scan, the innovative flat panel technology facilitates smooth, reliable handovers, which ensure seamless and undisrupted connectivity.
• Harsh Environment Performance - The OW10HM is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to +131 °F).
• Simplified Installation - Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
• Customer Network Exchange - Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Compact Flat Panels, there are four CNX variants offered for specific deployments: CNX-BB, CNX-WIFI, CNX-RACK, and CNX-MOBILITY.
• Easily Deployable System - The lightweight design and compact form factor of the OW10HM enable easy installation by a single person. Paired with Intellian’s Maritime mount adapter, the UT is easily installed on pole, mast, and pedestal mounts commonly used in the Maritime market. Installation is further simplified through the use of combined power and data over a single coax cable connecting the below-deck CNX units. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.

Technical Specifications:

• Panel Dimensions - 22" x 17.7" x 4.7"
• Panel Weight - 26.9 lbs
• Operating Temperature - -40 °C to +55 °C (-40 °F to +131 °F)
• EIRP (Dual Carrier) - +36.6 dBW
• Ingress - 1P66
• G/T - 9 dB/K
• Interface - F-Type Port SMA Port (R-GNSS)
• Peak Downlink Data Rate - 75 Mbps
• Peak Uplink Data Rate - 14 Mbps

Manufacturer Part Number: OS-OW10HF
