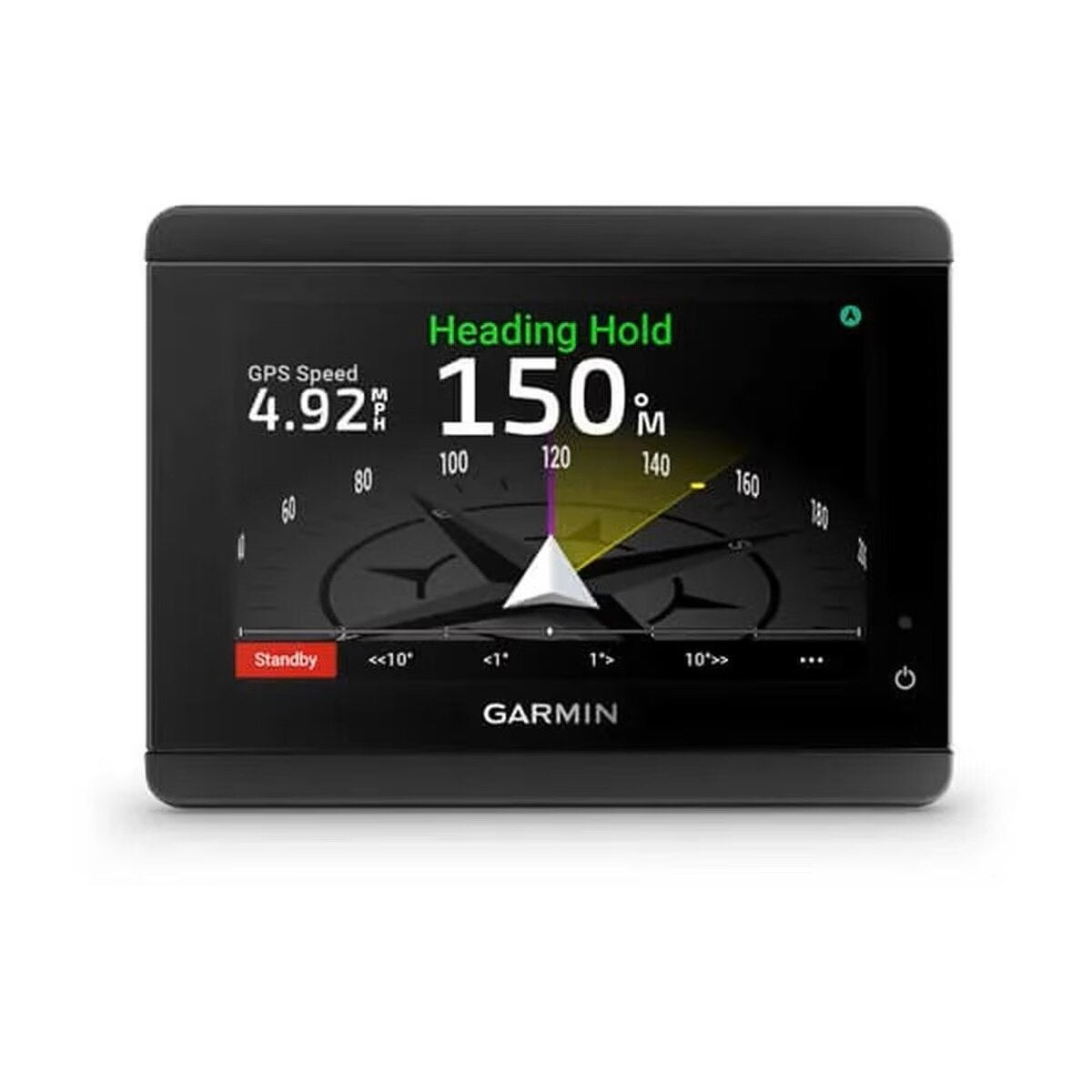

Garmin GHC50 Marine Autopilot Control Display - Remanufactured
Model: 010-N2731-00When you’re ready to discover paradise, the GHC 50 autopilot instrument helps you navigate with ease — wherever the waters take you.
The bright 5" WVGA touchscreen not only looks good; its anti-glare display makes navigation simple and hassle free.
With a premium industrial design and edge-to-edge glass display, the GHC 50 autopilot instrument aligns perfectly with your high-end GPSMAP® chartplotters, creating a stunning look for your helm.
The choice is yours — control your autopilot instrument via wire or a wireless remote for a navigation experience that works best for you.
If you have multiple compatible Garmin devices on your boat, you can share information among them for a more integrated marine system.
GHC 50 works with all GHP™ Reactor autopilots, select quatix® multisport marine smartwatches, the Garmin autopilot remote and GRID™ 20 remote.
If used as a stand-alone autopilot, wireless connectivity only provides software updates; use the Garmin Marine Network for sharing settings and other connected features
Specifications| General | Dimensions |
|---|---|
| 4.13" x 4.51" x 2.01" (105 x 140 x 51 mm) | Touchscreen |
| yes | Display resolution |
| 800 x 480 | Display type |
| WVGA | Weight |
| 11.57 oz (328 g) | Water Rating |
| IPX7 | Mounting options |
| Flat or flush | Connections |
| NMEA 2000 ports | 1 |
| Garmin Marine Network ports | 1 |
| ANT+ (Connectivity) | Yes |
| Garmin Wi-Fi Network (local connection) | yes |
| Electrical Features | Power input |
| 9 to 32 Vdc | Typical current draw at 12 VDC |
| 220 mA | Maximum current draw at 12 VDC |
| 400 mA | Maximum power usage at 10 VDC |
| 4.9 W |
