EGIS RT Battery Terminal Mount Fuse Block 4 Circuit
EGIS RT Battery Terminal Mount Fuse Block 4 Circuit

EGIS RT Battery Terminal Mount Fuse Block 4 Circuit MPN - 8023

$37.20
$37.20
$37.20
(-0%)

MPN : 8023

SKU: EME8023
Availability: In stock
Product type: Electrical
Please hurry! Only 7 left in stock
Subtotal: $37.20
EGIS RT Battery Terminal Mount Fuse Block 4 Circuit

EGIS RT Battery Terminal Mount Fuse Block 4 Circuit MPN - 8023

$37.20
EGIS RT Battery Terminal Mount Fuse Block 4 Circuit

EGIS RT Battery Terminal Mount Fuse Block 4 Circuit MPN - 8023

$37.20
Description
Description
x

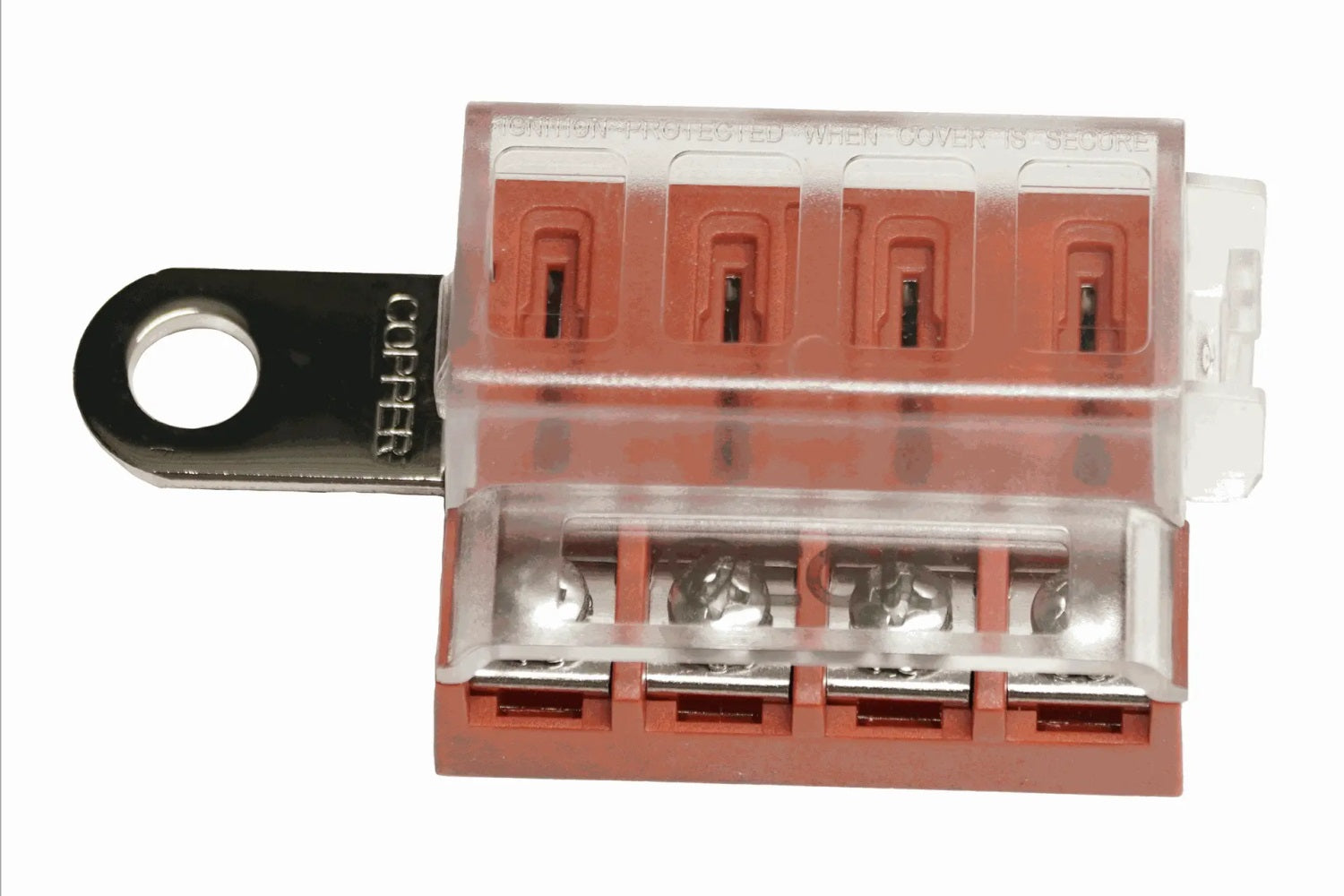

EGIS RT Battery Terminal Mount Fuse Block 4 Circuit

Model: 8023
  • Compact battery terminal mount inline 4 position fuse block has single side wire entry for tight installations spaces.
  • Harsh Environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options
  • Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.
  • Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.
  • Supports SAE Circuit Protection Standards for thermal/short circuit events.
  • Includes Latching Protective Cover with integrated label recesses for easy circuit/fuse identification
  • Circuit identification labels included for easy circuit/fuse diagnosis.
Specifications
CONTINUOUS CURRENT Per Circuit (AMPS) 30
Maximum Current (Entire Block) Amps 100
Nominal Voltage 12/24Vdc
MAX VOLTAGE (VDC) 60
Hardware Material Stainless Steel
Input Terminal Size M5-0.8

What's in the Box:
  • 8023 4-Circuit Fuse Block
  • Circuit identification labels
    • c
