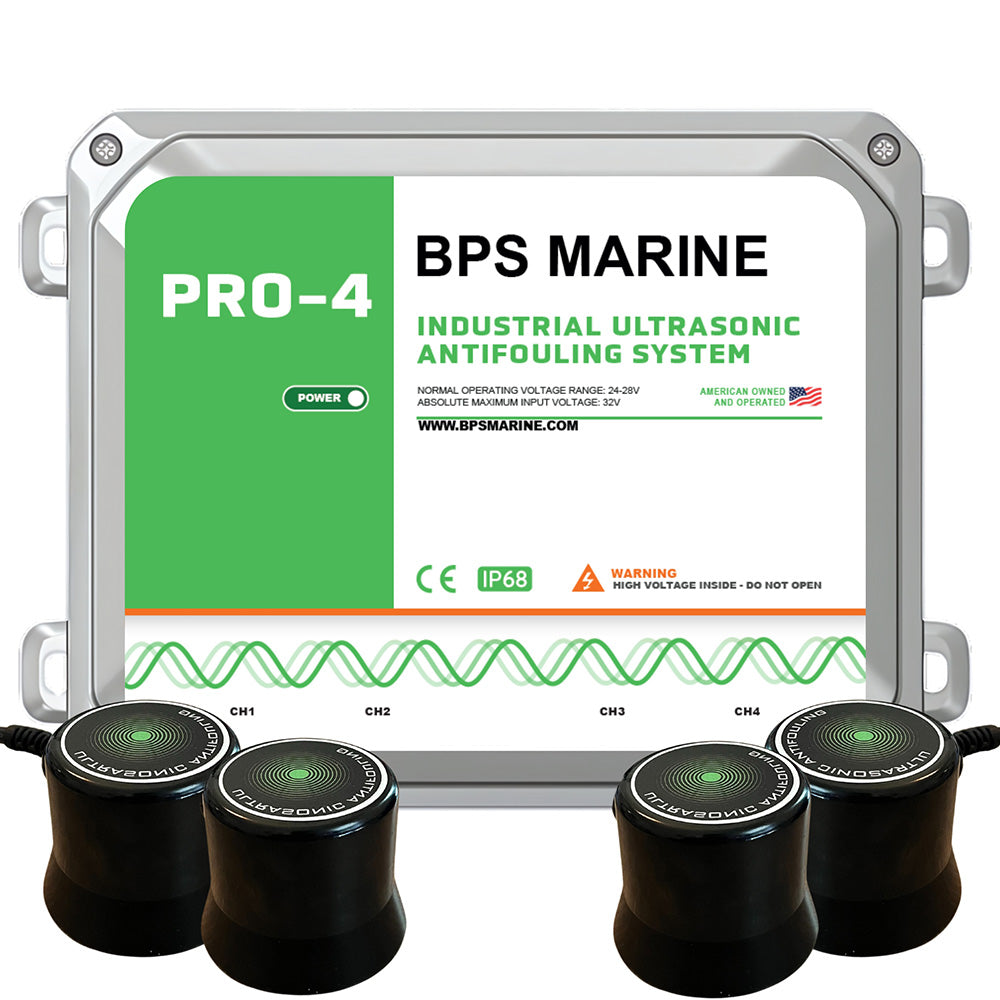

BPS Marine PRO-4 4-Transducer Ultrasonic Antifouling System - 24VDC
BPS Marine PRO-4 4-Transducer Ultrasonic Antifouling System - 24VDC

BPS Marine PRO-4 4-Transducer Ultrasonic Antifouling System - 24VDC MPN - 24V-PRO-4

$2,899.00
$3,188.90
$2,899.00

MPN : 24V-PRO-4

SKU: 112024
Availability: In stock
Product type: Boat Outfitting | Antifouling Systems
Please hurry! Only 4 left in stock
Subtotal: $2,899.00
BPS Marine PRO-4 4-Transducer Ultrasonic Antifouling System - 24VDC

BPS Marine PRO-4 4-Transducer Ultrasonic Antifouling System - 24VDC MPN - 24V-PRO-4

$3,188.90 $2,899.00
BPS Marine PRO-4 4-Transducer Ultrasonic Antifouling System - 24VDC

BPS Marine PRO-4 4-Transducer Ultrasonic Antifouling System - 24VDC MPN - 24V-PRO-4

$3,188.90 $2,899.00

    BPS Marine PRO-4 4-transducer Ultrasonic Antifouling System (MPN 24V-PRO-4) is a 24VDC preventative system for compatible hulls, drives, rudders, stabilizers and other underwater structures. Manufacturer guidance lists hull coverage up to 60 feet, subject to hull construction, underwater geometry and correct transducer placement.

    The controller runs from the vessel’s 24V house-battery system and drives 4 submersible transducers using a multi-frequency 20kHz–42kHz sweep. The package includes one PRO-4 controller with integrated power cable, 4 submersible ultrasonic transducers with 15 ft of attached cable each, 2 additional 15 ft extension cables, 1 epoxy kit and a printed installation and operation manual. The hull must be clean before commissioning, and the system is intended to operate continuously.

    Related Products

    Example product title
    $2,899.00
    $3,188.90
    $2,899.00
    Example product title
    $2,899.00
    $3,188.90
    $2,899.00
    Example product title
    $2,899.00
    $3,188.90
    $2,899.00
    Example product title
    $2,899.00
    $3,188.90
    $2,899.00
    Example product title
    $2,899.00
    $3,188.90
    $2,899.00
    Example product title
    $2,899.00
    $3,188.90
    $2,899.00
    Example product title
    $2,899.00
    $3,188.90
    $2,899.00
    Example product title
    $2,899.00
    $3,188.90
    $2,899.00
    Example product title
    $2,899.00
    $3,188.90
    $2,899.00
    Example product title
    $2,899.00
    $3,188.90
    $2,899.00

    Choose the BPS Marine PRO-4 with Confidence

    Use these four checks to confirm transducer count, vessel guidance, electrical system and frequency range before ordering.

    1. 4 Transducers

      Includes 4 submersible ultrasonic transducers with 15 ft of attached cable each.

    2. Up to 60 ft

      Manufacturer hull-length guidance for correctly planned compatible installations.

    3. 24VDC System

      Runs from a continuously available 24V house-battery or distribution-panel supply.

    4. 20–42kHz Sweep

      Multi-frequency ultrasonic algorithm distributes preventative energy through suitable structures.

    BPS Marine PRO-4 industrial ultrasonic antifouling system with 24V controller and four transducers, designed for compatible boat hulls up to 60 ft plus selected drives, rudders, and stabilizers.

    4-Transducer Coverage for Hulls Up to 60 ft

    The BPS Marine PRO-4 combines a 24V controller with 4 ultrasonic transducers for planned coverage of compatible hulls up to 60 ft. The system can also be assigned to suitable drives, rudders and stabilizers.

    Map the complete underwater structure before installation. Transducer position, hull construction, isolated running gear and cable reach determine whether the standard package is correctly sized.

    Compare PRO-4 Coverage and Installation Requirements

    Choose the PRO-4 by more than vessel length. Confirm underwater area, hull material, isolated drives or rudders, controller location, cable routes and continuous 24V power before ordering.

    Selection Point BPS Marine PRO-4
    Manufacturer part number 24V-PRO-4
    System voltage 24V DC
    Included transducers 4
    Published hull guidance Up to 60 ft
    Published active draw 1 A
    Frequency sweep 20kHz–42kHz
    Attached cable 15 ft per transducer
    Additional extensions 2 × 15 ft
    Epoxy kits 1

    Coverage and Installation Checks for BPS Marine PRO-4

    Confirm the vessel, mounting surfaces, cable routes and continuous 24V power before installation.

    1. Map the Coverage

      Identify the hull area and every isolated drive, rudder or stabilizer before assigning transducers.

    2. Prepare the Bond

      Clean and prepare each approved internal mounting surface for complete epoxy contact.

    3. Route the Cables

      Plan every 15 ft attached cable run and the 2 included extension cables.

    4. Clean and Commission

      Remove existing growth, connect protected 24V power and keep the system operating continuously.

    BPS Marine PRO-4 Reviews

    No verified exact-model customer reviews are included in this import for the BPS Marine PRO-4. Keep future feedback attached only to this exact 4-transducer 24V configuration.

    Comprehensive hull coverage for a 50 ft yacht

    Installing the BPS Marine PRO-4 24VDC system on our 50-foot vessel made a dramatic difference. The four-transducer design provides complete coverage from bow to stern along the running surface. Marine growth and barnacles have been practically eliminated since installation.
    David Miller Verified buyer
    August 2026

    Efficient 24V operation with simple epoxy mounting

    The 24V-PRO-4 kit was complete with clear placement instructions. Epoxy bonding the four transducers directly inside the hull was straightforward. Operating on 24VDC keeps power consumption low on our house battery bank while keeping the bottom clean.
    Christopher Evans Verified buyer
    July 2026

    Substantial reduction in bottom maintenance costs

    After four months in service during heavy fouling season, the hull remains smooth and free of algae or shell growth. Having four transducers ensures no dead zones on larger hulls. It has already saved us money on diver hull-cleaning fees.
    Mark Thompson Verified buyer
    June 2026

    Solid build quality and reliable performance

    The control module and transducers feel heavy-duty and marine-grade. Following the surface prep guidance for mounting the transducers in key structural zones paid off. The hull stays clean without needing harsh chemicals.
    Brian Reynolds Verified buyer
    May 2026

    Excellent ultrasonic system for larger vessels

    Upgrading to the PRO-4 4-transducer configuration was the right decision for full coverage. The system arrived well-packaged with detailed wiring diagrams. Running performance and fuel efficiency have stayed consistent thanks to a clean bottom.
    Steven Vance Verified buyer
    April 2026

    BPS Marine PRO-4 FAQs

    How many transducers are included with the PRO-4?
    The package includes 4 submersible ultrasonic transducers, each with 15 ft of attached cable.
    What size hull can the PRO-4 protect?
    Manufacturer guidance lists compatible hulls up to 60 ft. Final coverage depends on underwater area, construction, geometry and transducer placement.
    How much power does the PRO-4 use?
    The manufacturer lists a total active draw of 1 A for this 4-transducer configuration. Follow the current manual for circuit sizing and protection.
    Does the PRO-4 remove existing growth?
    No. It is a preventative system. Existing marine growth must be removed before installation and continuous operation begins.
    Does ultrasonic antifouling need to run continuously?
    Yes. Manufacturer guidance calls for 24/7 operation to help prevent the biofilm from establishing.
    Does installation require drilling a thru-hull?
    No. The transducers are bonded to suitable internal hull surfaces with the supplied epoxy. Correct preparation and location remain essential.
    Can the system protect drives and rudders?
    Yes, compatible drives, rudders and stabilizers can be included in the plan. Isolated structures may require dedicated transducer placement.
