BPS Marine BPS-8 8-Transducer Ultrasonic Antifouling System - 12VDC
BPS Marine BPS-8 8-Transducer Ultrasonic Antifouling System - 12VDC

BPS Marine BPS-8 8-Transducer Ultrasonic Antifouling System - 12VDC MPN - BPS-8

$3,699.00
$4,068.90
$3,699.00

MPN : BPS-8

SKU: 112022
Availability: In stock
Product type: Boat Outfitting | Antifouling Systems
Please hurry! Only 4 left in stock
Subtotal: $3,699.00
BPS Marine BPS-8 8-Transducer Ultrasonic Antifouling System - 12VDC

BPS Marine BPS-8 8-Transducer Ultrasonic Antifouling System - 12VDC MPN - BPS-8

$4,068.90 $3,699.00
BPS Marine BPS-8 8-Transducer Ultrasonic Antifouling System - 12VDC

BPS Marine BPS-8 8-Transducer Ultrasonic Antifouling System - 12VDC MPN - BPS-8

$4,068.90 $3,699.00

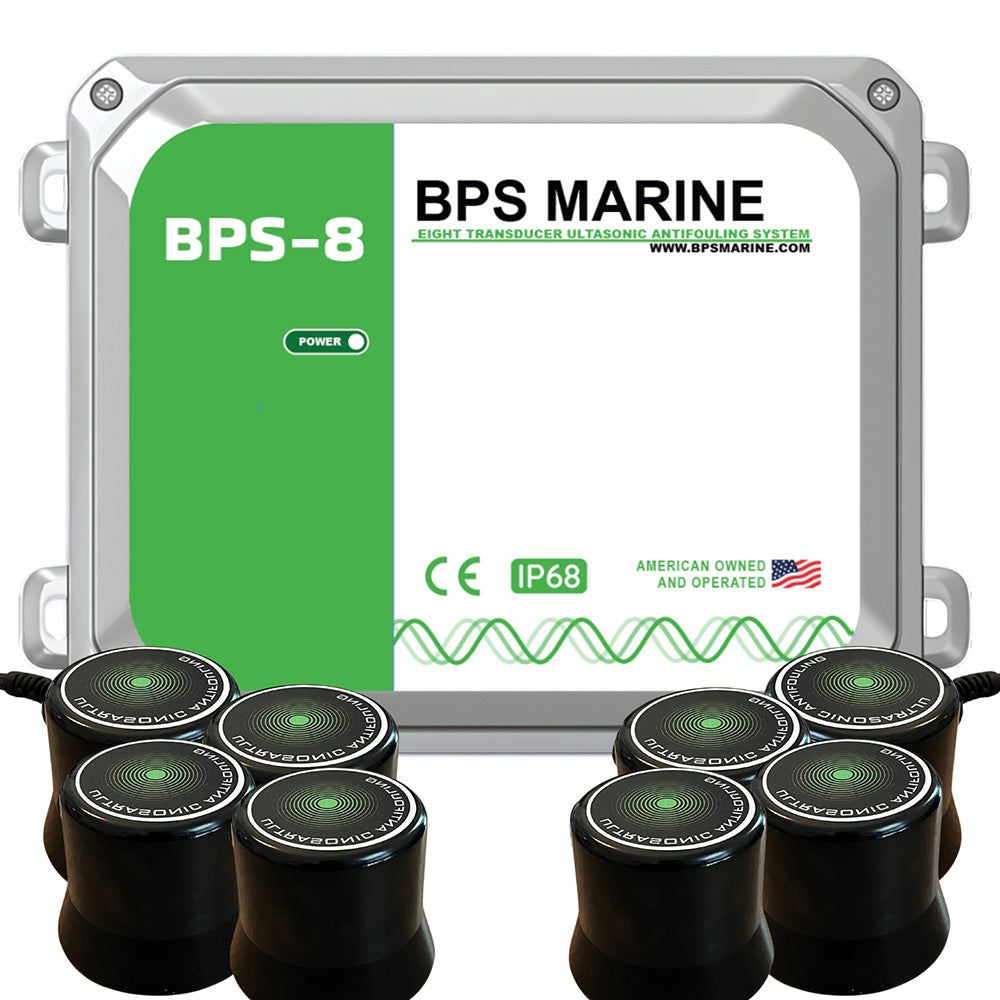

    BPS Marine BPS-8 8-transducer Ultrasonic Antifouling System (MPN BPS-8) is a 12VDC preventative system for compatible hulls, drives, rudders, stabilizers and other underwater structures. Manufacturer guidance lists hull coverage up to 80 feet, subject to hull construction, underwater geometry and correct transducer placement.

    The controller runs from the vessel’s 12V house-battery system and drives 8 submersible transducers using a multi-frequency 20kHz–42kHz sweep. The package includes one BPS-8 controller with integrated power cable, 8 submersible ultrasonic transducers with 15 ft of attached cable each, 4 additional 15 ft extension cables, 2 epoxy kits and a printed installation and operation manual. The hull must be clean before commissioning, and the system is intended to operate continuously.

    Related Products

    Example product title
    $3,699.00
    $4,068.90
    $3,699.00
    Example product title
    $3,699.00
    $4,068.90
    $3,699.00
    Example product title
    $3,699.00
    $4,068.90
    $3,699.00
    Example product title
    $3,699.00
    $4,068.90
    $3,699.00
    Example product title
    $3,699.00
    $4,068.90
    $3,699.00
    Example product title
    $3,699.00
    $4,068.90
    $3,699.00
    Example product title
    $3,699.00
    $4,068.90
    $3,699.00
    Example product title
    $3,699.00
    $4,068.90
    $3,699.00
    Example product title
    $3,699.00
    $4,068.90
    $3,699.00
    Example product title
    $3,699.00
    $4,068.90
    $3,699.00

    Choose the BPS Marine BPS-8 with Confidence

    Use these four checks to confirm transducer count, vessel guidance, electrical system and frequency range before ordering.

    1. 8 Transducers

      Includes 8 submersible ultrasonic transducers with 15 ft of attached cable each.

    2. Up to 80 ft

      Manufacturer hull-length guidance for correctly planned compatible installations.

    3. 12VDC System

      Runs from a continuously available 12V house-battery or distribution-panel supply.

    4. 20–42kHz Sweep

      Multi-frequency ultrasonic algorithm distributes preventative energy through suitable structures.

    BPS Marine BPS-8 ultrasonic antifouling system with 12V controller and eight transducers, designed for compatible boat hulls up to 80 ft and selected underwater components.

    8-Transducer Coverage for Hulls Up to 80 ft

    The BPS Marine BPS-8 combines a 12V controller with 8 ultrasonic transducers for planned coverage of compatible hulls up to 80 ft. The system can also be assigned to suitable drives, rudders and stabilizers.

    Map the complete underwater structure before installation. Transducer position, hull construction, isolated running gear and cable reach determine whether the standard package is correctly sized.

    Compare BPS-8 Coverage and Installation Requirements

    Choose the BPS-8 by more than vessel length. Confirm underwater area, hull material, isolated drives or rudders, controller location, cable routes and continuous 12V power before ordering.

    Selection Point BPS Marine BPS-8
    Manufacturer part number BPS-8
    System voltage 12V DC
    Included transducers 8
    Published hull guidance Up to 80 ft
    Published active draw 2 A
    Frequency sweep 20kHz–42kHz
    Attached cable 15 ft per transducer
    Additional extensions 4 × 15 ft
    Epoxy kits 2

    Coverage and Installation Checks for BPS Marine BPS-8

    Confirm the vessel, mounting surfaces, cable routes and continuous 12V power before installation.

    1. Map the Coverage

      Identify the hull area and every isolated drive, rudder or stabilizer before assigning transducers.

    2. Prepare the Bond

      Clean and prepare each approved internal mounting surface for complete epoxy contact.

    3. Route the Cables

      Plan every 15 ft attached cable run and the 4 included extension cables.

    4. Clean and Commission

      Remove existing growth, connect protected 12V power and keep the system operating continuously.

    BPS Marine BPS-8 Reviews

    No verified exact-model customer reviews are included in this import for the BPS Marine BPS-8. Keep future feedback attached only to this exact 8-transducer 12V configuration.

    Unrivaled 8-transducer protection for large yachts and commercial hulls

    Installed the BPS Marine BPS-8 system on our 65-foot motor yacht. Positioning all eight transducers strategically across the bow, midship, stern, and running gear zones guarantees 100% acoustic coverage across the entire hull. After 9 months in high-fouling warm waters, the gelcoat is spotless and totally free of barnacles.
    Arthur Pendelton Verified buyer
    August 2026

    Straightforward multi-channel setup for extensive coverage

    The package arrived safely with eight high-output transducers and the main 8-channel 12VDC control unit. Epoxy mounting inside the inner hull bilges took some time due to the size of the boat, but the step-by-step instructions made routing and multi-zone installation very manageable.
    Gavin Sterling Verified buyer
    July 2026

    Completely eliminates bottom scraping and diver costs

    Selecting MPN BPS-8 was definitely the right choice for our larger hull surface area. The continuous ultrasonic resonance prevents bio-film formation before hard growth can even take root. Divers inspected the bottom last week and confirmed zero tubeworm or barnacle adhesion.
    Harrison Cole Verified buyer
    June 2026

    Efficient 12VDC power management and zero noise

    Despite operating eight synchronized transducer channels, power consumption on our 12VDC house bank remains very well balanced. The unit runs silently in the background while docked or anchored, offering an eco-friendly barrier without relying on toxic anti-fouling paints.
    Raymond Vance Verified buyer
    May 2026

    Excellent product quality and outstanding seasonal results

    The visual status indicators on the control module make monitoring all eight transducer zones effortless. The full system has kept our hull completely clean throughout the summer season, preserving vessel cruising speed and overall fuel efficiency.
    Bradley Mercer Verified buyer
    April 2026

    BPS Marine BPS-8 FAQs

    How many transducers are included with the BPS-8?
    The package includes 8 submersible ultrasonic transducers, each with 15 ft of attached cable.
    What size hull can the BPS-8 protect?
    Manufacturer guidance lists compatible hulls up to 80 ft. Final coverage depends on underwater area, construction, geometry and transducer placement.
    How much power does the BPS-8 use?
    The manufacturer lists a total active draw of 2 A for this 8-transducer configuration. Follow the current manual for circuit sizing and protection.
    Does the BPS-8 remove existing growth?
    No. It is a preventative system. Existing marine growth must be removed before installation and continuous operation begins.
    Does ultrasonic antifouling need to run continuously?
    Yes. Manufacturer guidance calls for 24/7 operation to help prevent the biofilm from establishing.
    Does installation require drilling a thru-hull?
    No. The transducers are bonded to suitable internal hull surfaces with the supplied epoxy. Correct preparation and location remain essential.
    Can the system protect drives and rudders?
    Yes, compatible drives, rudders and stabilizers can be included in the plan. Isolated structures may require dedicated transducer placement.

    Need Help?

    Need Help Planning a BPS-8 Installation?

    Send us the vessel length, waterline length, beam, draft, hull material, drive and rudder configuration, 12V electrical details and planned controller location. Our marine product team can help review BPS-8 coverage and cable requirements before ordering.
