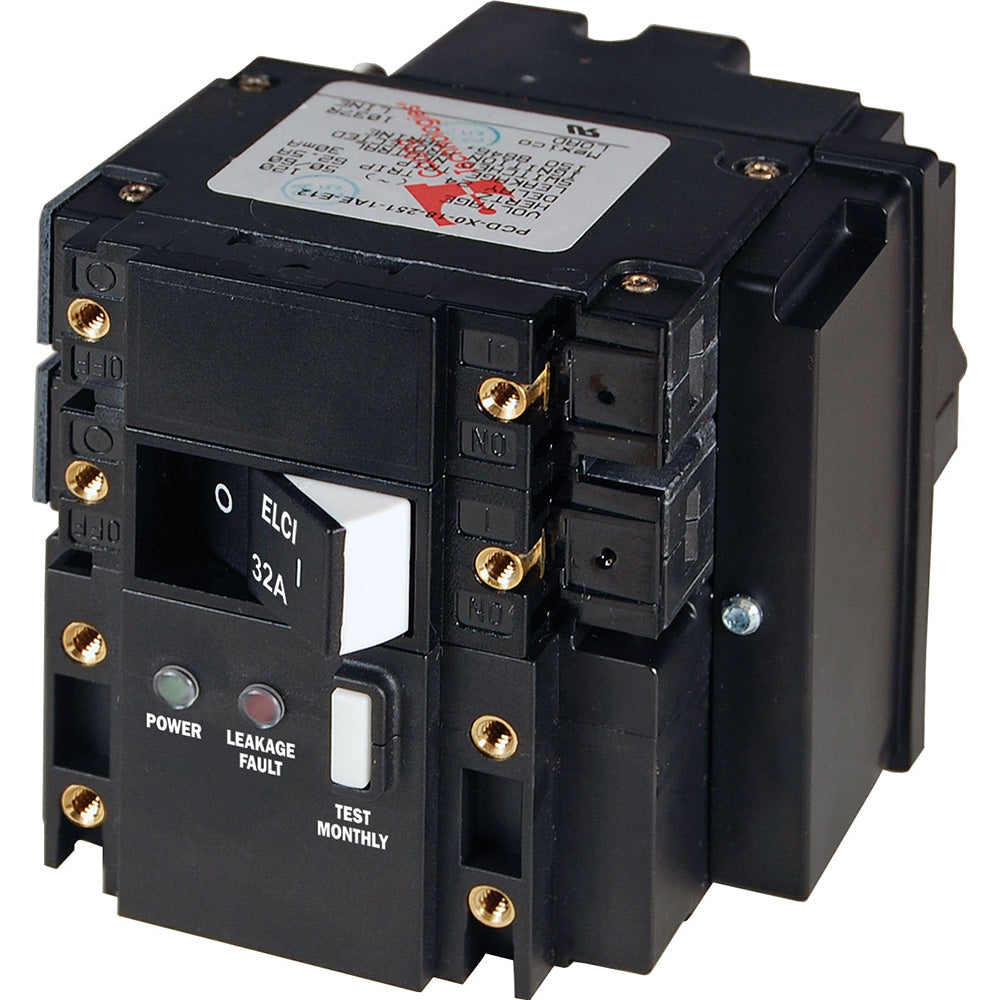

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 32A MPN - 3092

C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 32A

Features:

• Trips on short circuit, overload, or leakage to ground
• Front panel mount—installed in a power distribution panel

Specifications:

• Amperage: 32A
• Actuator Style: Flat actuator
• Poles: 2
• Ignition Protected: Yes
• Maximum Voltage: 240V AC per pole
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -35 degrees C
• Maximum Operating Temperature: 66 degrees C
• Leakage Trip Amps: 30mA
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6in-lb (0.68 Nm)
• Switching Cycles: 10000
• Weight: 1.05 lbs (0.48kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 3092
