Description
x- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine GradeTM resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size.
- Shrinks at 257 deg F/125 deg C.
- Operating temperature range 40 deg C to 110 deg C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
| #10 | 100 |
|---|---|
| 12-10 | 3-5 #8 100 312299 |
| 12-10 | 3-5 3/8 100 312699 |
| 12-10 | 3-5 5/16 100 312599 |
| 12-10 | 3-5 1/4 100 312499 |
| 16 - 14 | 1-2 1/4 100 311499 |
| 16 - 14 | 1-2 5/16 100 311599 |
| 16 - 14 | 1-2 3/8 100 311699 |
| 16 - 14 | 1-2 #8 100 311299 |
| 16 - 14 | 1-2 #10 100 311399 |
| 22 - 18 | 0.3-0.8 #10 100 310399 |
| 22 - 18 | 0.3-0.8 #8 100 310299 |
| 22 - 18 | 0.3-0.8 3/8 100 310699 |
| 22 - 18 | 0.3-0.8 6.4 100 310499 |
Product Identification

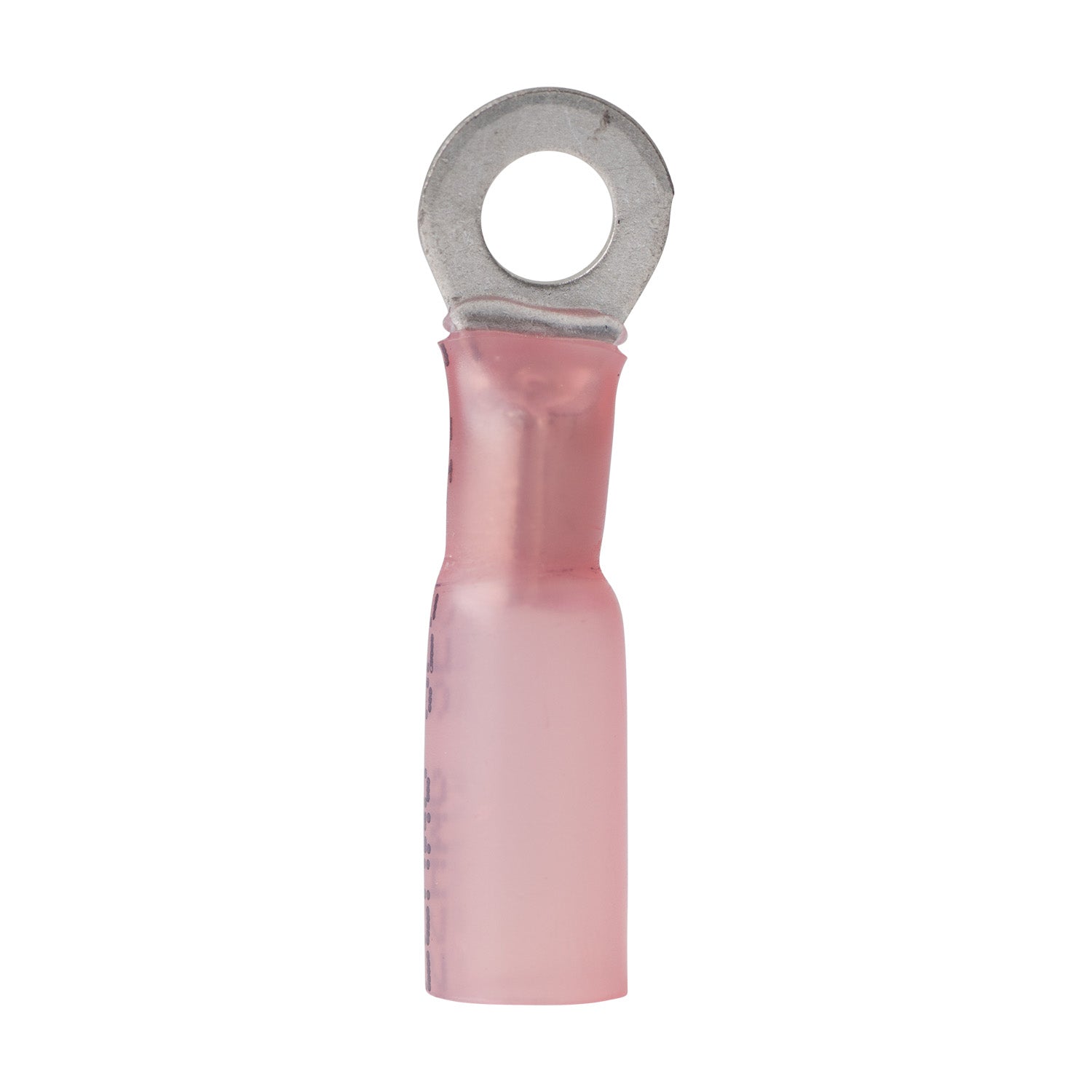

- Brand: Ancor
- Product type: Electrical
- Manufacturer part number: 310299
- SKU: ANC310299
- UPC/GTIN: 91887311006
