Transom Assembly vs Gimbal Housing: What Do You Need?
Transom assembly, transom plate and gimbal housing are sometimes used interchangeably while shopping, but they may describe different components or packages. Understanding what is included can prevent an incomplete or incorrect purchase.
Quick answer
A gimbal housing is generally an individual part of the external transom-side system. A complete transom assembly may include the outer housing, inner plate and additional steering, bell-housing, trim or installation components—but the exact package varies by listing.
If a listing does not clearly state what is included, contact Mariners Warehouse before ordering. For conversion-related applications, review the Alpha One Gen II Cobra conversion collection.
Why MerCruiser Transom Terminology Can Be Confusing
Online listings may use broad terms such as MerCruiser transom assembly, Alpha One Gen II gimbal housing assembly, transom plate, inner transom plate, outer transom assembly or complete gimbal assembly.
In some listings, “transom assembly” describes a multi-component package. In another listing, similar wording may describe only an outer housing or a partially assembled replacement.
The product description, included-components list, part number and application data should therefore take priority over informal terminology.
What Is a Transom Assembly?
A transom assembly is the system fitted through the boat’s transom to support the connection between the inboard engine installation and external sterndrive. Depending on how a product is packaged, it may include both inner and outer structural components.
A more complete package may also contain steering-related parts, trim components, the bell housing, bellows, bearing-related components, hardware or seals. These items should never be assumed unless they appear in the written included-components list.
If extensive corrosion, impact damage, wear or multiple missing components affect the existing system, a broader transom assembly replacement may be more appropriate than purchasing one isolated housing. The final repair path should be based on an inspection of the actual system.
What Is a Gimbal Housing?
The gimbal housing is generally associated with the external portion of the transom system. It supports components involved in mounting, steering and drive movement, but it should not automatically be treated as every component contained in a complete transom assembly package.
The term Alpha One Gen II gimbal housing assembly may describe a housing with certain installed parts, while another product may contain the housing alone. Carefully compare the written description, photographs and supplied hardware.
If the inner plate and other major components remain serviceable, the required repair may be narrower. If several parts are damaged, replacing only the gimbal housing may not provide everything needed.

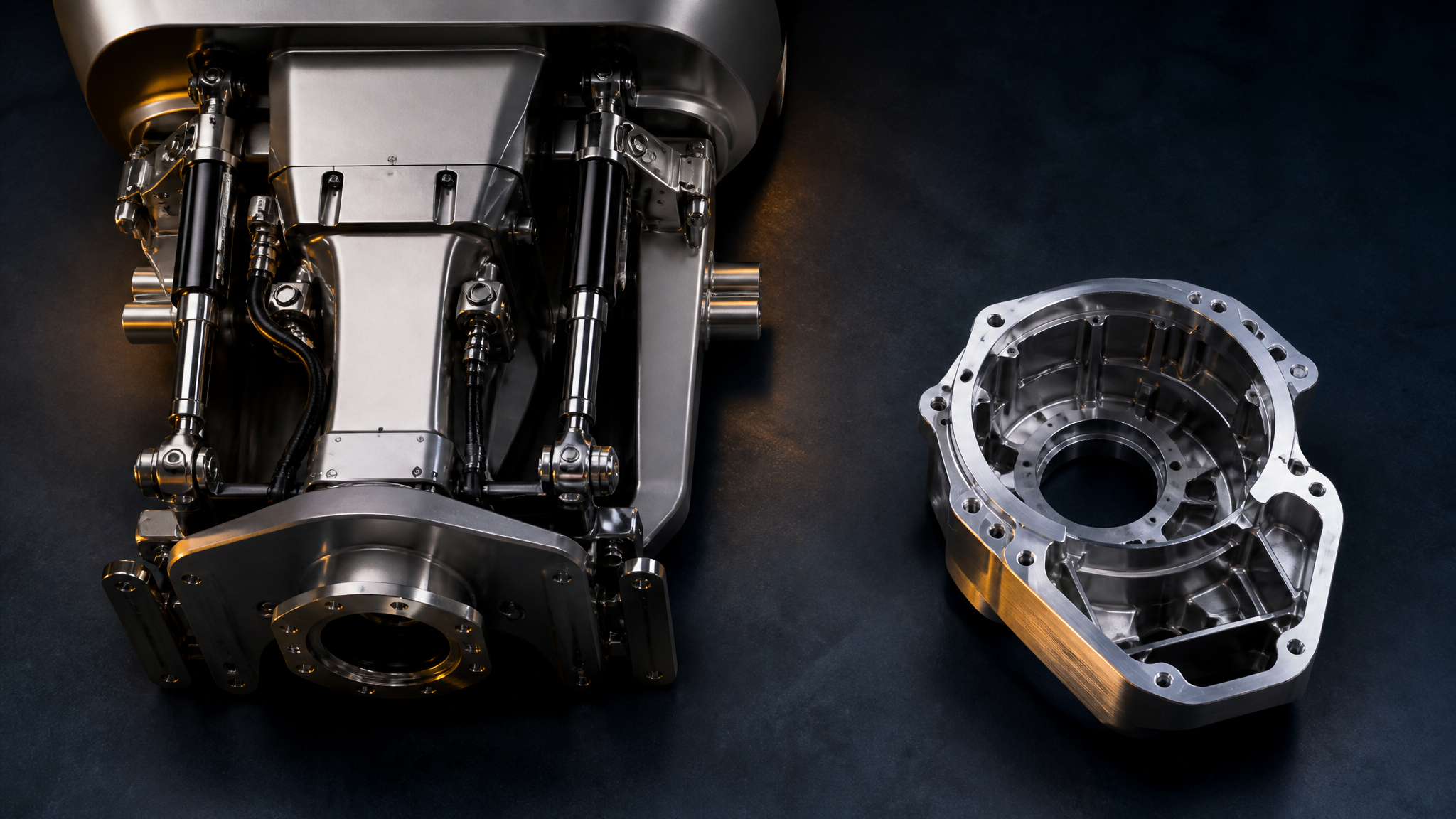

Gimbal Housing vs Transom Assembly Comparison
| Comparison Point | Gimbal Housing | Transom Assembly |
|---|---|---|
| General meaning | An external housing within the broader transom system | A broader system or multi-component replacement package |
| Inner transom plate | Usually should not be assumed | May be included, depending on the package |
| Bell housing | May be separate or included in a larger package | May be included, but requires confirmation |
| Trim components | Not automatically included | Package-dependent |
| Best buying method | Match the exact housing and included parts | Match the complete application and verify every included component |
This comparison explains why a search for gimbal housing vs transom assembly cannot always be answered by product terminology alone. The exact contents of the listing determine what you are actually buying.
Transom Plate vs Gimbal Housing
The phrase transom plate vs gimbal housing often refers to the distinction between an inner mounting component and an external housing component. These parts occupy different positions in the transom system and should not be treated as interchangeable.
When reviewing a replacement, determine whether the repair requires the inner plate, outer housing or a package containing both. Check the condition of the mounting areas, steering-related parts and surrounding components.
A qualified marine technician can inspect the complete system and determine whether an isolated component replacement or a broader assembly replacement is appropriate.
How to Determine What You Need
- Identify the damaged component. Determine whether damage is limited to one housing or affects multiple parts.
- Inspect the complete system. Check related components for wear, corrosion, impact damage or missing hardware.
- Collect serial and part numbers. Product terminology should be supported by verified identification.
- Confirm the drive generation. Verify whether the application is Alpha One Gen I, Alpha One Gen II or another drive family.
- Read the included-components list. Do not rely exclusively on the product photograph.
- Ask before ordering. Resolve unclear fitment or package details before making the purchase.
Information to include with your inquiry
Send the engine and drive serial information, transom identifiers, existing part numbers, a description of the damage and clear photos through our Contact Us page.
Avoid Ordering an Incomplete Assembly
Verify the product’s part number, fitment and included components before purchasing a gimbal housing, transom plate or complete transom assembly.
Transom Assembly and Gimbal Housing FAQ
Is a gimbal housing the same as a transom assembly?
Not necessarily. The gimbal housing is generally one component within the broader transom system, while a transom assembly listing may include several components.
Does a complete transom assembly include the inner plate?
It may, but included components vary. Verify the written product description rather than assuming the inner plate is supplied.
Does an Alpha One Gen II gimbal housing assembly include trim cylinders?
Trim cylinders should not be assumed unless they are specifically listed among the included components.
How can I confirm which assembly I need?
Document the damaged parts, drive generation, serial numbers and existing part numbers, then contact Mariners Warehouse for product-selection assistance.
Fitment notice: Component names and package contents can differ by listing. Always verify the product part number, application and included-components list before purchase or installation.
