Standard vs Counter-Rotation SE116 Sterndrives
SE116 Rotation Buying Guide
Standard vs Counter-Rotation SE116 Sterndrives
Standard rotation and counter rotation are application-specific sterndrive configurations. Confirming the required SE116 rotation is essential—especially for twin-drive boats and OMC Cobra conversion applications.
Rotation and gear ratio are separate specifications
Two SE116 sterndrives may have the same gear ratio but different rotation requirements. Verify both specifications before selecting a replacement or conversion sterndrive.
Browse modified SE116 sterndrives for Cobra conversion applications or contact Mariners Warehouse before ordering if the required rotation is unclear.
What Are Standard and Counter-Rotation Sterndrives?
A standard-rotation sterndrive is configured for the standard rotation specified for its intended application. An SE116 counter-rotation sterndrive is configured for the opposite propeller-shaft rotation used in an applicable counter-rotating setup.

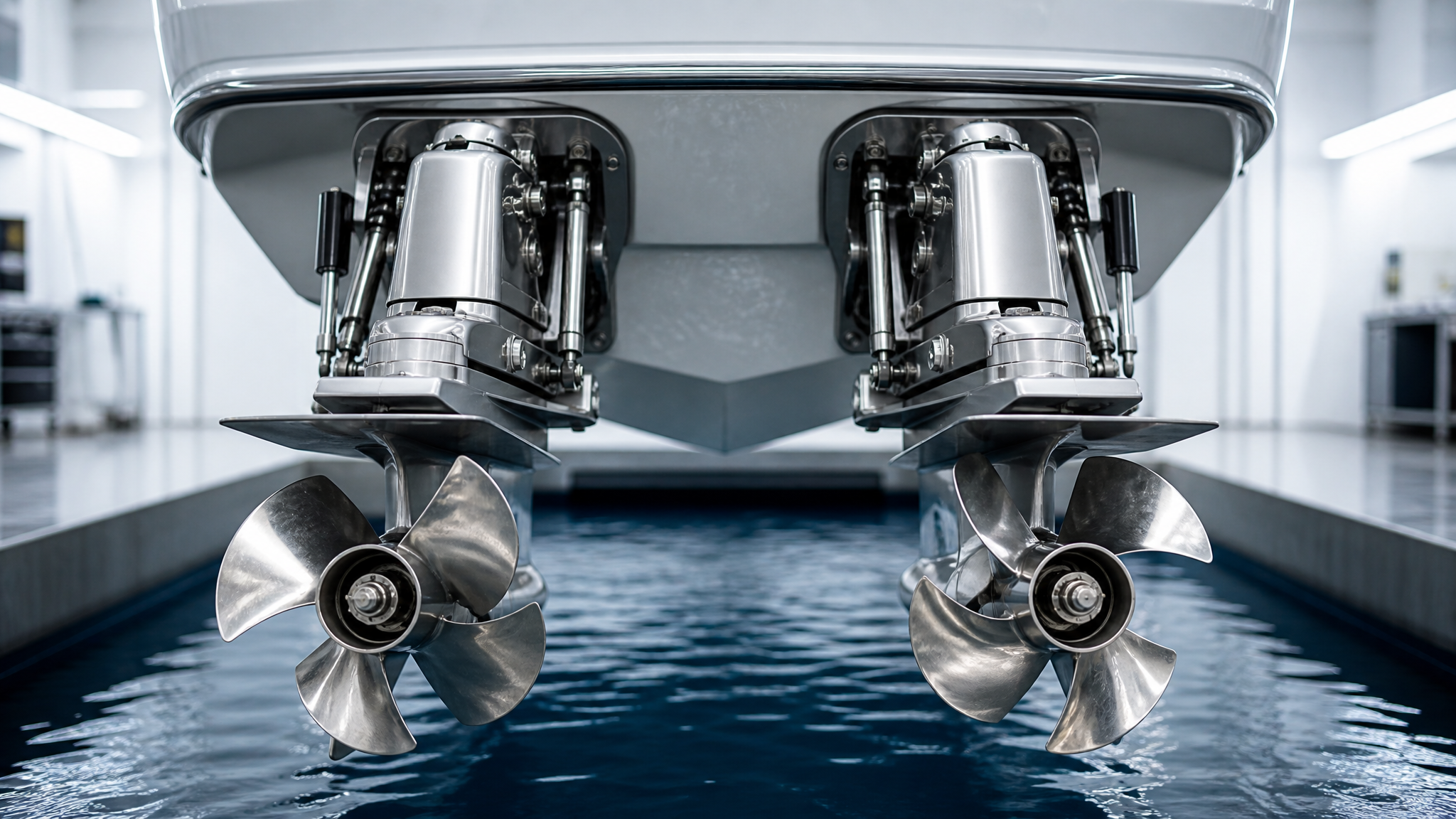

Counter-rotation configurations are commonly discussed in connection with twin-drive installations, where matched opposing rotation may be part of the boat’s designed propulsion arrangement. However, the required configuration must be verified from the actual boat and drive information.
Rotation should not be assumed from the drive’s external appearance. It should also not be selected only from the side of the boat without confirming how that particular installation was configured.
Standard vs Counter-Rotation Sterndrive Comparison
| Selection Point | Standard Rotation | Counter Rotation |
|---|---|---|
| Configuration | Standard application-specific propeller-shaft rotation | Opposite application-specific propeller-shaft rotation |
| Common selection context | Single-drive and applicable twin-drive installations | Applicable counter-rotating or matched twin-drive installations |
| Propeller requirement | Propeller must correspond with the specified rotation | Counter-rotation-compatible propeller selection is required |
| Can appearance confirm it? | No | No |
| Other specification required | Correct gear ratio and conversion application | Correct gear ratio and conversion application |
When comparing standard vs counter rotation sterndrives, treat rotation as a required fitment specification—not as an optional feature or performance upgrade.
Why SE116 Rotation Matters
The selected drive must correspond with the intended propeller rotation and the boat’s complete propulsion arrangement. This is particularly important when one drive in a twin installation is being replaced.
Ordering the wrong rotation can create a mismatch between the replacement drive, propeller and intended installation. For this reason, both the ratio and rotation should be confirmed before purchasing an OMC Cobra counter-rotation or standard-rotation conversion drive.
If you are replacing only one drive in a twin setup, identify the configuration of the existing drive being replaced and verify how it relates to the remaining drive. Avoid assuming that port or starboard position alone provides a universal answer.
Rotation in an OMC Cobra Conversion Application
An OMC Cobra conversion adds another fitment layer because the selected SE116 must be appropriate for the modified conversion application as well as the required ratio and rotation.
A product being described as modified for Cobra conversion does not by itself confirm whether the boat requires standard or counter rotation. Choose the exact configuration only after reviewing the original system.
Use the dedicated Alpha One Gen II applications modified for Cobra conversion collection to review available options.
How to Verify the Required Sterndrive Rotation
Gather the following information before choosing an SE116 counter-rotation or standard-rotation drive:
- Drive model and identification: Record tags, serial information and visible markings.
- Original rotation designation: Use dependable documentation or confirmed drive information.
- Single or twin installation: State how many drives are installed.
- Drive position: For twin installations, identify which drive is being replaced.
- Other drive information: If one twin drive remains installed, record its identification and rotation details.
- Propeller information: Record available part numbers, markings and confirmed rotation information.
- Gear ratio: Verify the required SE116 ratio separately.
- Conversion details: Explain whether the boat already has the applicable Cobra conversion components.
Do not rely on propeller appearance alone
If the identification is unclear, send the available drive, propeller and installation information through our Contact Us page.
Common Rotation Selection Mistakes
- Assuming every single-drive boat uses the same configuration. Verify the actual application.
- Ordering from the side of the boat alone. Port and starboard position should be considered with confirmed rotation information.
- Confusing gear ratio with rotation. These are separate specifications and both must be correct.
- Identifying rotation only from a photo. Use proper identification or dependable application documentation.
- Replacing one twin drive without documenting the other. Record both sides of the existing setup before ordering.
Confirm Rotation Before You Buy
Review the available modified SE116 Cobra conversion configurations or ask for assistance if you cannot confirm whether the application requires standard or counter rotation.
Standard vs Counter-Rotation SE116 FAQ
What is an SE116 counter-rotation sterndrive?
It is an SE116 configured for the opposite propeller-shaft rotation required by an applicable counter-rotating installation.
Can standard and counter-rotation sterndrives use the same gear ratio?
Ratio and rotation are separate specifications. A ratio match alone does not confirm the required rotation.
Can I identify rotation from the side of a twin-drive boat?
Do not rely on side position alone as a universal rule. Confirm the actual drive configuration and installation information.
Where can I get help confirming SE116 rotation?
Send your drive identification, ratio, propeller details and installation photos through the Mariners Warehouse contact page.
Fitment note: Rotation, ratio and conversion compatibility must be confirmed for the specific application. This general guide should not replace product-specific fitment verification or professional installation guidance.
