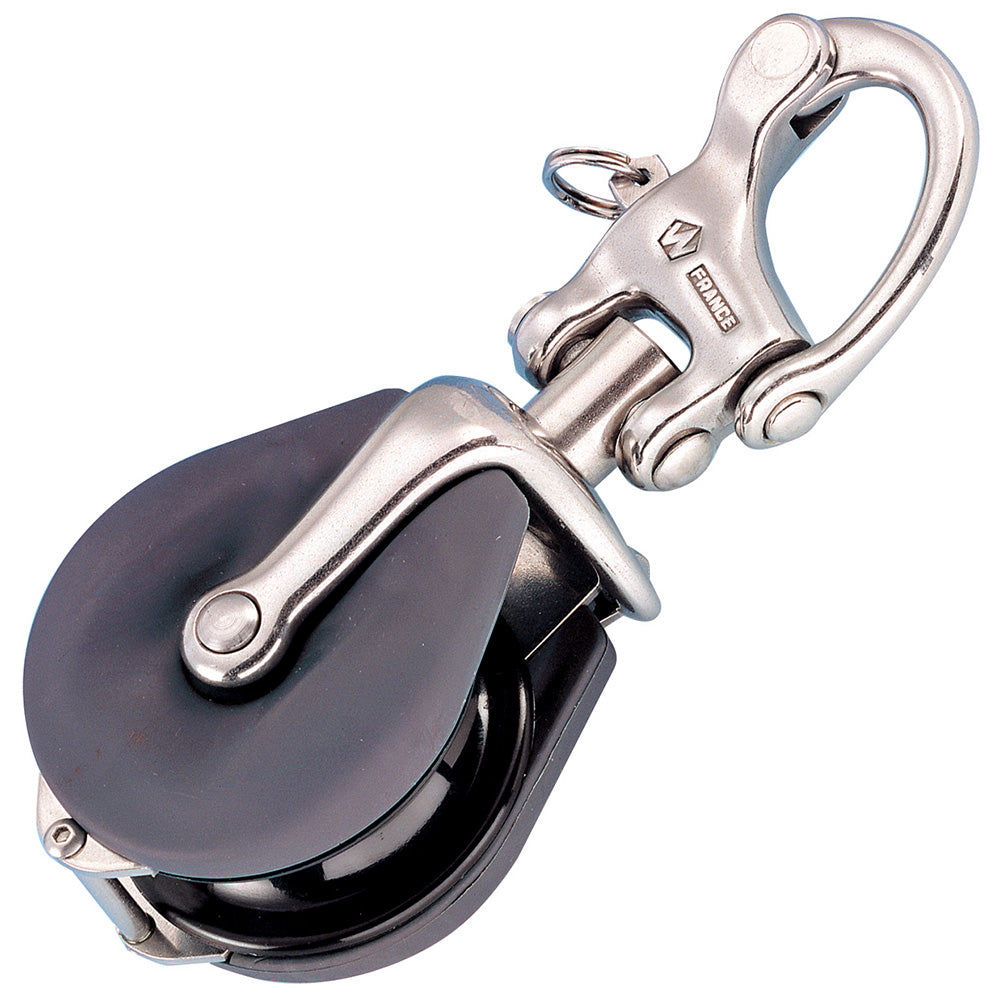

Wichard Snatch Block w/Snap Shackle - Max Rope Size 18mm (23/32") MPN-35500

Snatch Block with Snap Shackle - Max Rope Size 18mm (23/32")

Features:

• Free rotation thanks to snap shackle
• Very strong closing system
• Easy opening by simply pulling on the plunger pin
• Shock and scratch-resistant thanks to the elastomer molded cheeks

Applications:

• Changing sheets
• Spinnaker sheet deflector blocks

Materials:

• HR 17.4 PH forged stainless steel arm
• Elastomer molded cheeks
• Composite sheave

Specifications:

• Rope size: (inch) 23/32" / (mm) 18
• Length: (inch) 6 7/64" / (mm) 155
• Width: (inch) 2 21/64" / (mm) 59
• Thickness: (inch) 1 59/64" / (mm) 49
• Working Load: (lb) 2640 / (kg) 1200
• Breaking Load: (lb) 5510 / (kg) 2500
• Weight: (lb) 0.913 / (g) 414

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
