Description
Description
x

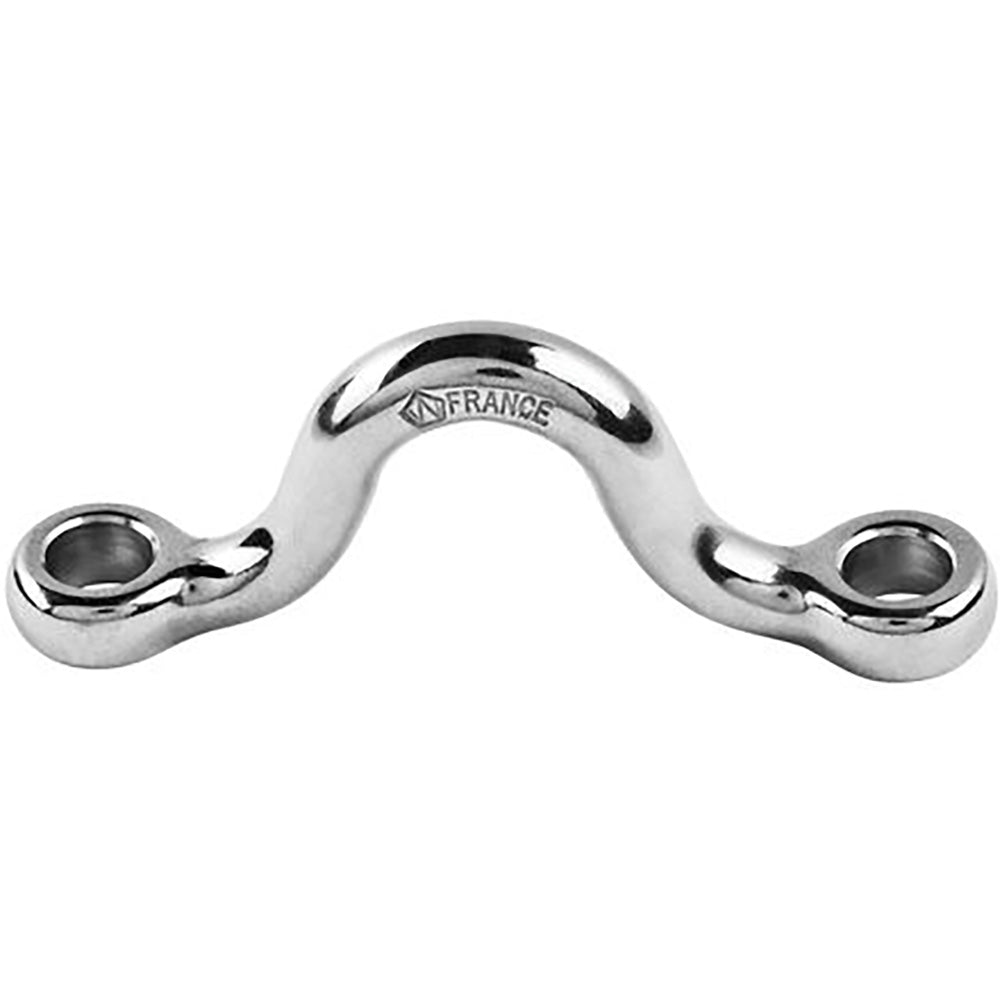

Eye strap - 10mm Diameter - 25/64" - 78mm Spacing - 3-5/64"

Features:

  • Complete range of drop-forged saddles with high-quality stainless steel (316L)
  • Outstanding strength
  • The round shape reduces the wear of the components connected to them (straps, ropes...)

Applications:

  • Fastening applications
  • Attachment of straps & cordage

Specifications:

  • Materials: 316L stainless steel grade
  • Breaking load: (lb) 15430 / (kg) 7000
  • Weight: (lb) 0.165 / (g) 75

Dimensions:

  • A: (inch) 25/32" / (mm) 20
  • B: (inch) 1 1/32" / (mm) 26
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 3 5/64" / (mm) 78

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
