Veratron LinkUp Intelligent Temperature & Pressure
Veratron LinkUp Intelligent Temperature & Pressure

Veratron LinkUp Intelligent Temperature & Pressure MPN-B00070501

$292.82
$266.20
$292.82
(--10%)

MPN : B00070501

SKU: CWR-93698
Availability: In stock
Product type: Gauges
Please hurry! Only 3 left in stock
Subtotal: $292.82
Veratron LinkUp Intelligent Temperature & Pressure

Veratron LinkUp Intelligent Temperature & Pressure MPN-B00070501

$266.20 $292.82
Veratron LinkUp Intelligent Temperature & Pressure

Veratron LinkUp Intelligent Temperature & Pressure MPN-B00070501

$266.20 $292.82
Description
Description
x

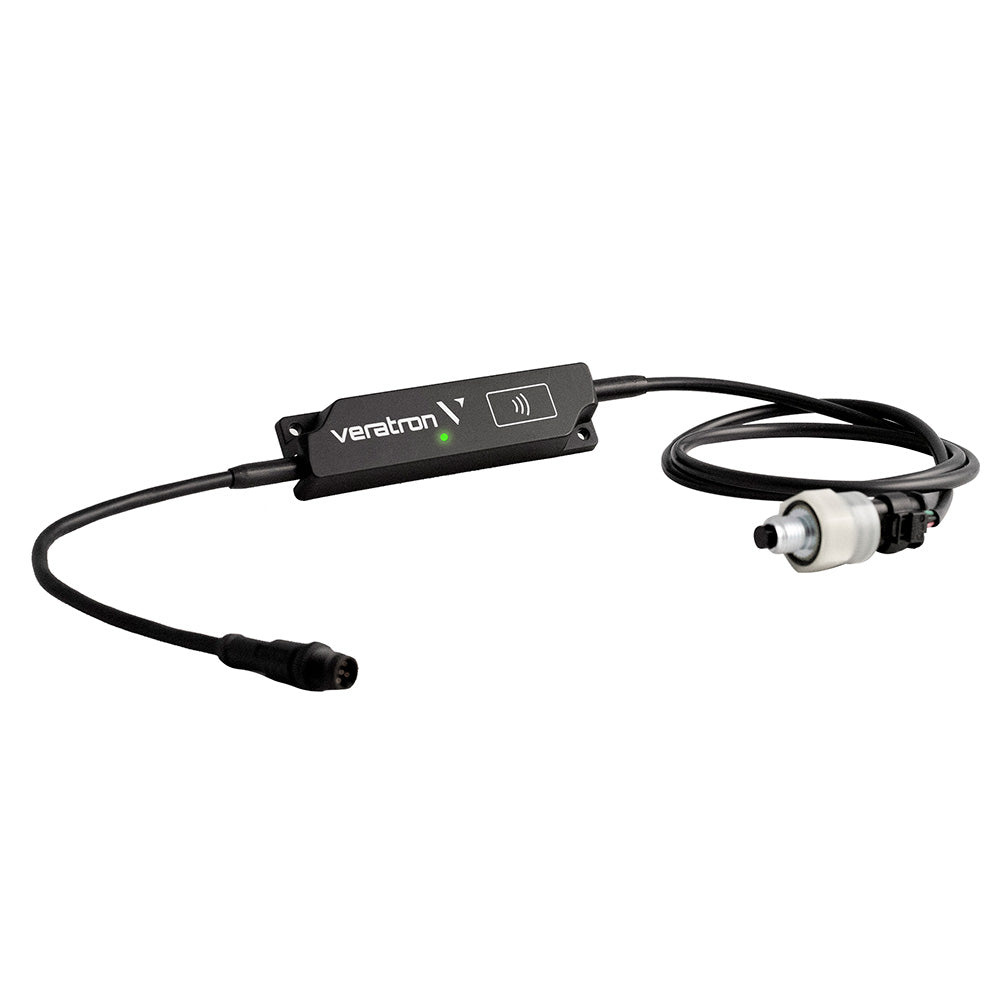

LinkUp Intelligent Temperature & Pressure

This Sensor measures simultaneously the engine oil's temperature and pressure while providing the data to the LinkUp, which translates it to the NMEA 2000® standard.

Features:

  • Interface to the new electronic 2-in-1 sensor
  • Oil Temperature and Pressure in a single sensor
  • Rugged and reliable design derived from the automotive field
  • ASIC-controlled sensor
  • PWM (Pulse Width Modulated) output to transmit both pressure and temperature

Technical Specifications:

  • M12 mounting thread
  • IP 69/K protection class
  • 5V power feed provided by the LinkUp
  • Temperature accuracy ± 1°K in the 135 °C – 160 °C range
  • Pressure accuracy ± 0.2 bar (range 0.5 –3 bar), ± 0.1 bar below and ± 0.3 bar above
  • Temperature range: -40 °C + 160 °C
  • Pressure range: 0.5 to 10.5 bar
  • 1M cable length
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
