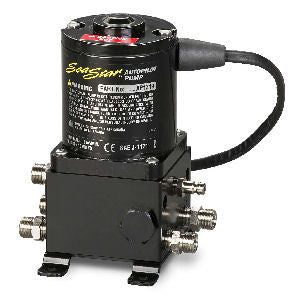

Seastar AP1233 Type 2 Pump 12v 110 Cu In/Min
Seastar AP1233 Type 2 Pump 12v 110 Cu In/Min

Seastar AP1233 Type 2 Pump 12V 110 Cu in/Min MPN - AP1233

$847.99
$847.99
$847.99
(-0%)

MPN : AP1233

SKU: TELAP1233
Availability: In stock
Product type: Autopilots
Please hurry! Only 1 left in stock
Subtotal: $847.99
Seastar AP1233 Type 2 Pump 12v 110 Cu In/Min

Seastar AP1233 Type 2 Pump 12V 110 Cu in/Min MPN - AP1233

$847.99
Seastar AP1233 Type 2 Pump 12v 110 Cu In/Min

Seastar AP1233 Type 2 Pump 12V 110 Cu in/Min MPN - AP1233

$847.99
Description
Description
x

The Seastar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in two different pump sizes (type 1 & type 2).

AUTOPILOT ? KEY FEATURES

  • Long life DC Motor (i.e. long life brushes)

  • Compact design

  • Simplified installation

  • Low power consumption

  • ABYC, CE?s and J1171 compliant

  • Superior corrosion resistance

  • Quiet operation

  • All mounting bracket displacement included

Voltage 12 volt
Fittings Compatible w/ Standard Seastar Hose - Thread 9/16 in X 24 UNEF
Length 24 in
Gauge 12 awg
Connector None - Bare Leads
Oil Compatibility Seastar Steering Fluid (MIL 5606)
Weight 4.9 lbs (2.2 kg)
Pump Sizes Type 1: 60 in3/min (no-load)
Maximum Pressure 1000 psi
Typical Current Draw 12V Type 1: 4 ? 8 amps
(Depending on Application) 12V Type 2: 5 ? 11 amps
Type 1 4.9 in3 - 14 in3
Type 2 14 in3 - 21 in3

Product Identification

  • Brand: Seastar
  • Product type: Autopilots
  • Manufacturer part number: AP1233
  • SKU: TELAP1233
  • UPC/GTIN: 731957898005
