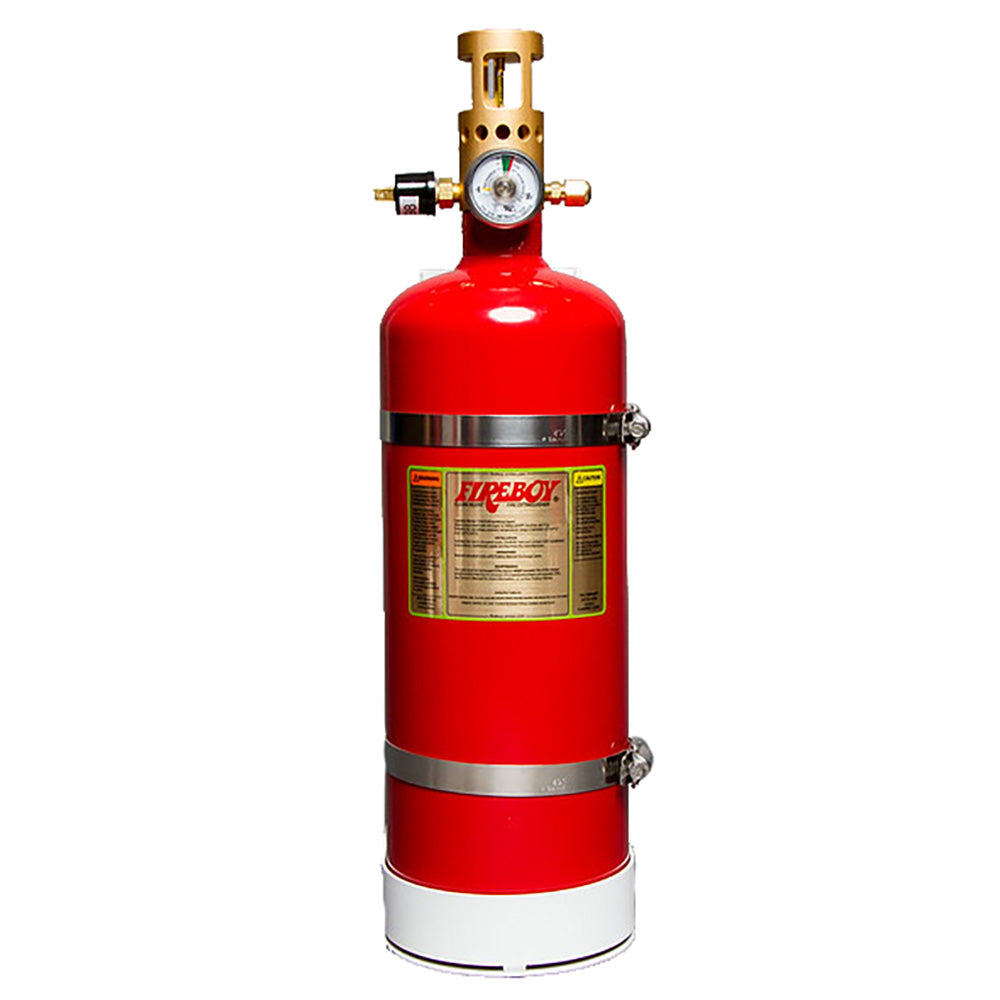

Fireboy-Xintex Automatic Vertical Fire Extinguisher w/Heavy Duty Bracket - 225 Cubic Feet Volume Protected MPN-CG0225NVC-F

Automatic Vertical Fire Extinguisher with Heavy Duty Bracket - 225 Cubic Feet Volume Protected

This fire extinguisher provides clean agent fire suppression and is meant to be mounted vertically with the heavy-duty bracket.

Features:

• Discharge is automatic at 175 degrees F (79 degrees C) for round-the-clock engine compartment fire protection
• Total flooding of the engine compartment in less than 10 seconds for fast smothering of the fire
• FK-5-1-12 clean extinguishing agent leaves no harmful residue to clean up
• Easy to read color coded pressure gauge on the cylinder also identifies the “charged/discharged” status
• Coverage from 25 ft³ to 1,800 ft³ in a broad array of increments provides maximum coverage at the lowest cost
• Integrated shelf bracket mounting system
• Up to 4,000 ft³ available with GA FK-5-1-12 Systems
• Rugged industrial-designed pressure gauge ensures trouble-free performance
• International system approvals (FM, USCG, CE, RINA, BV)
• FK-5-1-12 clean extinguishing agent is approved for marine use worldwide (EPA SNAP, European)
• Approved for Class B fires in engine compartments, machinery spaces, and similar industrial applications
• Many marine insurance providers offer a discount to boaters who install a fixed fire extinguisher system (contact your insurer for details)

CG Series:

• Automatic discharge only (@ 175 degrees F / 79 degrees C)
• Engine compartments up to 1,000 ft³ (28.3 m³)
• Heavy-duty mounting bracket
• Helm display

Specifications:

• Volume Protected: 225ft³ / 6.4 m³
• Diameter: 6.3 in. / 160mm
• Total Height: 18.7 in. / 476mm
• Agent Weight: 12.1 lbs. / 5.5 kgs
• Shipping Weight: 32 lbs. / 14.3 kgs
• System Pressure: 360 psi @70 degrees F
