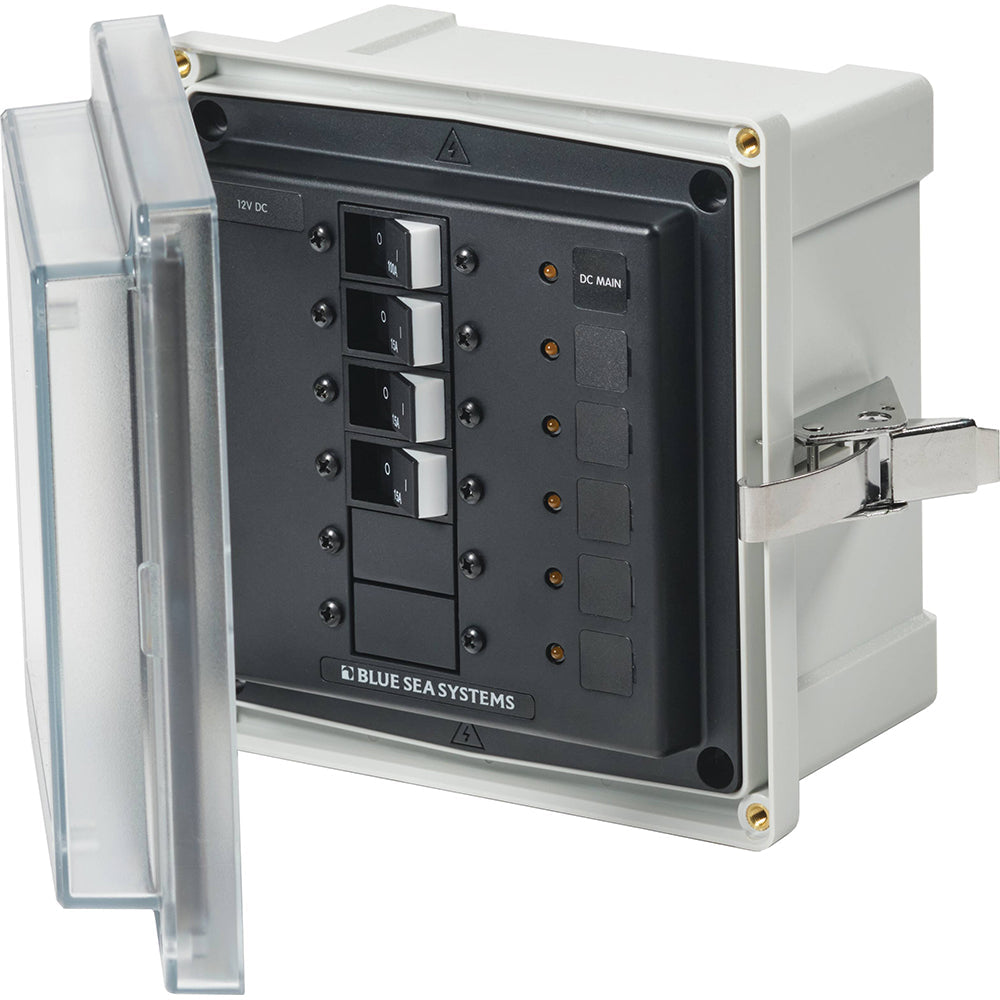

Blue Sea 3133 - SMS Panel Enclosure w/Main & 3 Branch (12/24V) - 12/24V DC MPN-3133

3133 - SMS Panel Enclosure with Main & 3 Branch (12/24V) - 12/24V DC

The 3133-panel enclosure for DC circuit breakers and other large frame devices.

Features:

•  Blank apertures for custom breaker loading
• Glass-filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands
• LED lights for backlighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 1 x 12/24V DC Main and 3 x Branch 12/24V DC (15A)
  • Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
  • Dimensions  (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
  • LEDs Installed - 6 x Amber ON indicating 12/24V DC

In the Box:

• 3133 Enclosure
• Glands x 6
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual
